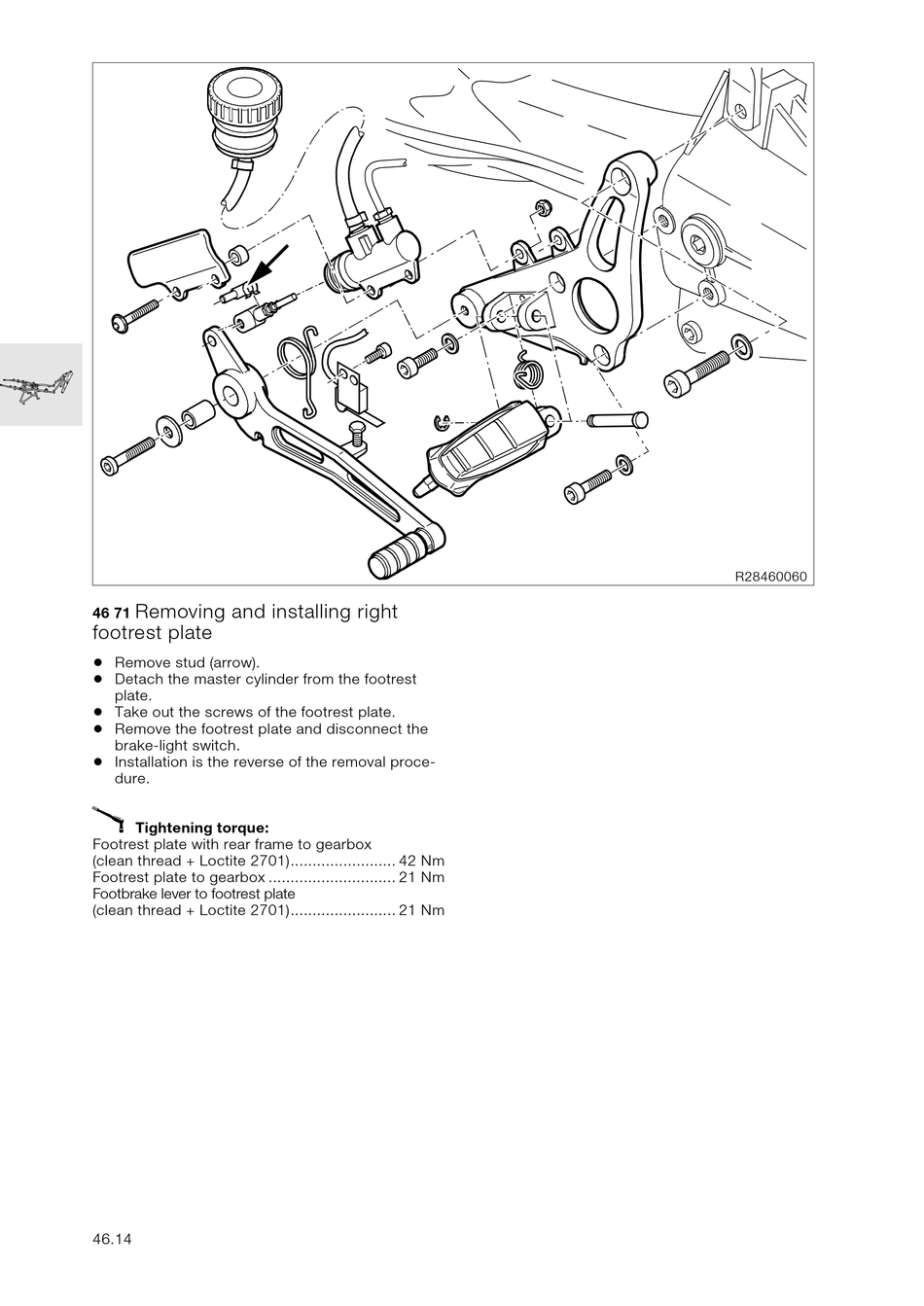

Removing and installing right
46 71
footrest plate
•
Remove stud (arrow).
•
Detach the master cylinder from the footrest
plate.
•
Take out the screws of the footrest plate.
•
Remove the footrest plate and disconnect the
brake-light switch.
•
Installation is the reverse of the removal proce-
dure.
X
Tightening torque:
Footrest plate with rear frame to gearbox
(clean thread + Loctite 2701)........................ 42 Nm
Footrest plate to gearbox ............................. 21 Nm
Footbrake lever to footrest plate
(clean thread + Loctite 2701)........................ 21 Nm
