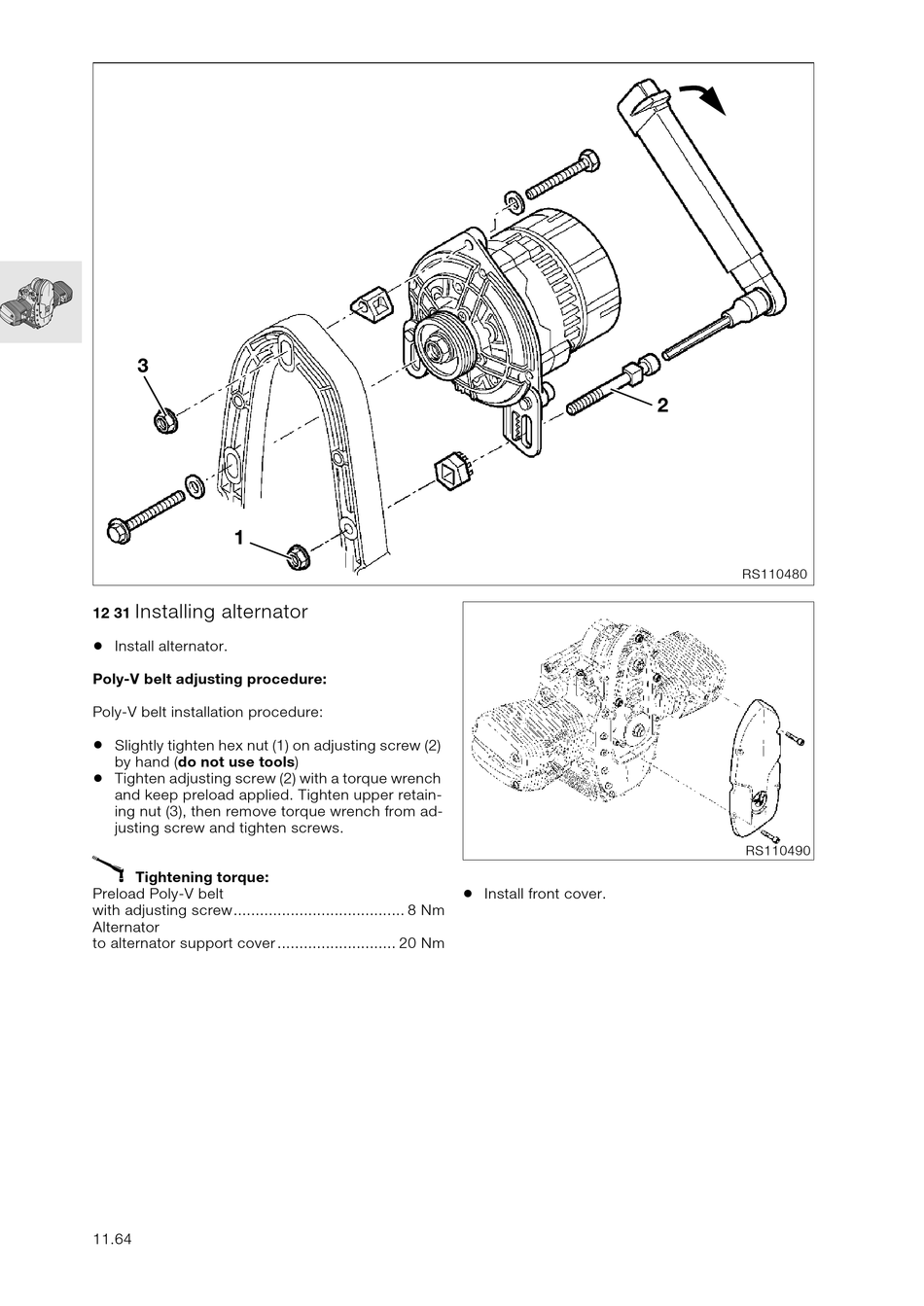

Installing alternator

12 31
•
Install alternator.
Poly-V belt adjusting procedure:
Poly-V belt installation procedure:
•
Slightly tighten hex nut (1) on adjusting screw (2)
by hand (do not use tools)
•
Tighten adjusting screw (2) with a torque wrench
and keep preload applied. Tighten upper retain-
ing nut (3), then remove torque wrench from ad-
justing screw and tighten screws.
X
Tightening torque:
Preload Poly-V belt
with adjusting screw....................................... 8 Nm
Alternator
to alternator support cover ........................... 20 Nm
11.64
•
Install front cover.
2
RS110480
RS110490
