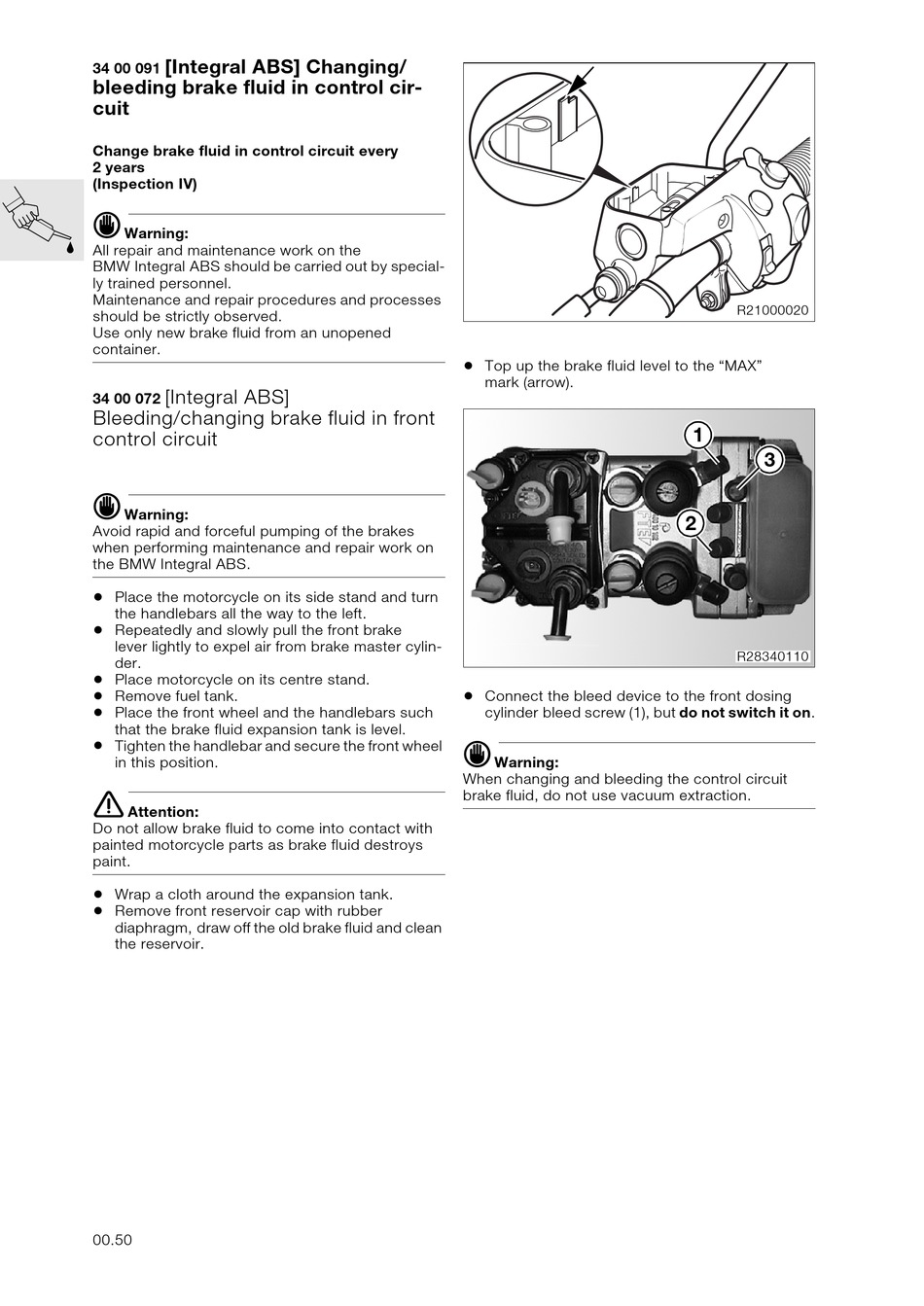

[Integral ABS] Changing/
34 00 091
bleeding brake fluid in control cir-
cuit
Change brake fluid in control circuit every
2 years
(Inspection IV)
d
Warning:
All repair and maintenance work on the
BMW Integral ABS should be carried out by special-
ly trained personnel.
Maintenance and repair procedures and processes
should be strictly observed.
Use only new brake fluid from an unopened
container.

[Integral ABS]

34 00 072
Bleeding/changing brake fluid in front
control circuit
d
Warning:
Avoid rapid and forceful pumping of the brakes
when performing maintenance and repair work on
the BMW Integral ABS.
•
Place the motorcycle on its side stand and turn
the handlebars all the way to the left.
•
Repeatedly and slowly pull the front brake
lever lightly to expel air from brake master cylin-
der.
•
Place motorcycle on its centre stand.
•
Remove fuel tank.
•
Place the front wheel and the handlebars such
that the brake fluid expansion tank is level.
•
Tighten the handlebar and secure the front wheel
in this position.
e
Attention:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
•
Wrap a cloth around the expansion tank.
•
Remove front reservoir cap with rubber
diaphragm, draw off the old brake fluid and clean
the reservoir.
00.50
•
Top up the brake fluid level to the "MAX"
mark (arrow).
•
Connect the bleed device to the front dosing
cylinder bleed screw (1), but do not switch it on.
d
Warning:
When changing and bleeding the control circuit
brake fluid, do not use vacuum extraction.
R21000020
1
3
2
R28340110
