Removing And Installing Roll-Over Valve - BMW R 1150 R Repair Manual

5
7

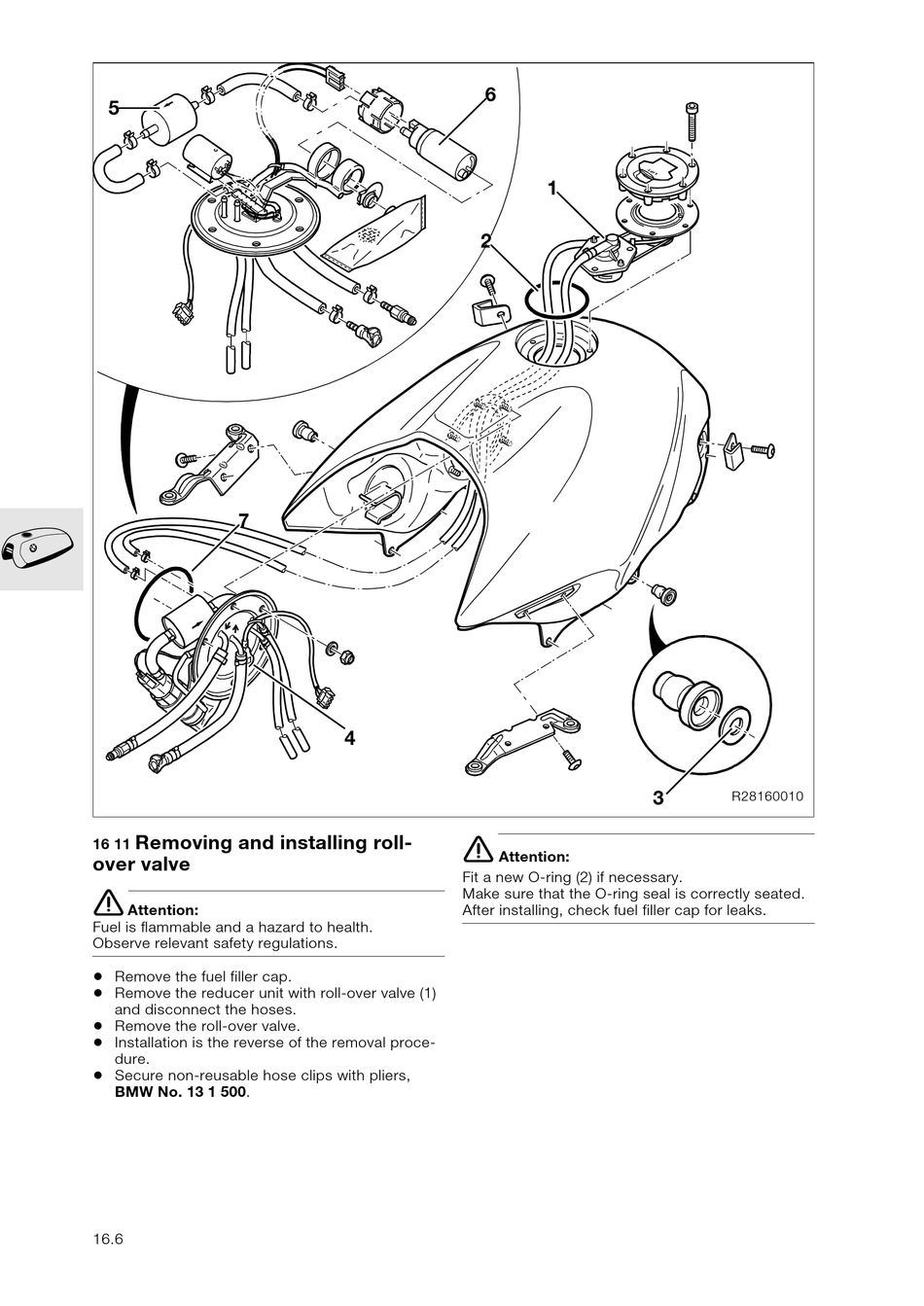

Removing and installing roll-
16 11
over valve
e
Attention:
Fuel is flammable and a hazard to health.
Observe relevant safety regulations.
•
Remove the fuel filler cap.
•
Remove the reducer unit with roll-over valve (1)
and disconnect the hoses.
•
Remove the roll-over valve.
•
Installation is the reverse of the removal proce-
dure.
•
Secure non-reusable hose clips with pliers,
BMW No. 13 1 500.
16.6
6
2
4
e
Attention:
Fit a new O-ring (2) if necessary.
Make sure that the O-ring seal is correctly seated.
After installing, check fuel filler cap for leaks.
1
3
R28160010
