[Integral Abs] Removing And Refitting Rear Abs Sensor - BMW R 1150 R Repair Manual

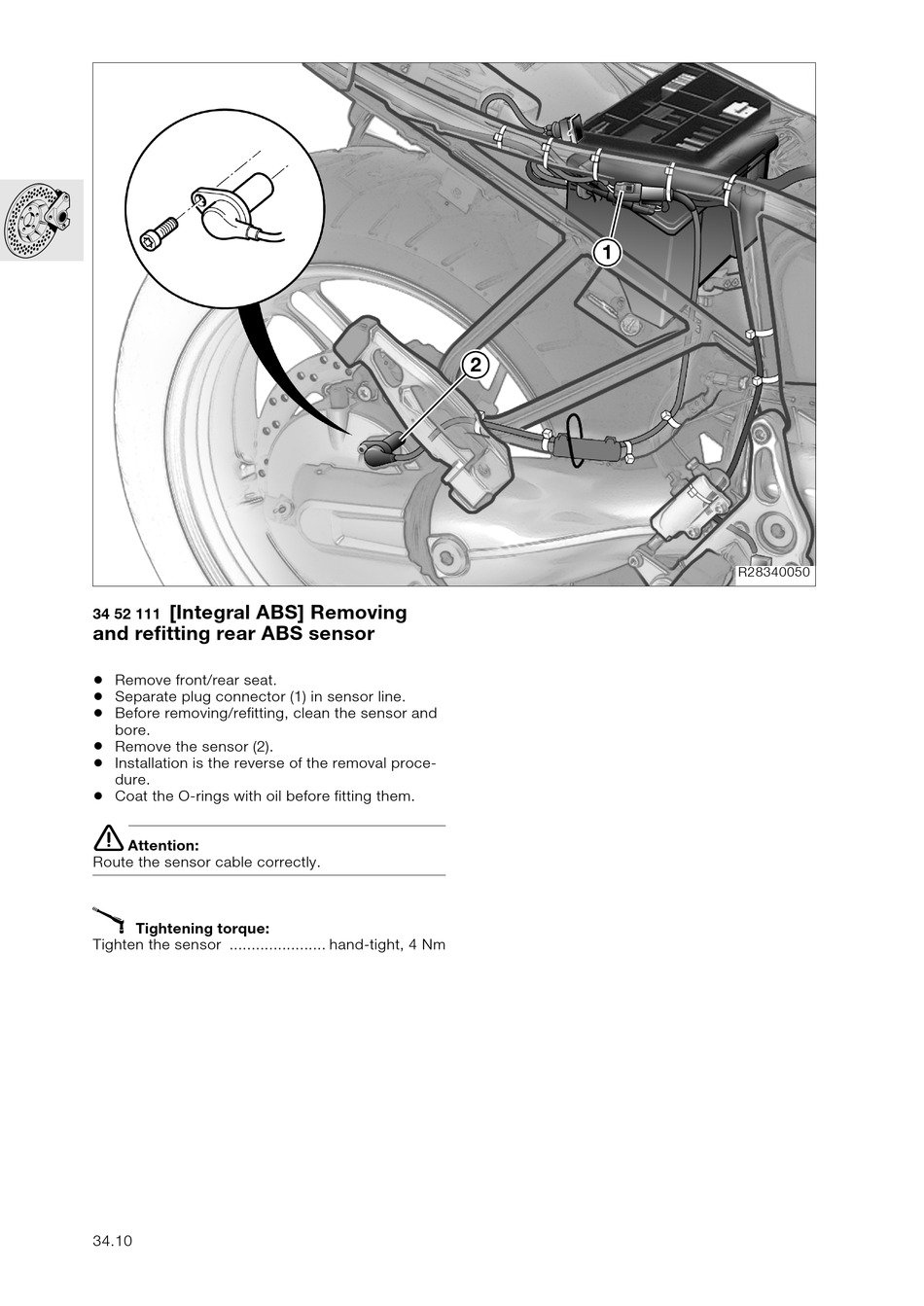

[Integral ABS] Removing
34 52 111
and refitting rear ABS sensor
•
Remove front/rear seat.
•
Separate plug connector (1) in sensor line.
•
Before removing/refitting, clean the sensor and
bore.
•
Remove the sensor (2).
•
Installation is the reverse of the removal proce-
dure.
•
Coat the O-rings with oil before fitting them.
e
Attention:
Route the sensor cable correctly.
X
Tightening torque:
Tighten the sensor ...................... hand-tight, 4 Nm
34.10
1
2
R28340050
