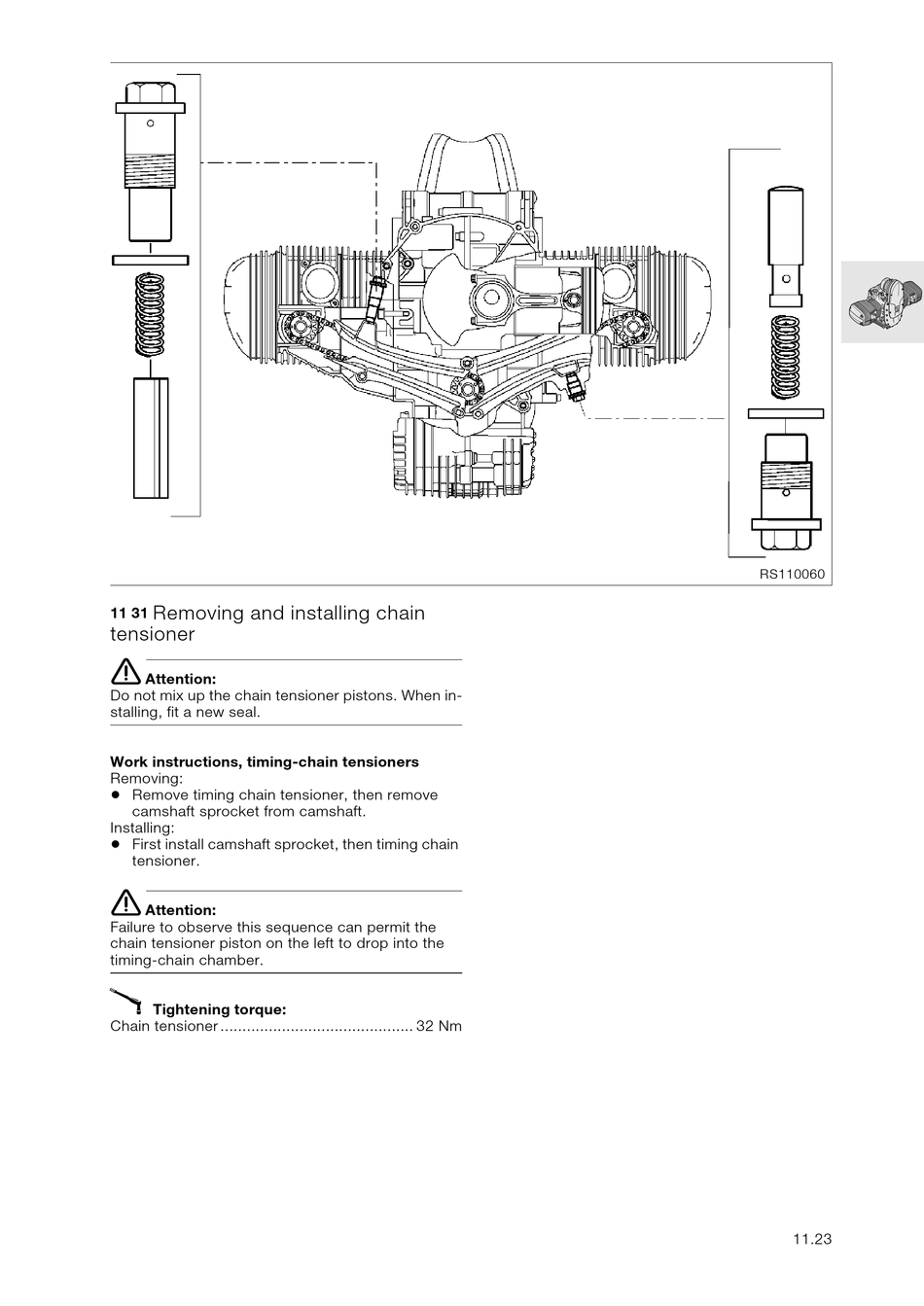

Removing and installing chain
11 31
tensioner
e
Attention:
Do not mix up the chain tensioner pistons. When in-
stalling, fit a new seal.
Work instructions, timing-chain tensioners
Removing:
Remove timing chain tensioner, then remove
camshaft sprocket from camshaft.
Installing:
First install camshaft sprocket, then timing chain
tensioner.
e
Attention:
Failure to observe this sequence can permit the
chain tensioner piston on the left to drop into the
timing-chain chamber.
X
Tightening torque:
Chain tensioner ............................................ 32 Nm
RS110060
11.23
