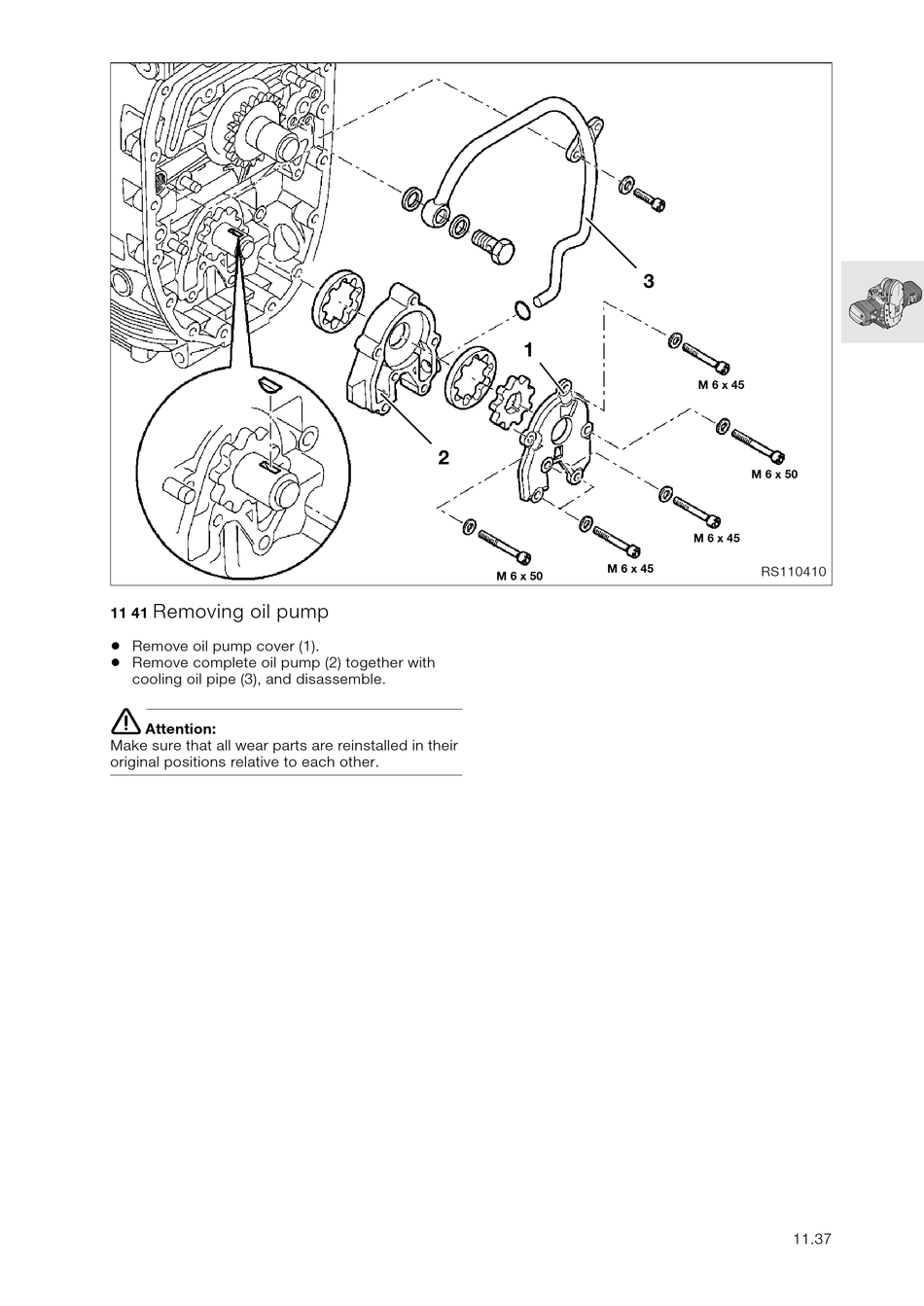

Removing oil pump

11 41
•
Remove oil pump cover (1).
•
Remove complete oil pump (2) together with
cooling oil pipe (3), and disassemble.
e
Attention:
Make sure that all wear parts are reinstalled in their
original positions relative to each other.
1
2
M 6 x 45
M 6 x 50
3
M 6 x 45
M 6 x 50
M 6 x 45
RS110410
11.37
