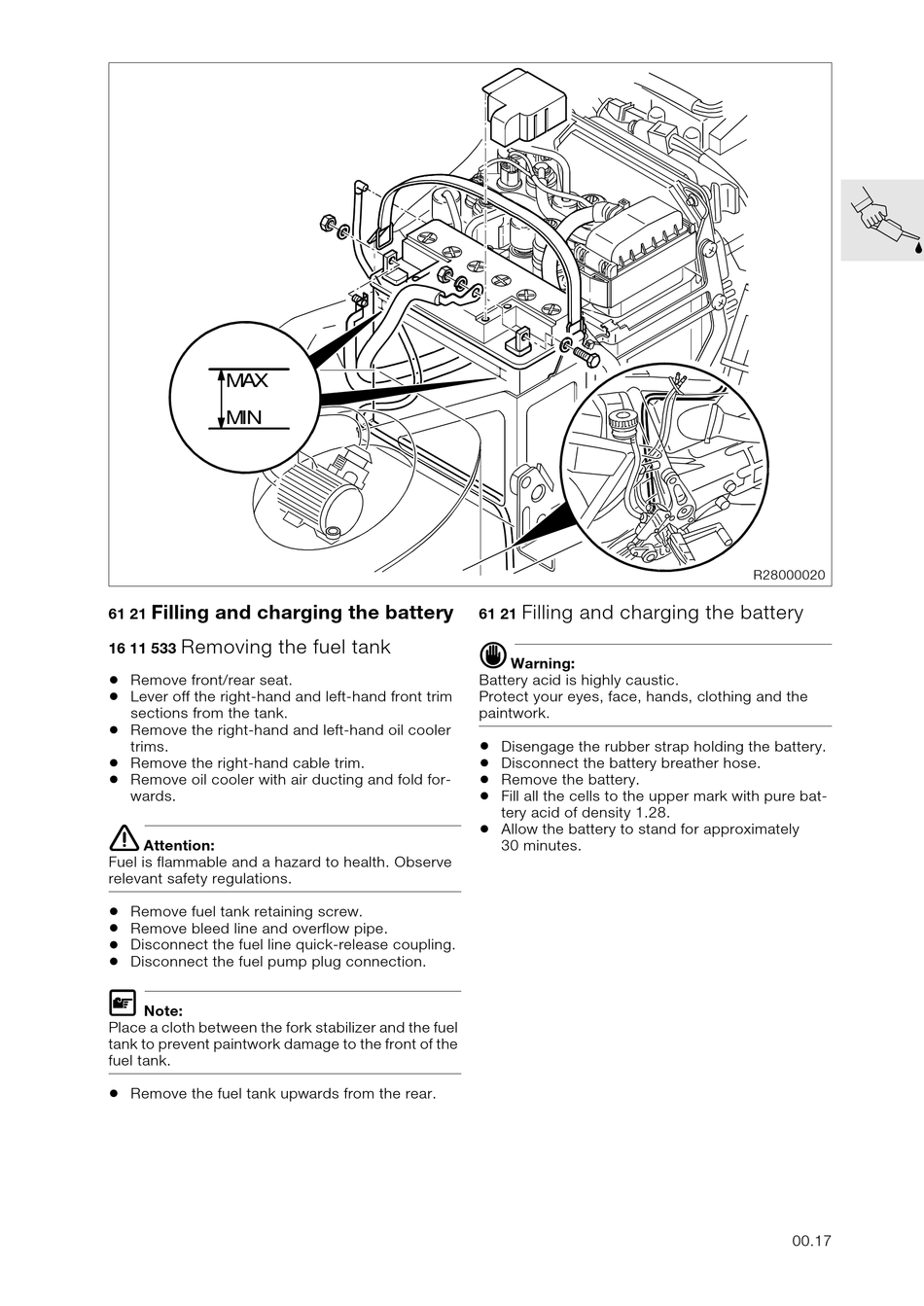

Filling and charging the battery
61 21
Removing the fuel tank
16 11 533
•
Remove front/rear seat.
•
Lever off the right-hand and left-hand front trim
sections from the tank.
•
Remove the right-hand and left-hand oil cooler
trims.
•
Remove the right-hand cable trim.
•
Remove oil cooler with air ducting and fold for-
wards.
e
Attention:
Fuel is flammable and a hazard to health. Observe
relevant safety regulations.
•
Remove fuel tank retaining screw.
•
Remove bleed line and overflow pipe.
•
Disconnect the fuel line quick-release coupling.
•
Disconnect the fuel pump plug connection.
L
Note:
Place a cloth between the fork stabilizer and the fuel
tank to prevent paintwork damage to the front of the
fuel tank.
•
Remove the fuel tank upwards from the rear.
Filling and charging the battery
61 21
d
Warning:
Battery acid is highly caustic.
Protect your eyes, face, hands, clothing and the
paintwork.
•
Disengage the rubber strap holding the battery.
•
Disconnect the battery breather hose.
•
Remove the battery.
•
Fill all the cells to the upper mark with pure bat-
tery acid of density 1.28.
•
Allow the battery to stand for approximately
30 minutes.
