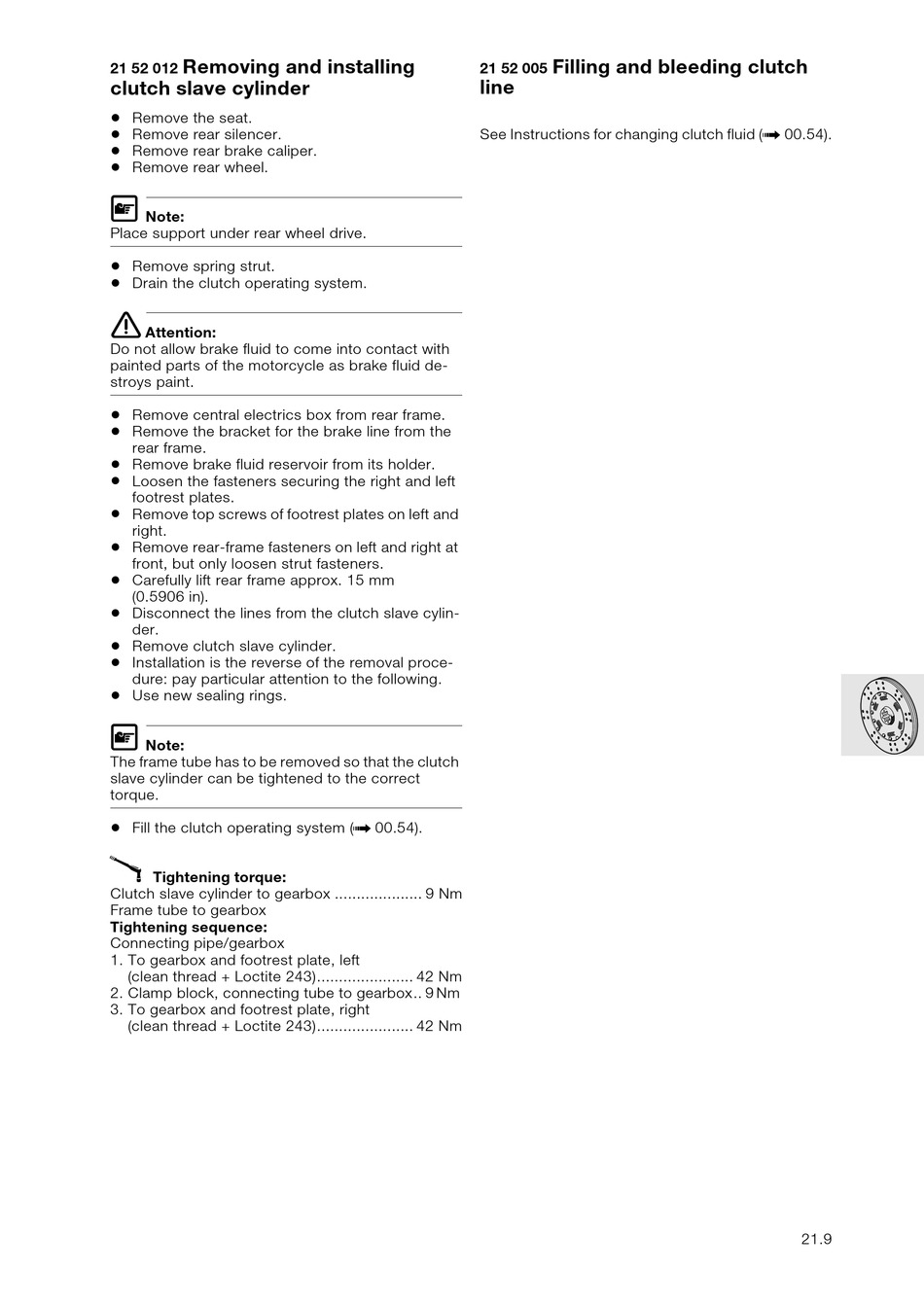

BMW R 1150 R Repair Manual page 170

Removing and installing
21 52 012
clutch slave cylinder
•
Remove the seat.
•
Remove rear silencer.
•
Remove rear brake caliper.
•
Remove rear wheel.
L
Note:
Place support under rear wheel drive.
•
Remove spring strut.
•
Drain the clutch operating system.
e
Attention:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle as brake fluid de-
stroys paint.
•
Remove central electrics box from rear frame.
•
Remove the bracket for the brake line from the
rear frame.
•
Remove brake fluid reservoir from its holder.
•
Loosen the fasteners securing the right and left
footrest plates.
•
Remove top screws of footrest plates on left and
right.
•
Remove rear-frame fasteners on left and right at
front, but only loosen strut fasteners.
•
Carefully lift rear frame approx. 15 mm
(0.5906 in).
•
Disconnect the lines from the clutch slave cylin-
der.
•
Remove clutch slave cylinder.
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Use new sealing rings.
L
Note:
The frame tube has to be removed so that the clutch
slave cylinder can be tightened to the correct
torque.
•
Fill the clutch operating system (
X
Tightening torque:
Clutch slave cylinder to gearbox .................... 9 Nm
Frame tube to gearbox
Tightening sequence:
Connecting pipe/gearbox
1. To gearbox and footrest plate, left
(clean thread + Loctite 243)...................... 42 Nm
2. Clamp block, connecting tube to gearbox.. 9 Nm
3. To gearbox and footrest plate, right
(clean thread + Loctite 243)...................... 42 Nm
21 52 005
line
See Instructions for changing clutch fluid (
00.54).
a
Filling and bleeding clutch
00.54).
a
21.9
