BMW R 1150 R Repair Manual page 149

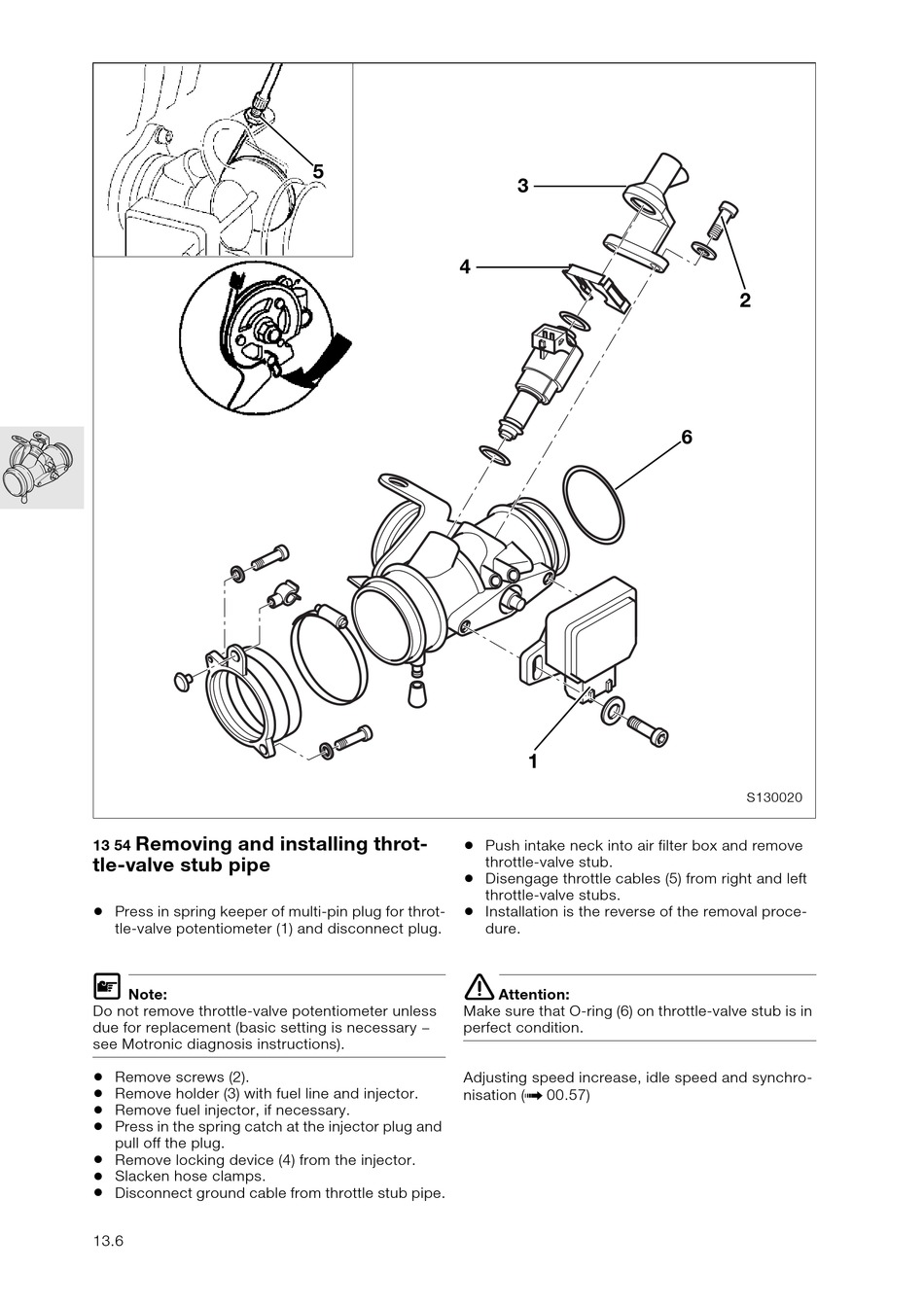

Removing and installing throt-
13 54
tle-valve stub pipe
•
Press in spring keeper of multi-pin plug for throt-
tle-valve potentiometer (1) and disconnect plug.
L
Note:
Do not remove throttle-valve potentiometer unless
due for replacement (basic setting is necessary —
see Motronic diagnosis instructions).
•
Remove screws (2).
•
Remove holder (3) with fuel line and injector.
•
Remove fuel injector, if necessary.
•
Press in the spring catch at the injector plug and
pull off the plug.
•
Remove locking device (4) from the injector.
•
Slacken hose clamps.
•
Disconnect ground cable from throttle stub pipe.
13.6
5
4
•
Push intake neck into air filter box and remove
throttle-valve stub.
•
Disengage throttle cables (5) from right and left
throttle-valve stubs.
•
Installation is the reverse of the removal proce-
dure.
e
Make sure that O-ring (6) on throttle-valve stub is in
perfect condition.
Adjusting speed increase, idle speed and synchro-
nisation (
3
1
