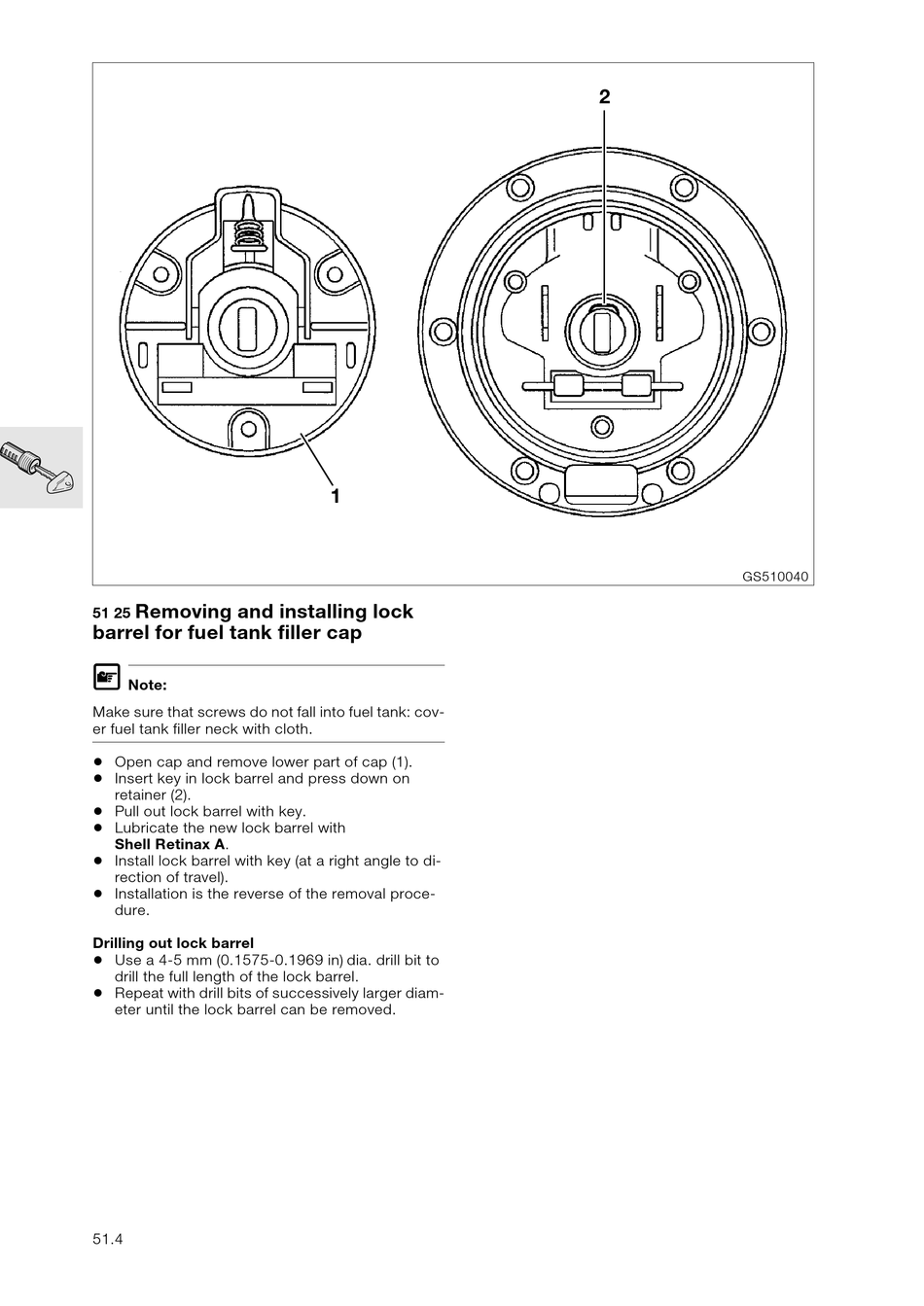

Removing and installing lock
51 25
barrel for fuel tank filler cap
L
Note:
Make sure that screws do not fall into fuel tank: cov-
er fuel tank filler neck with cloth.
•
Open cap and remove lower part of cap (1).
•
Insert key in lock barrel and press down on
retainer (2).
•
Pull out lock barrel with key.
•
Lubricate the new lock barrel with
Shell Retinax A.
•
Install lock barrel with key (at a right angle to di-
rection of travel).
•
Installation is the reverse of the removal proce-
dure.
Drilling out lock barrel
•
Use a 4-5 mm (0.1575-0.1969 in) dia. drill bit to
drill the full length of the lock barrel.
•
Repeat with drill bits of successively larger diam-
eter until the lock barrel can be removed.
