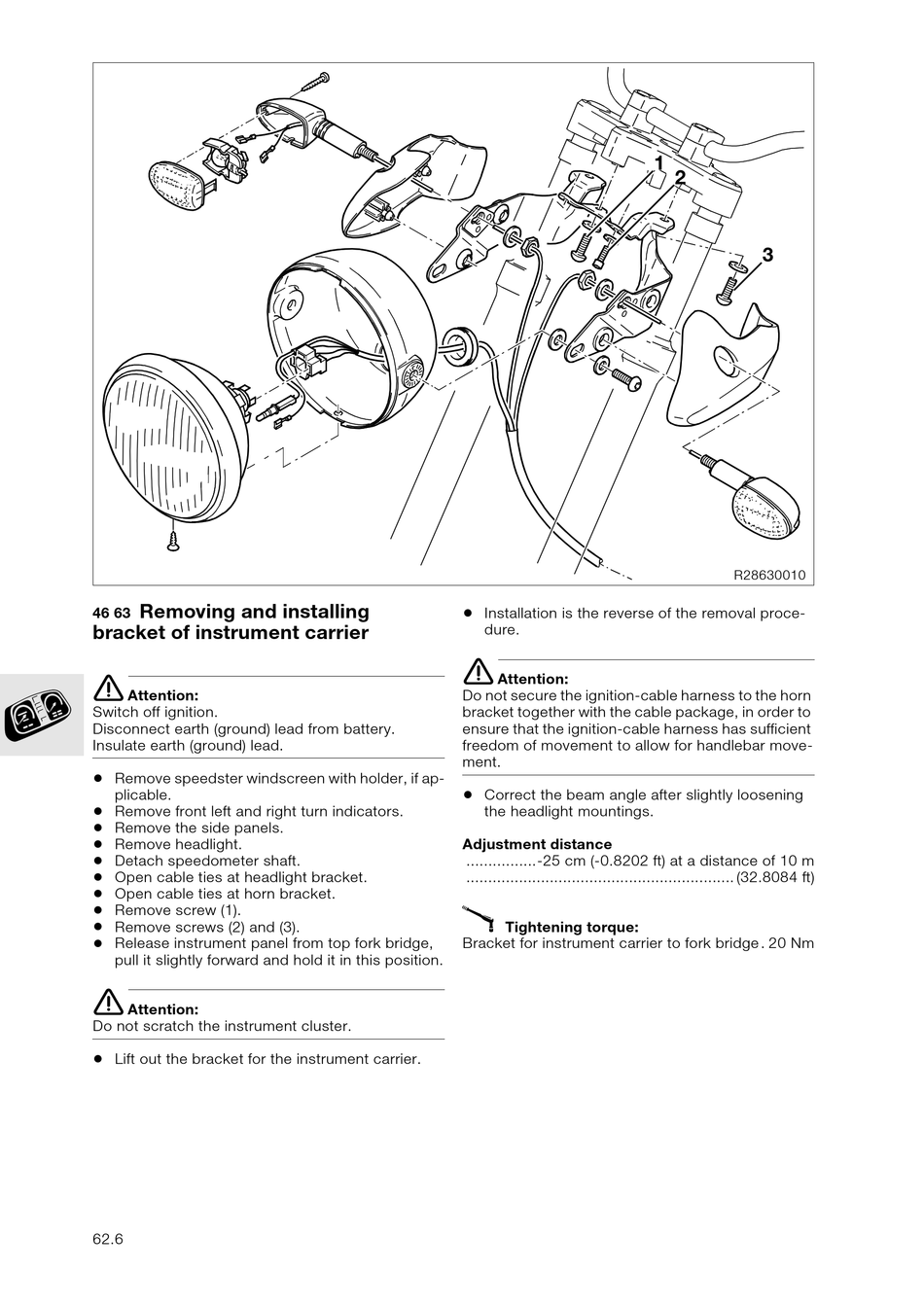

Removing and installing
46 63
bracket of instrument carrier
e
Attention:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove speedster windscreen with holder, if ap-
plicable.
•
Remove front left and right turn indicators.
•
Remove the side panels.
•
Remove headlight.
•
Detach speedometer shaft.
•
Open cable ties at headlight bracket.
•
Open cable ties at horn bracket.
•
Remove screw (1).
•
Remove screws (2) and (3).
•
Release instrument panel from top fork bridge,
pull it slightly forward and hold it in this position.
e
Attention:
Do not scratch the instrument cluster.
•
Lift out the bracket for the instrument carrier.
62.6
•
Installation is the reverse of the removal proce-
dure.
e
Attention:
Do not secure the ignition-cable harness to the horn
bracket together with the cable package, in order to
ensure that the ignition-cable harness has sufficient
freedom of movement to allow for handlebar move-
ment.
•
Correct the beam angle after slightly loosening
the headlight mountings.
Adjustment distance
................-25 cm (-0.8202 ft) at a distance of 10 m
............................................................. (32.8084 ft)
X
Tightening torque:
Bracket for instrument carrier to fork bridge . 20 Nm
