BMW R 1150 R Repair Manual page 190

23 4 762
0.2
23 4 763
A
23 4 761
1

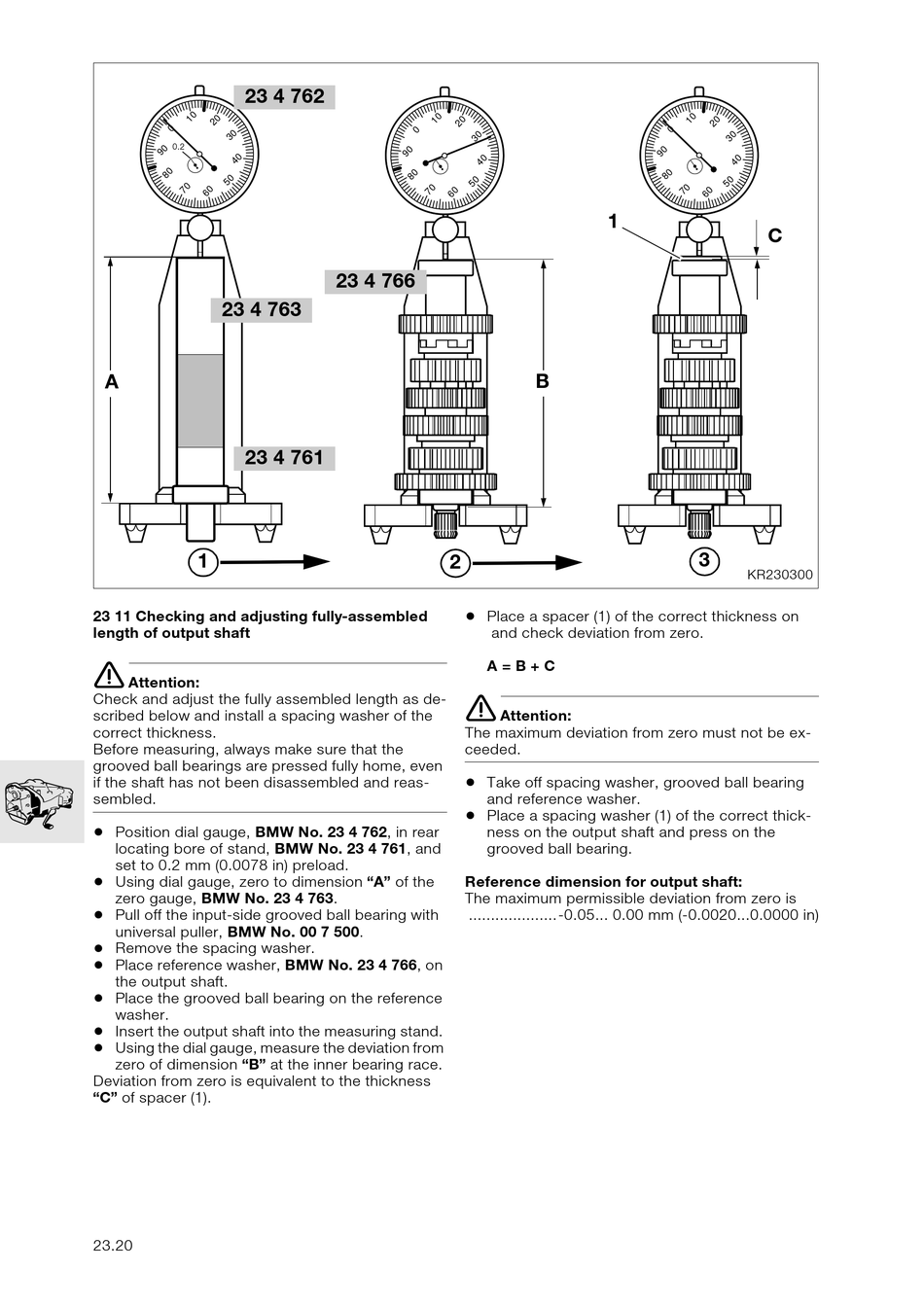

23 11 Checking and adjusting fully-assembled
length of output shaft
e
Attention:
Check and adjust the fully assembled length as de-
scribed below and install a spacing washer of the
correct thickness.
Before measuring, always make sure that the
grooved ball bearings are pressed fully home, even
if the shaft has not been disassembled and reas-
sembled.
•
Position dial gauge, BMW No. 23 4 762, in rear
locating bore of stand, BMW No. 23 4 761, and
set to 0.2 mm (0.0078 in) preload.
•
Using dial gauge, zero to dimension "A" of the
zero gauge, BMW No. 23 4 763.
•
Pull off the input-side grooved ball bearing with
universal puller, BMW No. 00 7 500.
•
Remove the spacing washer.
•
Place reference washer, BMW No. 23 4 766, on
the output shaft.
•
Place the grooved ball bearing on the reference
washer.
•
Insert the output shaft into the measuring stand.
•
Using the dial gauge, measure the deviation from
zero of dimension "B" at the inner bearing race.
Deviation from zero is equivalent to the thickness
"C" of spacer (1).
23.20
23 4 766
2
•
Place a spacer (1) of the correct thickness on
and check deviation from zero.
A = B + C
e
Attention:
The maximum deviation from zero must not be ex-
ceeded.
•
Take off spacing washer, grooved ball bearing
and reference washer.
•
Place a spacing washer (1) of the correct thick-
ness on the output shaft and press on the
grooved ball bearing.
Reference dimension for output shaft:
The maximum permissible deviation from zero is
....................-0.05... 0.00 mm (-0.0020...0.0000 in)
1
B
3
C
KR230300
