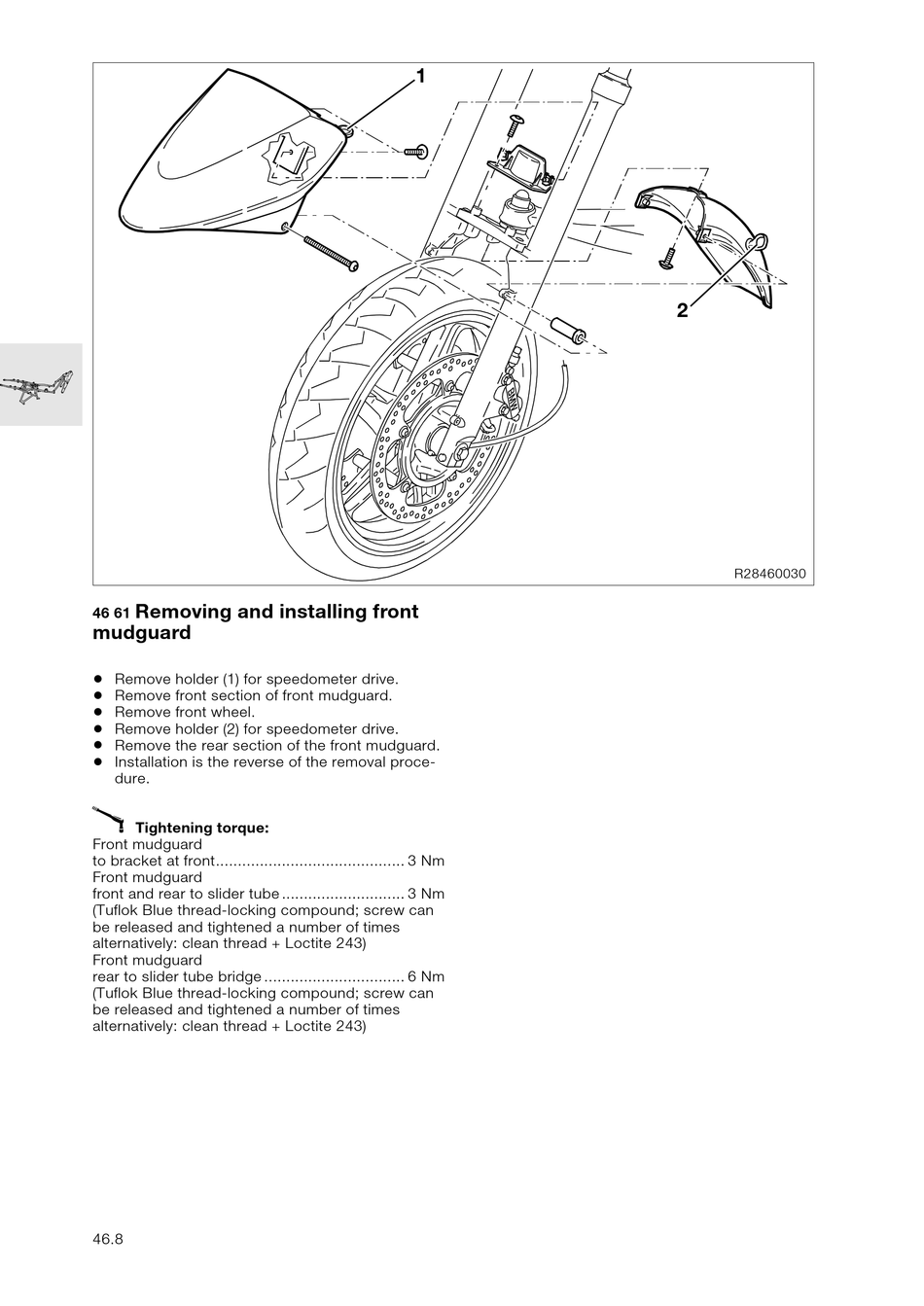

Removing and installing front
46 61
mudguard
•
Remove holder (1) for speedometer drive.
•
Remove front section of front mudguard.
•
Remove front wheel.
•
Remove holder (2) for speedometer drive.
•
Remove the rear section of the front mudguard.
•
Installation is the reverse of the removal proce-
dure.
X
Tightening torque:
Front mudguard
to bracket at front........................................... 3 Nm
Front mudguard
front and rear to slider tube ............................ 3 Nm
(Tuflok Blue thread-locking compound; screw can
be released and tightened a number of times
alternatively: clean thread + Loctite 243)
Front mudguard
rear to slider tube bridge ................................ 6 Nm
(Tuflok Blue thread-locking compound; screw can
be released and tightened a number of times
alternatively: clean thread + Loctite 243)
46.8
1
2
R28460030
