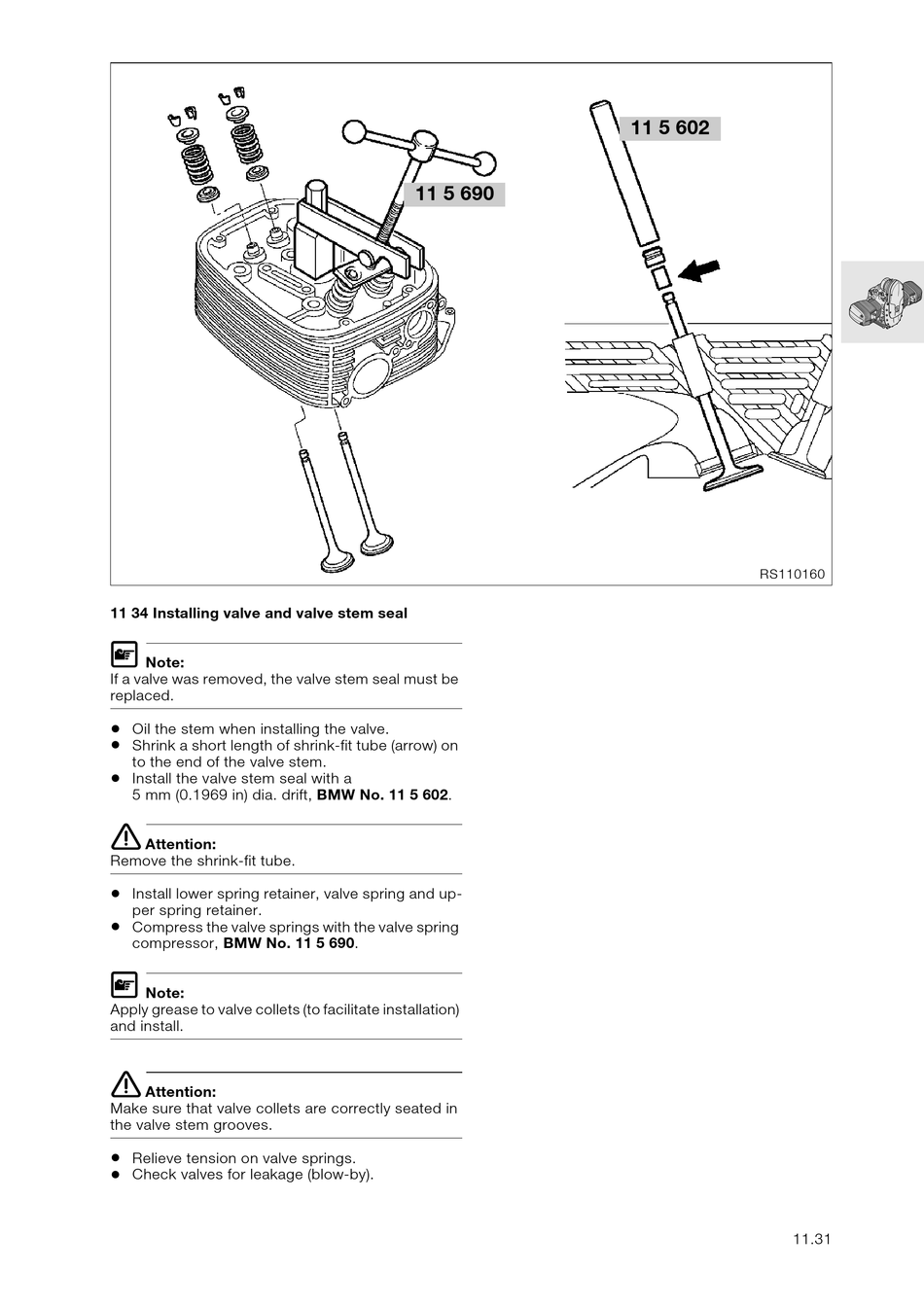

11 34 Installing valve and valve stem seal

L
Note:
If a valve was removed, the valve stem seal must be
replaced.
•
Oil the stem when installing the valve.
•
Shrink a short length of shrink-fit tube (arrow) on
to the end of the valve stem.
•
Install the valve stem seal with a
5 mm (0.1969 in) dia. drift, BMW No. 11 5 602.
e
Attention:
Remove the shrink-fit tube.
•
Install lower spring retainer, valve spring and up-
per spring retainer.
•
Compress the valve springs with the valve spring
compressor, BMW No. 11 5 690.
L
Note:
Apply grease to valve collets (to facilitate installation)
and install.
e
Attention:
Make sure that valve collets are correctly seated in
the valve stem grooves.
•
Relieve tension on valve springs.
•
Check valves for leakage (blow-by).
11 5 690
11 5 602
RS110160
11.31
