Conf Connector

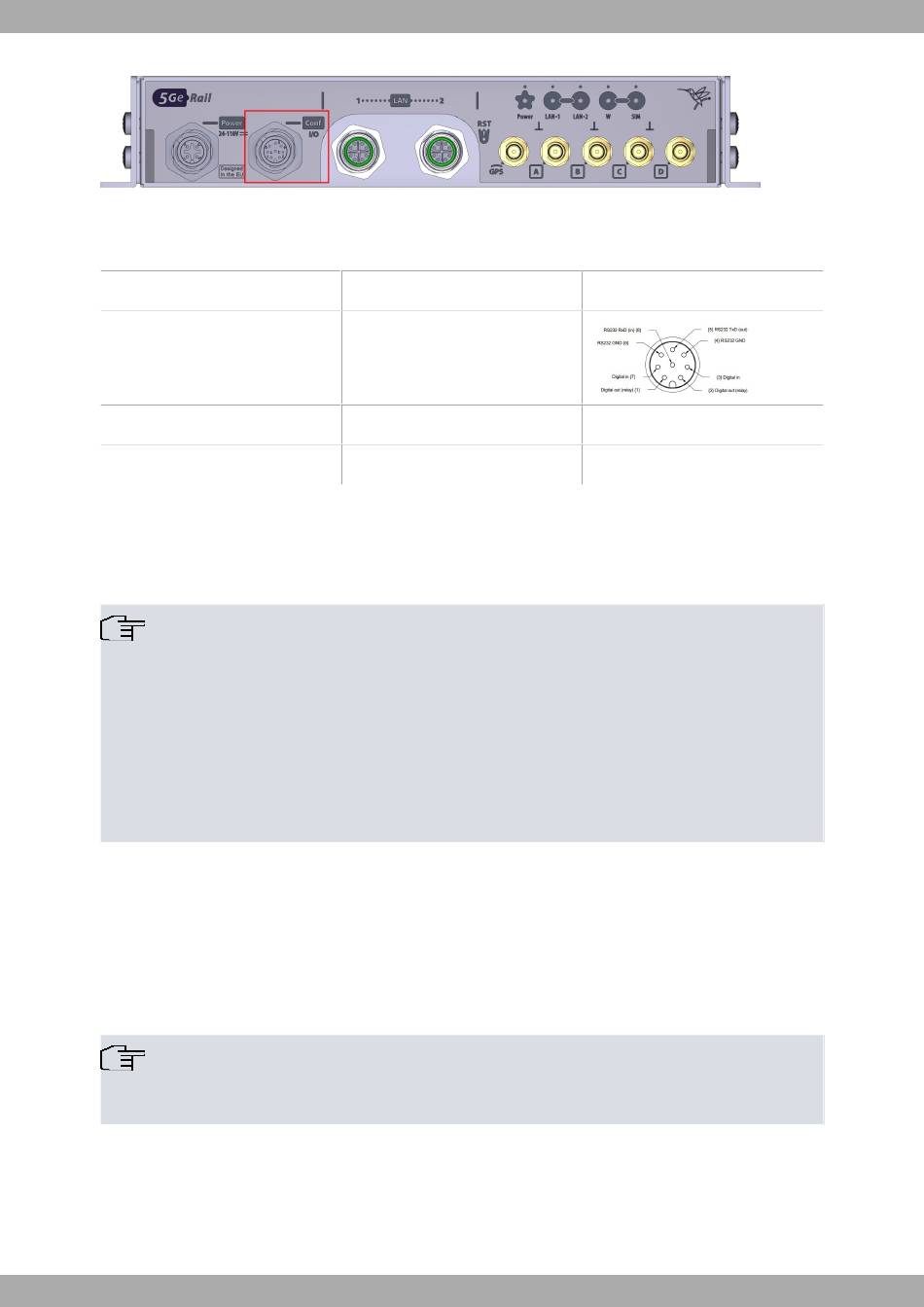

Fig. 12:
This connector is shared with the I/O signals. The following table shows the RS232 signals and their pin assign-
ments.
PIN
5
8
4, 6
The interface behavior or function must be pre-configured. By default, it is configured in local console mode. This
section focuses on the connection for local console mode.
To configure local console mode, connect the CONF port to an asynchronous terminal (or to a PC with terminal emu-
lation).
Note
The terminal must be configured as follows:
- Speed: 115,200 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No flow control.
3.5.4.2 Configuration using the IP terminal (LAN1 connector)
The Teldat 5Ge-Rail includes a default configuration, which activates if the device has not been pre-configured.
The router's default configuration sets up the device with the following IP access address and mask:
Note
Some devices come with customized settings. As a result, your router's default configuration may be
different to the one shown above.
This initial configuration lets you access the router's configuration console through the Telnet IP protocol. To do this,
follow these steps:
• Configure the Ethernet interface on the IP terminal (usually a PC) using an IP address within the following range
[192.168.1.2, 192.168.1.254] and mask 255.255.255.0. For example, 192.168.1.2, 255.255.255.0.
• Connect the IP terminal Ethernet interface to any of the Ethernet switch ports on the Teldat 5Ge-Rail (LAN1 con-
Teldat 5Ge-Rail Router
Signal
RS232-TxD (Output)
RS232-RxD (Input)
RS232-GND
• IP Address: 192.168.1.1
• IP Mask: 255.255.255.0
