3 Components and Power Supply

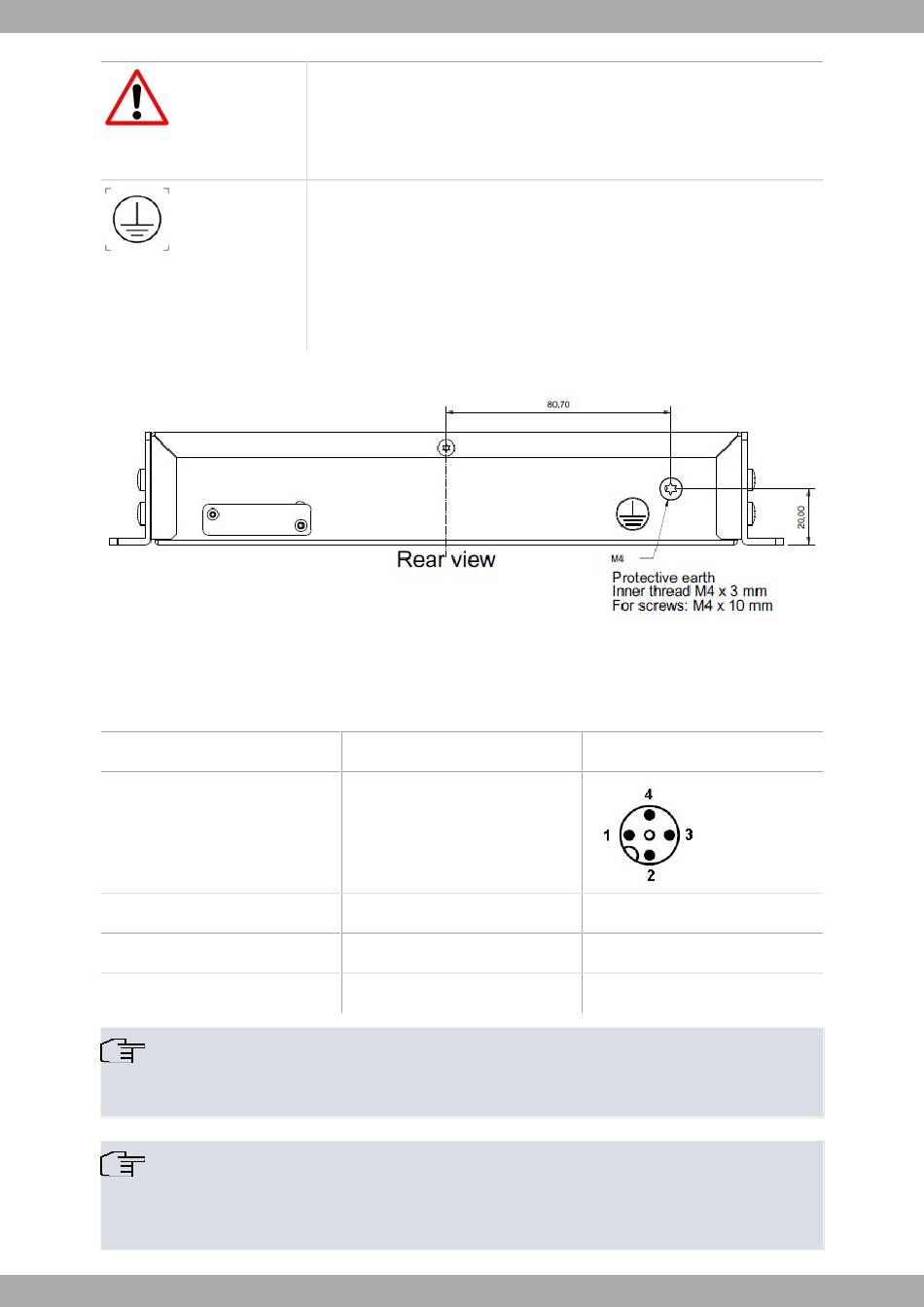

Fig. 6: Rear view, Protective Earth connection
3.3.1.1 Power connector pins
The power connector on this router is an M12 4-pole code A male connector or equivalent.
PIN
1
2
3
4
Note
Connections 1-2 and 3-4 are redundant. We recommend keeping this redundancy to guarantee device
availability.
Note
To install the power cable using the M12 cable connector, the maximum tightening torque allowed is
0.4Nm. Higher values may damage the router connector. After its initial connection, frequent checkups
must be carried out to ensure its correct fitting.
10
This equipment requires an external overcurrent protection device. To comply with
safety regulations, a 5.0 A time-lag fuse, or a previously approved 1-amp thermo-
magnetic circuit breaker (ABB-S281-UC-K-1 or equivalent), must be installed in
the power line. Be sure to observe the correct polarity of the DC connection as the
wrong polarity may destroy the external line fuse
The Teldat 5Ge-Rail has one earth terminal (on the rear panel). It must be groun-
ded through a cable with a section measuring, at least, 2 mm
This equipment must be grounded. Never deactivate the ground conductor or op-
erate the equipment in the absence of a properly installed ground conductor. Con-
tact the appropriate electrical inspection authority or an electrician if you don't
know whether suitable grounding is available. When installing or replacing the unit,
the ground connection must always be established first and disconnected last.
Signal
+ V DC
+ V DC
0 V
0 V
2
(AWG14).
M12 4P Code A male
Teldat S.A.
Teldat 5Ge-Rail Router
