Panel Features

This section discusses:
•
•

Front Panel Features

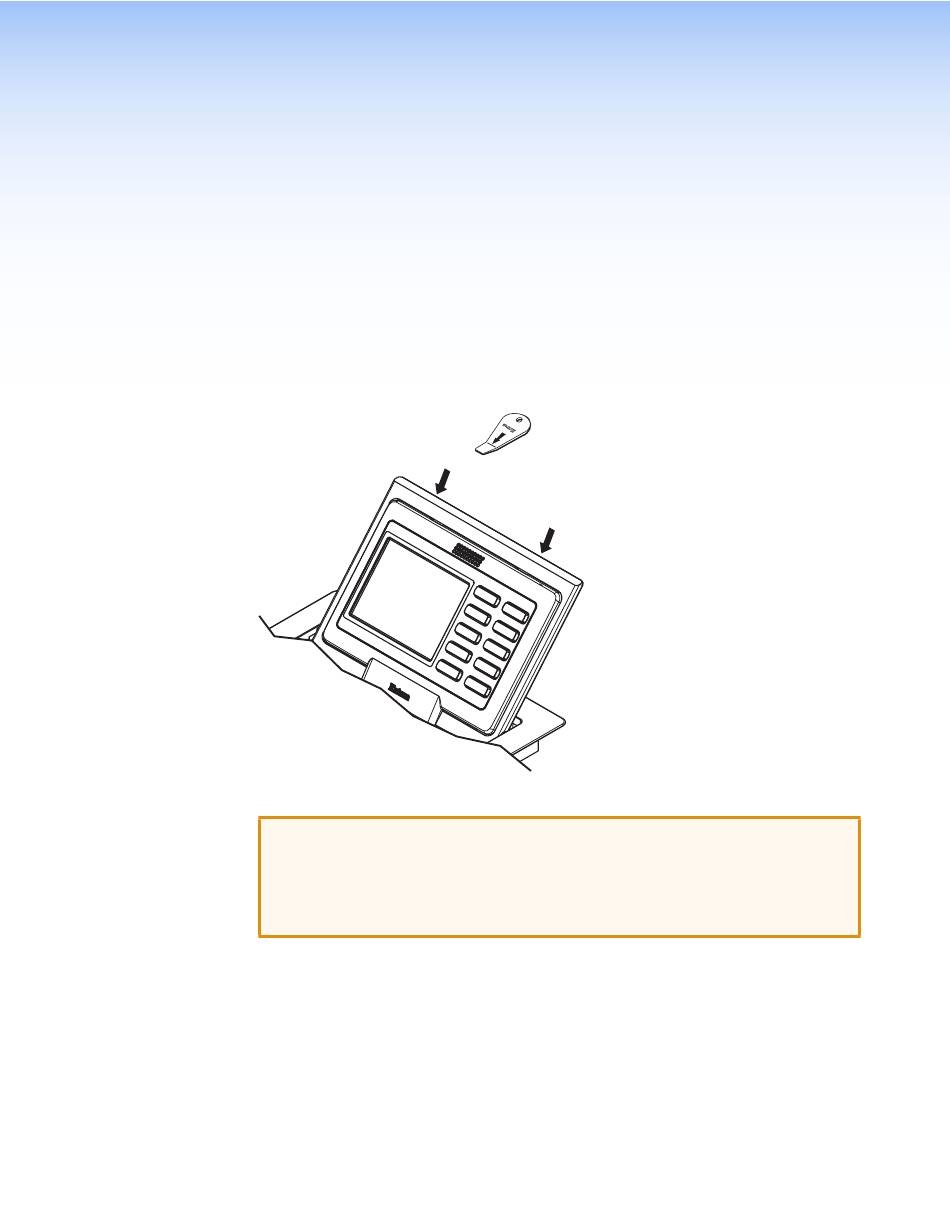

With the lid open, remove the front panel bezel, as shown in figure 10, using the Extron
removal tool.
Figure 10.
ATTENTION:
Front Panel Features
Connectors
1 1
Removing the Bezel
• When you slide the removal tool between the screen and the bezel, take care to
avoid damaging the ribbon cable, which runs close to the edge of the bezel.
• Lorsque vous faites glisser l'outil d'extraction entre l'écran et le châssis, faites
attention à éviter d'endommager la nappe de raccordement se trouvant à proximité
du bord du châssis.
Insert the removal tool in the
slot about one inch from the
top corner and loosen the bezel
away from the screen.
2 2
Move the removal tool to
the second slot and
loosen the bezel away from
the screen.
C C
Slide the removal tool along
one side until the bezel
separates from the unit.
TLP Pro 320C • Panel Features 15
