Network and Power over Ethernet Connector

Connect the TLP Pro 320C to the LAN using a twisted pair cable, terminated with an RJ-45
connector. Use a straight-through Ethernet cable to connect the panel to a switch or router.
Use a crossover cable to connect the panel directly to a computer.
An Extron IPL Pro Control Processor must also be connected to the same network domain as
the TouchLink Touchpanel. See
The network port has two LEDs. The green LED lights steadily to
indicate that the touchpanel is connected correctly to a network. The
yellow LED blinks to indicate that data is being passed to or from the
touchpanel.
The TLP Pro 320C can use a 12 VDC desktop power supply and is
also Power over Ethernet (PoE 802.3af, class 3) compliant. Extron recommends using a PoE
power injector and, when a power injector is used, Extron recommends the XTP PI 100 power
injector (part number 60-1233-01), which is shown in figure 14 below.
NOTE:
supply or the PoE injector must be purchased separately.
To use a PoE power injector, connect a straight-through Ethernet cable to the power supply
and a switch or router. This cable carries network information from the switch or router to
the power supply input. A second straight-through cable carries the network information
and 48 VDC from the power supply to the TLP Pro 320C. Connect the IEC power cord to a
convenient 100 VAC to 240 VAC, 50-60 Hz power source.
If a 12 VDC power supply
the LAN/PoE connector directly to a switch or router.
ATTENTION:
• Do not power on the touchpanels or control processors until you have read the
Attention notice on
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu les mises en
garde

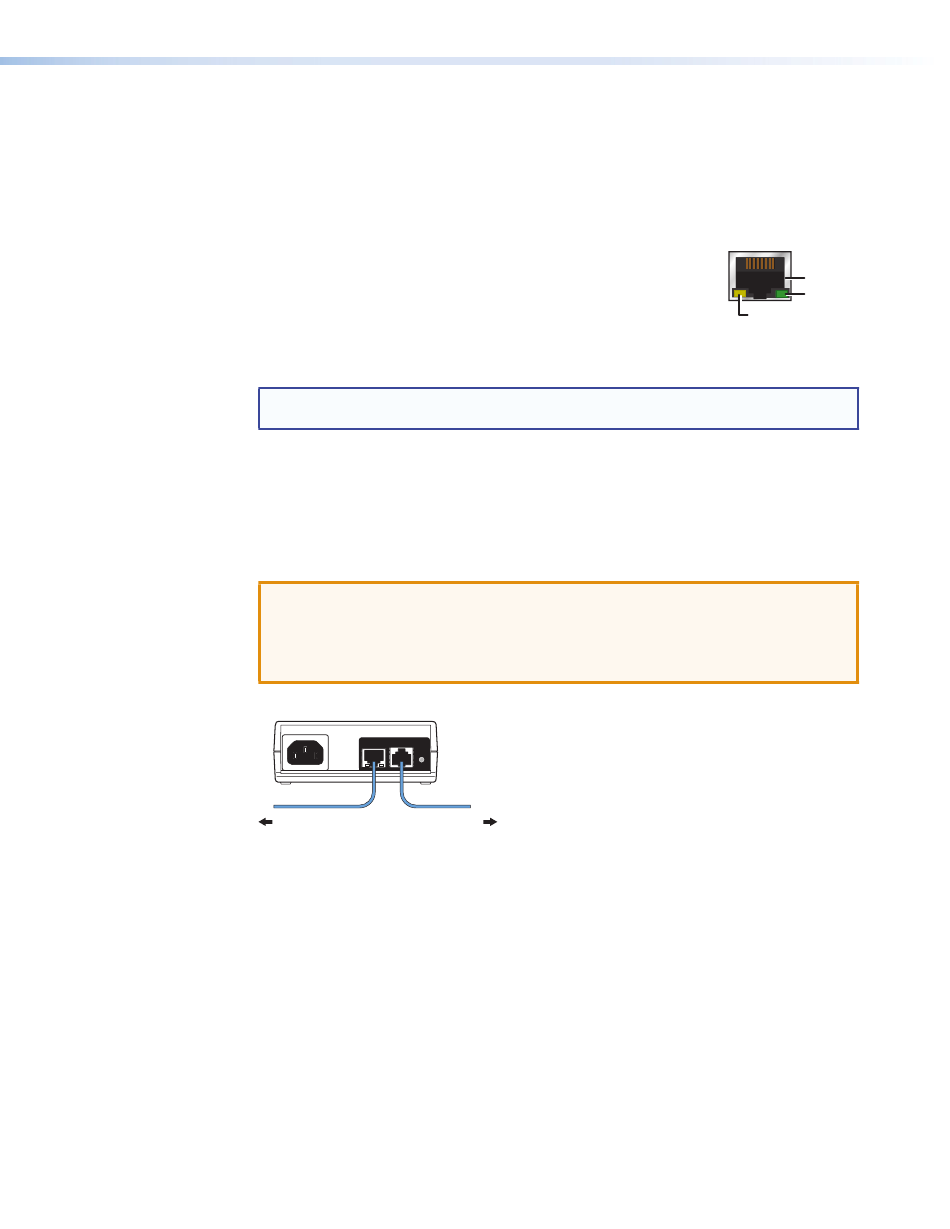

The figure below shows the Extron XTP PI 100. Your power injector may look different.
~
100-240V 50-60Hz
0.4A MAX
To network switch
Figure 14.
www.extron.com
The TLP Pro 320C ships without a power supply. Either the 12 VDC power
is being used (see page 17) run one straight-through cable from
page 18 (12 VDC power supply) or on
page 18 (source d'alimentation 12 VCC) ou
XTP XTP PWR
PWR
To touchpanel
Connecting the Power Injector
for a list of suggested models.
LAN/PoE
Activity LED
page 20 (PoE injector).
page 20 (injecteur PoE).
TLP Pro 320C • Panel Features
RJ-45 Port
Link LED
19
