Ensure Adequate Under-table Clearance for Retractors

Retractors are optional accessories for handling cables with the TLP Pro 320C. If you are
using retractors, ensure that there is sufficient room beneath the table to accommodate them.
Horizontal mounting provides maximum legroom and protects the retractors from accidental
damage. Vertical mounting is used if space or access makes horizontal mounting difficult. To
satisfy ADA compliance requirements, there is also an option to mount the retractors at a 30°
angle (see the Retractors User Guide, which is available at www.extron.com).
23.0" (58.5 cm)
Figure 4.

Cutting the Table

Cut-out Dimensions

There are three alternative methods of making the hole for the TLP Pro 320C (see
Surface
•
•
•

Cutting the Surface

WARNING:
AVERTISSEMENT :
17.0"
(43.3 cm)

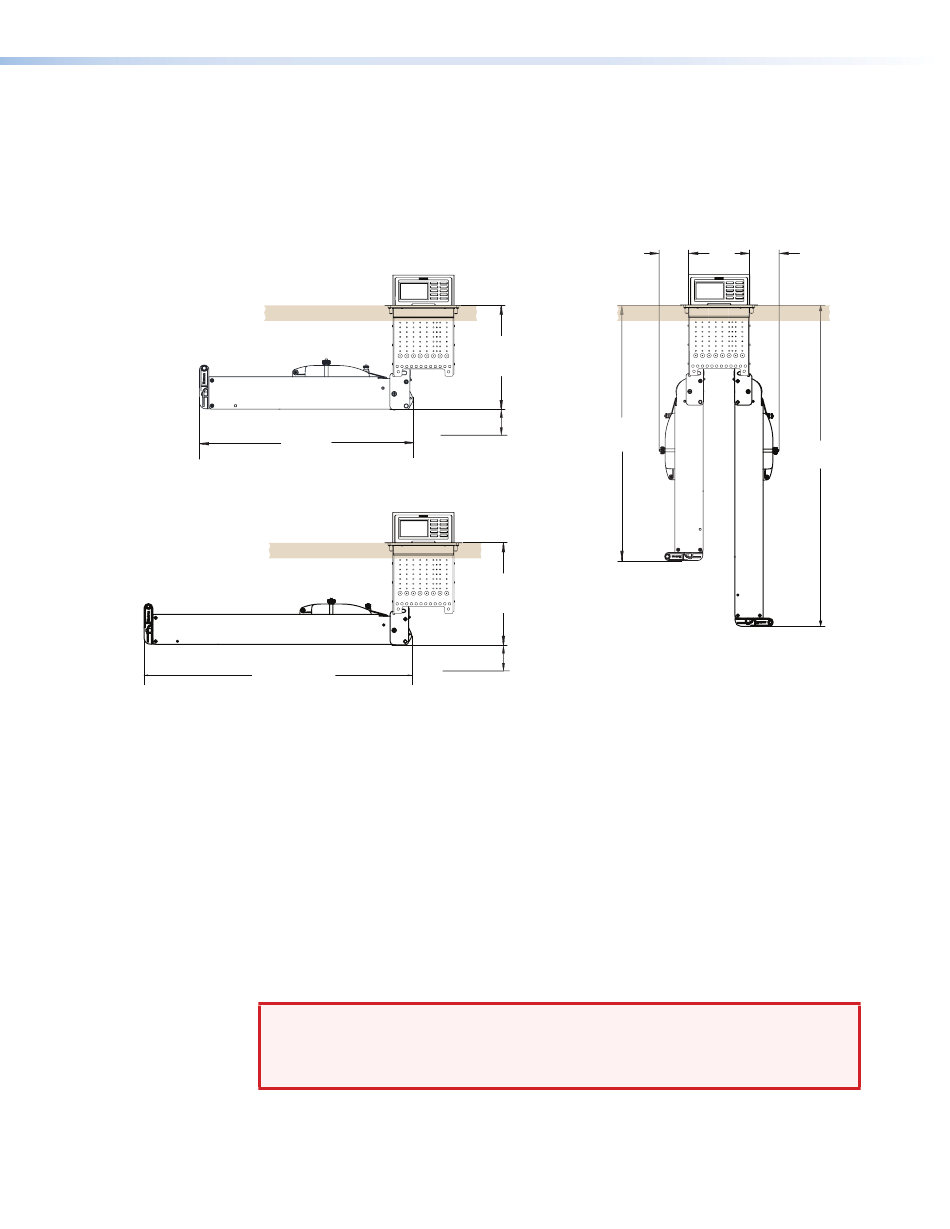

Horizontal Mounting Clearance
Under-table Clearance Requirements for Retractors
below and on the following page):
If using a hand router, you should purchase the TLP Pro 320C routing template
(part number 70-694-01).
If using a CNC wood router, use the exact cut-out dimensions.
If using a reciprocating saw or jigsaw
Wear safety glasses when operating power equipment. Failure to comply
can result in eye injury.
Portez des lunettes de sécurité lorsque vous utilisez l'équipement
électrique. Ne pas respecter cela peut conduire à une blessure à l'oeil.
2.7" (6.9 cm)
9.8"
(24.9 cm)
3.0"
(7.6 cm) 24.1"
(61.2 cm)
9.8"
(24.9 cm)
3.0"
(7.6 cm)
XL Models
use the paper cut-out template.
2.7" (6.9 cm)
30.1"
(76.5 cm)
XL Models
Vertical Mounting Clearance
Cutting the
