Installing or Replacing Buttons

The TLP Pro 320C has ten dedicated, customizable function buttons to provide quick access
to key functions. The buttons must be associated with their function by configuring them with
Global Configurator Plus or Professional (see the Global Configurator Help File).
The unit ships with the following default set of buttons installed:
Any or all of these buttons can be replaced if they are assigned different functions when
the unit is customized. Replacement buttons come in pre-packaged kits or can be ordered
individually. For a complete list of available options, see the TLP Pro 320C product page at
www.extron.com. An order form can be downloaded from the same site.

Button Replacement

The instructions below show how to replace the button labels on the TLP Pro 320C:
1.
2.
3.
4.
5.
6.
7.
Laptop Display On
PC Display Off
DVD Mute
Doc Cam Volume
Auxiliary Volume
Disconnect power from the touchpanel.
Remove the bezel using the Extron removal tool (see
Tip the bezel forward as it is being removed so that the buttons do not fall out.
Lay the bezel face down and remove the buttons that need to be replaced.

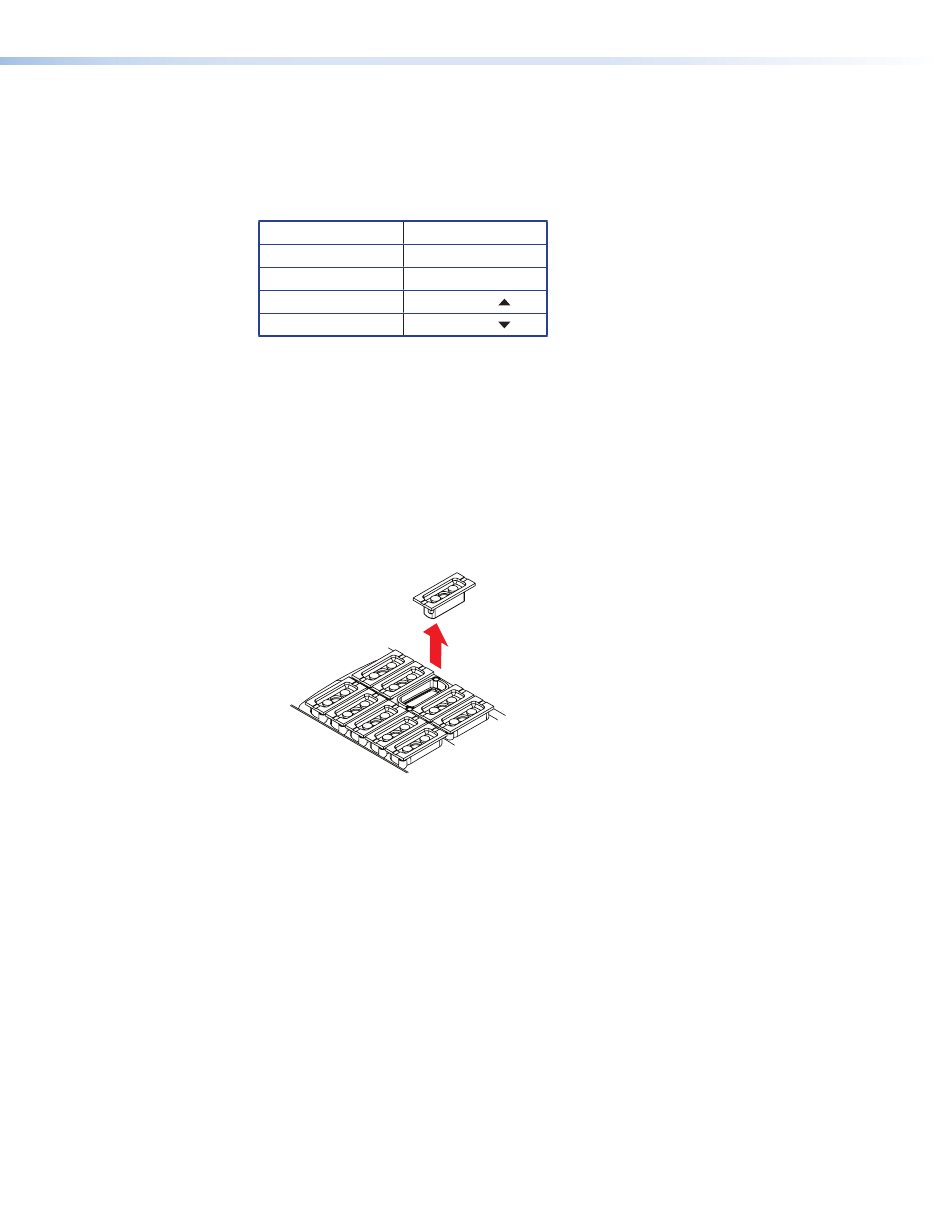

Button Replacement
Figure 29.
Insert the replacement buttons making sure that they are in the correct orientation.
Replace the bezel that was removed in step 2. Four clips, two at the top and two at the
bottom, snap into place, audibly.
Reconnect the power to the touchpanel.
figure 10
Remove Buttons
TLP Pro 320C • Reference Material
on page 15).
