Running Cables

Run all cables necessary to support the AC connector, the cables stored in the cubby, and all
planned AAP connectors. Run the cables below the table and through the hole that was cut
in the previous step
route them before the cubby is installed in the table. Leave enough slack for the external power
supply and to connect AV cables and the cable for PoE and LAN to the TLP Pro 320C.

Installing Cable Retractors (Optional)

Extron cable retractors retract and store extended cables in Cable Cubby systems, preventing
them from tangling underneath the table. Retractor kits are available for several cable types.
Up to six retractors can be installed in the TLP Pro 320C enclosure (three at either end). They
are not provided with the TLP Pro 320C and must be purchased separately.
The buttons on the retractors must be placed at one end of the unit and must, therefore, be
the first or the last items added.

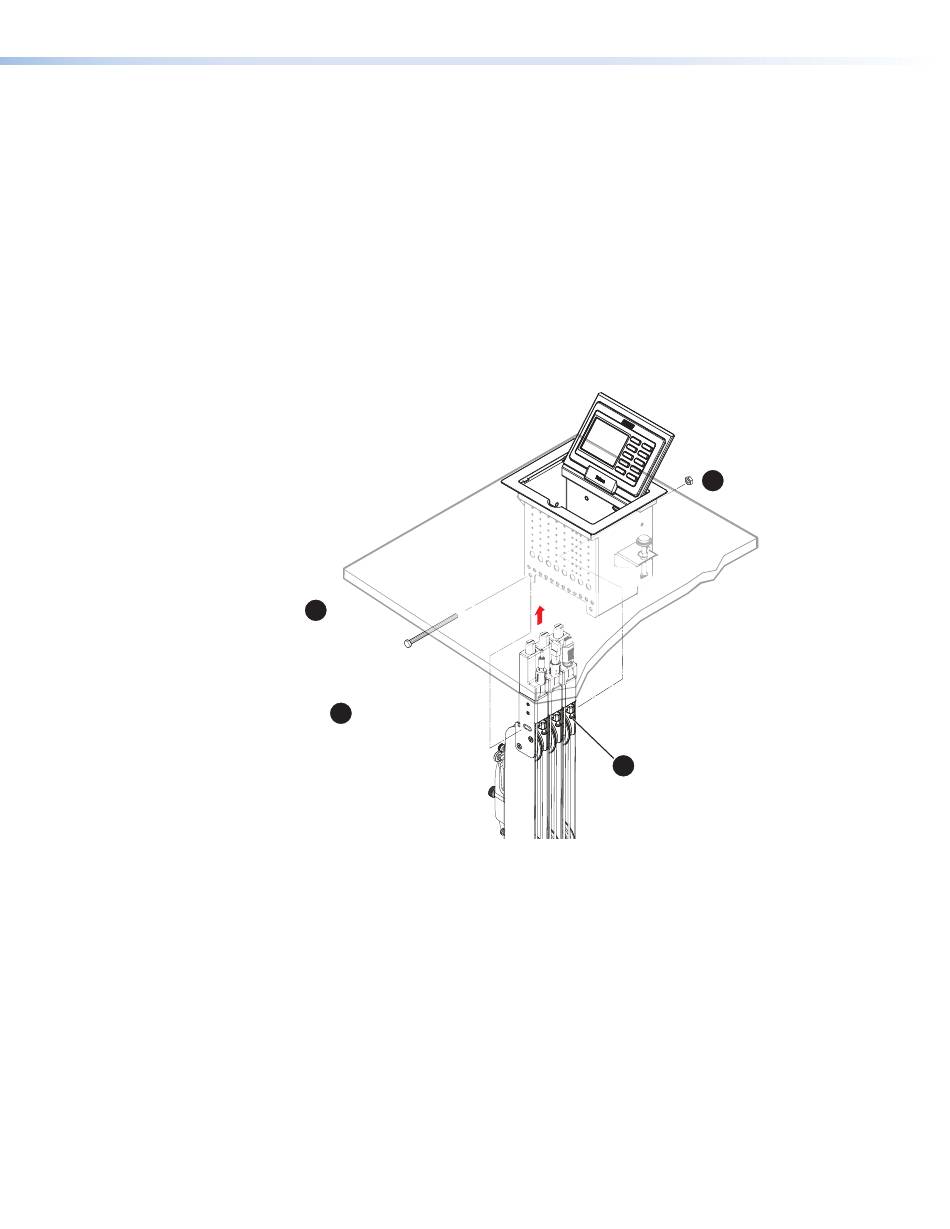

Insert the bolt through the
retractor mounting hole on
the side of the Cable Cubby
and retractor assembly.
Figure 5.
To mount the retractors horizontally and for further information and installation instructions,
see the Retractors User Guide, which is available at www.extron.com. The guide also
provides information about mounting the retractors at a 30° angle to satisfy ADA compliance
requirements.
(Cutting the Surface). Leave enough slack in the cables to connect or
2
1
Insert retractors into the
touchpanel enclosure
from underneath.
Installing Cable Retractors
3
Secure the bolt
with the nut.
4
Secure the locking screw
on each retractor.
Do not overtighten.
TLP Pro 320C • Mounting 10
