Operation
6.3

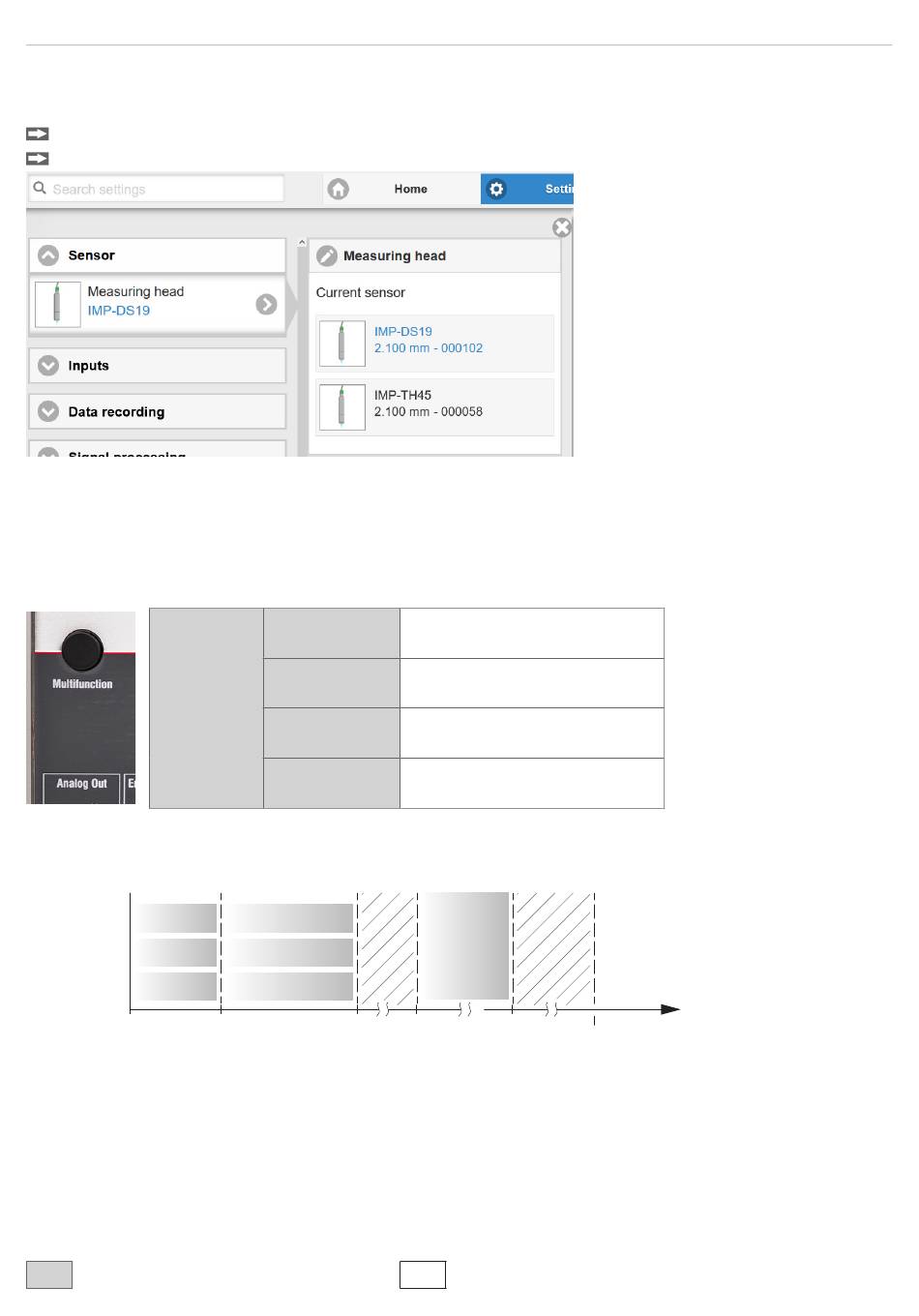

Select a Sensor

Controller and sensor(s) are matched at the factory.
Go to the Settings > Sensor menu.
Select a sensor from the list.
The calibration data of up to 20 different sensors can be stored in the controller. Calibration is done at factory only.
6.4

Button Multifunction

The Multifunction button of the controller has multiple functions. It enables, e.g., to operate the light source.
The button is factory-set to the Pilotlaser on/off feature. Modification of the assignment is possible in the
Settings > Inputs menu. Modifying the assignment requires the Professional authorization.
Key function
1 / 2
There are two defined time intervals for pressing the button; each of these can be assigned a function. All time intervals
are indicated by the LEDs flashing/lighting up.
Function 1
Master value
Pilot laser
SLED
0
Fig. 29 Button press duration
Grey shaded fields require a selection.
IMS5x00
Set / reset
master value
Pilot laser
SLED
Inactive
Function 2
2 sec 5 sec
Starts or stops mastering of the
selected signals
Turns on/off the pilot laser
Turns the light source on/off for the
sensor
Key has no function
Factory
settings
10 sec 15 sec
Value
Fields with dark border require entry of a value.
Key
lock
x min time
