Appendix | EtherCAT Documentation
A 4.11

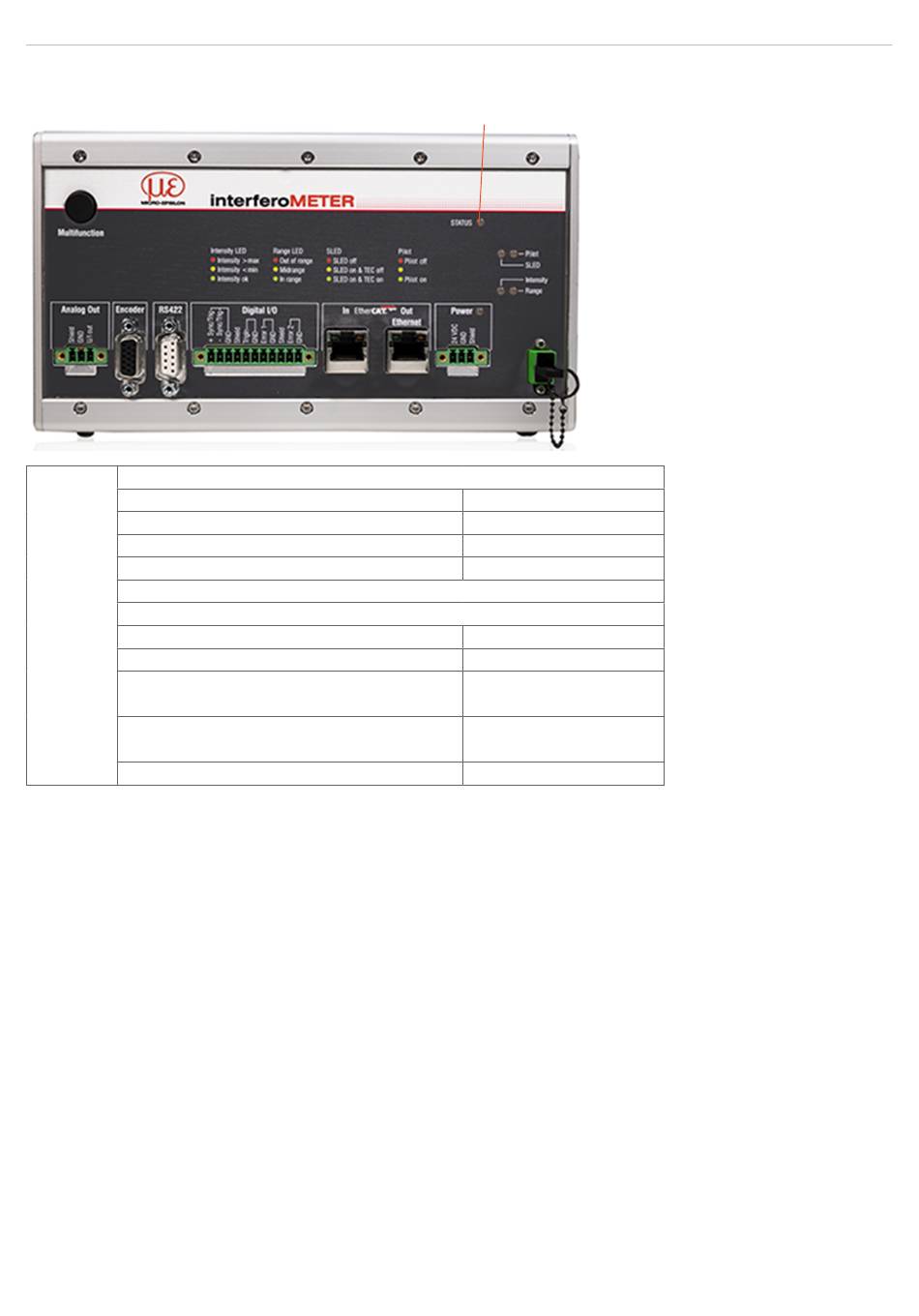

STATUS LEDs in EtherCAT Operation
Green state:
Green off
Green flashing 2.5 Hz
Green single flash, 200 ms ON / 1000 ms OFF SAFE-OP state
Green on
Red faults (displayed while green LED pauses):
Status LED
Red off
Red flashing 2.5 Hz
Red single flash, 200 ms ON / 1000 ms OFF
Red double flash, 200 ms ON / 200 ms OFF
200 ms ON 400 ms OFF
Red flashing 10 Hz
IMS 5x00
STATUS-LED
INIT state
PRE-OP state
OP state
No fault
Invalid configuration
Unrequested change of
state
Watchdog timeout
Error during initialization
Page 137
