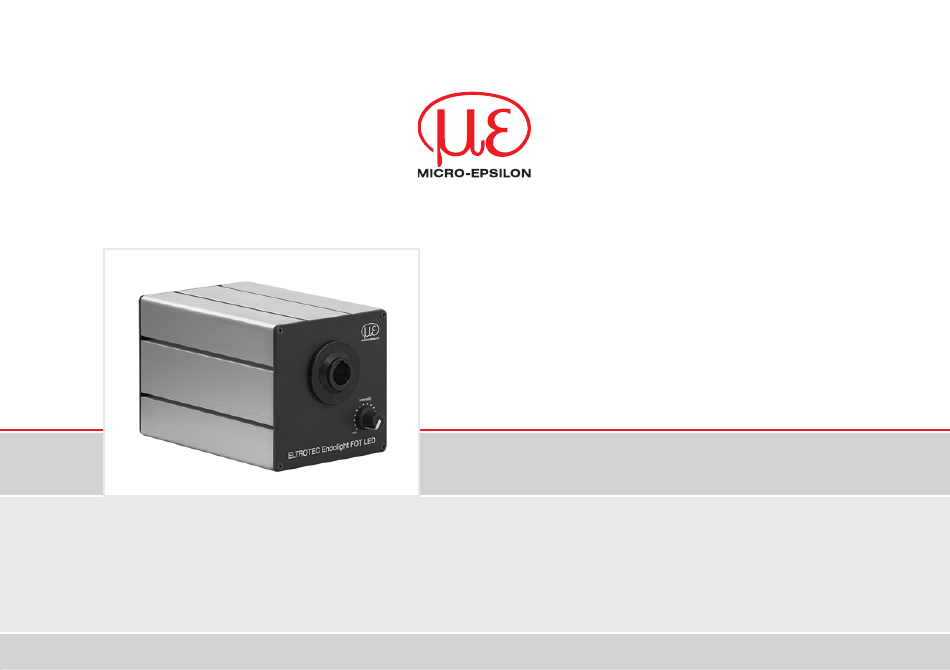

- Page 1 Instruction Manual ELTROTEC Endolight FOT LED...
- Page 2 LED light source MICRO-EPSILON Eltrotec GmbH Heinkelstraße 2 73066 Uhingen / Germany Tel. +49 (0) 7161/ 98872-300 Fax +49 (0) 7161 / 98872-303 e-mail eltrotec@micro-epsilon.de www.micro-epsilon.com Certified acc. to DIN EN ISO 9001: 2008...
-
Page 3: Table Of Contents
COM-Port ............................17 4.3.4 Status LED ............................ 17 Operation ..............................18 Commissioning .............................. 18 Operating Modes ............................19 5.2.1 ON ..............................19 5.2.2 Off ..............................19 5.2.3 MP (Multiport) ..........................20 Operation ............................... 20 Power Failure ..............................20 ELTROTEC Endolight FOT LED... - Page 4 System Status ..........................32 A 2.2.4.1 System Status (Get) ....................33 A 2.2.5 Error Reset ............................ 34 A 2.2.5.1 Failure Reset (Set) ....................... 34 A 2.2.6 Reply to an Undefined Query via the COM-Port ................34 ELTROTEC Endolight FOT LED...
-
Page 5: Safety
Make sure that there is always proper ventilation and the rear side and the ventilation slots are not covered. > Risk of fire by overheating > Damage to or destruction of the light source ELTROTEC Endolight FOT LED Page 5... -
Page 6: Notes On Ce Identification
10 by the authorities responsible at MICRO-EPSILON Eltrotec GmbH Heinkelstraße 2 73066 Uhingen / Germany The ELTROTEC Endolight FOT LED light source is designed for use in industry and endoscopy and satisfies the requirements. ELTROTEC Endolight FOT LED Page 6... -
Page 7: Proper Use
- The system may only be operated within the limits specified in the technical data, see Chap. 2.3. - Use the ELTROTEC Endolight FOT LED light source in such a way that in case of malfunctions or - failure personnel or machinery are not endangered. -
Page 8: Functional Principle, Technical Data
Functional Principle, Technical Data Short Description The Eltrotec Endolight FOT LED is an ideal light source for a variety of applications in industrial image pro- cessing and automation technology as and also for endoscopy. Eltrotec Endolight FOT LED offers a very high light intensity, a simple operating concept, and versatile remote control options. -
Page 9: Technical Data
Functional Principle, Technical Data Technical Data ELTROTEC Endolight FOT LED Model 24 VDC 10 % Power supply ± Max. 55 W Power consumption Power supply unit External universal power supply unit 24 V/60 W Reverse polarity protection Temperature control White high-power LED Light sender Active diameter 4 mm, NA = 0.54, L = 1.8 m... - Page 10 Functional Principle, Technical Data Model ELTROTEC Endolight FOT LED Housing Aluminum, anodized IP protection class IP 3X Mounting device M4 threaded rails (6 mm deep) Dimensions ( L x B x H) 168 mm x 100 mm x 100 mm Weight (without power supply unit) 1.6 kg...
-
Page 11: Light Intensity
Functional Principle, Technical Data Light Intensity Typical Light Spectrum 90 100 Setting (%) Wavelength (mm) Fig. 1 Light intensity in relation to the intensity setting Fig. 2 Typical light spectrum (High-Power LED white) ELTROTEC Endolight FOT LED Page 11... -
Page 12: Delivery
Delivery Delivery Unpacking - 1 ELTROTEC Endolight FOT LED light source - 1 Power supply unit - 1 Power supply cable - 1 Connector for multiport connection - 1 Instruction manual You will find the suitable fiber optics and fiber-optic lighting units under Optional Accessories, see Chap. -
Page 13: Mounting
> Damage to or destruction of the light source The minimum distance is 10 cm. Do not open the light source housing. The light source may only be opened by MICRO-EPSILON Eltro- tec authorized personnel, see Chap. 9., see Chap. - Page 14 The light source housing has on 4 sides thread rails for mounting with M4 screws, in each case 2 from front to the back, see Fig. The mounting points can be selected optionally along these rails. We recommend at least 4 mounting points. Cross section M4 thread Fig. 4 View on mounting rails ELTROTEC Endolight FOT LED Page 14...
-
Page 15: Operating Elements
Power supply 24 VDC Assembly thread rails M4 Ventilation slots (two rails on 4 sides) (air exhaust) Multiport connection Fan (air induction) COM-Port (standard RS232) Fig. 5 Operating elements front side and rear side ELTROTEC Endolight FOT LED Page 15... -
Page 16: Electrical Connections
Digital GND (0 V) NC (not assigned) Error output (open drain (I . 10 mA, U . 24 V) no error: open / error: closed Fig. 8 Pin assignment Multiport connection Fig. 9 6-pin. Multiport connection ELTROTEC Endolight FOT LED Page 16... -
Page 17: Com-Port
Fig. 11 9-pin. COM-Port female connection respectively RS232 interface 4.3.4 Status LED During operation, the status LED should be green. Is it out or flashes, see Chap. 8.2. Fig. 12 View on status LED ELTROTEC Endolight FOT LED Page 17... -
Page 18: Operation
Make sure that there is always proper ventilation and the rear side and the ventilation slots are not covered. CAUTION > Risk of fire by overheating > Damage to or destruction of the light source The minimum distance is 10 cm. ELTROTEC Endolight FOT LED Page 18... -
Page 19: Operating Modes
Switching the mode selector switch from the following states are reset: - Input source (set via COM-Port (7), see Fig. - Trigger logic (set via COM-Port (7), see Fig. - Error (if the error is no longer present) ELTROTEC Endolight FOT LED Page 19... -
Page 20: Mp (Multiport)
No light is emitted. Communication via the COM port is active. Power Failure If the power supply is interrupted, the current settings (input source, trigger logic) will be automatically saved in the light source. ELTROTEC Endolight FOT LED Page 20... -
Page 21: Serial Interface
Chap. Serial interface settings on the HyperTerminal: Bits/s 9600 Data bits Parity none Stop bits Flow control none Fig. 15 Screen COM21 Properties Fig. 16 Screen ASCII Setup ELTROTEC Endolight FOT LED Page 21... -
Page 22: Serial Protocol
NOTICE Cleaning Do not immerse Turn off the ELTROTEC Endolight FOT LED light source and disconnect the power supply cable from the the device in water. wall socket and from the rear side of the device. Liquid must not get Wipe the exterior surfaces using a damp cloth with mild soapy water. -
Page 23: Troubleshooting
Power supply unit must be 24 VDC 10 %/ 55 W. ± No COM-Port connection pos- No connection to COM-Port. Please check cable and con- sible. nections. Wrong COM-Port, incorrect set- Reset the settings, see Chap. tings. ELTROTEC Endolight FOT LED Page 23... -
Page 24: Warranty
The warranty period lasts 12 months following the day of shipment. Defective parts, except wear parts, will be repaired or replaced free of charge within this period if you return the device free of cost to MICRO-EPSILON Eltrotec. This warranty does not apply to damage resulting from abuse of the equipment and devices, from forceful handling or installation of the devices or from repair or modifications performed by third parties. -
Page 25: Service, Repair
Incorrect disposal may cause harm to the environment. Dispose of the device, its components and accessories, as well as the packaging materials in compli- ance with the applicable country-specific waste treatment and disposal regulations of the region of use. ELTROTEC Endolight FOT LED Page 25... -
Page 26: Appendix
EFL 1/4 1800 fiber bundle diameter: 4 mm MEP with Lemo 1 Length: 1800 mm adapter Cladding diameter: Metal protective conduit with PVC coating. One side FOT light source connector One side Lemo1 connector. ELTROTEC Endolight FOT LED Page 26... - Page 27 150 mm, outer diameter Lightly angled, 3 mm, bundle diameter 2 mm for the UST/C illumination of drill holes, specially for tool making Rigid probe 21060547 Angled at 90°, UST/B, r = 10 mm ELTROTEC Endolight FOT LED Page 27...
- Page 28 US2 mirror on fixture, ø 25 mm 21060431 USP mirror fixture Focussing lens 21060438 Focussing lens, UFL 21060438; attachable to UL fiber optic More fiber optics or faser-optic lighting units are available on request. ELTROTEC Endolight FOT LED Page 28...
-
Page 29: A 2 Ascii Communication
System status Chap. A 2.2.4.1 >gsCLRF System status Error reset Chap. A 2.2.5.1 >syCLRF Error reset Reply to an undefined query via the COM-Port Chap. A 2.2.6 Response to an undefined request via the COM-Port ELTROTEC Endolight FOT LED Page 29... -
Page 30: A 2.2 Commands
>giCRLF Reply >gi00555CRLF Value 00555 = 555 * 0.1 % = 55.5 % A 2.2.1.3 Firmware/Software Version (Get) >gzCRLF Query >gzCRLF Reply >gz00010CRLF Value 00010 = 10 * 0.1 % = 1.0 (Version 1.0) ELTROTEC Endolight FOT LED Page 30... -
Page 31: A 2.2.1.4 System Temperature (Get)
The source for the intensity setting can be selected with 3 different commands: A 2.2.2.1 Potentiometer (Set) >spCRLF Query >spCRLF Reply >spCRLF A 2.2.2.2 Analog Input (Set) >saCRLF Query >saCRLF Reply >saCRLF A 2.2.2.3 COM-Port (Set) >srCRLF Query >srCRLF Reply >srCRLF ELTROTEC Endolight FOT LED Page 31... -
Page 32: A 2.2.3 Setting The Trigger Logic
A 2.2.3.1 Trigger Low-Active (Set) >slCRLF Query >slCRLF Reply >slCRLF A 2.2.3.2 Trigger High-Active (Set) >shCRLF Query >shCRLF Reply >shCRLF A 2.2.4 System Status The system status can be read out in all operating settings (On, Off, MP). ELTROTEC Endolight FOT LED Page 32... -
Page 33: A 2.2.4.1 System Status (Get)
4 = MP 8 = Internal use only 16 = Error Source for intensity setting 1 = Potentiometer 2 = Analog input 4 = COM-Port Trigger logic = High-active = Low-active Fig. 17 Declaration of value variables ELTROTEC Endolight FOT LED Page 33... -
Page 34: Error Reset
>syCRLF A 2.2.6 Reply to an Undefined Query via the COM-Port In case of undefined queries via COM-Port or a timeout the light source replies with an Error Query undefined or timeout Reply >errCRLF ELTROTEC Endolight FOT LED Page 34... - Page 36 MICRO-EPSILON Eltrotec GmbH X9751281-B021076HDR Heinkelstr. 2 · 73066 Uhingen / Germany Tel. +49 (0) 7161 / 98872-300 · Fax +49 (0) 7161 / 98872-303 *X9751281-B02* eltrotec@micro-epsilon.de · www.micro-epsilon.com...
