Installation

5. Installation
5.1

IMC5x00 Controller

Place the IMC5x00 controller on a level surface or install it, e.g., in a control cabinet using a mounting rail (top-hat rail
TS35) according to DIN EN 60715 (DIN rail).
When mounting the controller onto a DIN rail, an electrical connection (potential equalization) is established between the
controller housing and the mounting rail.
To remove the controller, push it upwards and pull it forwards.
i
Position the controller so that the connections, controls and displays are not concealed.
(Feeds can be removed)

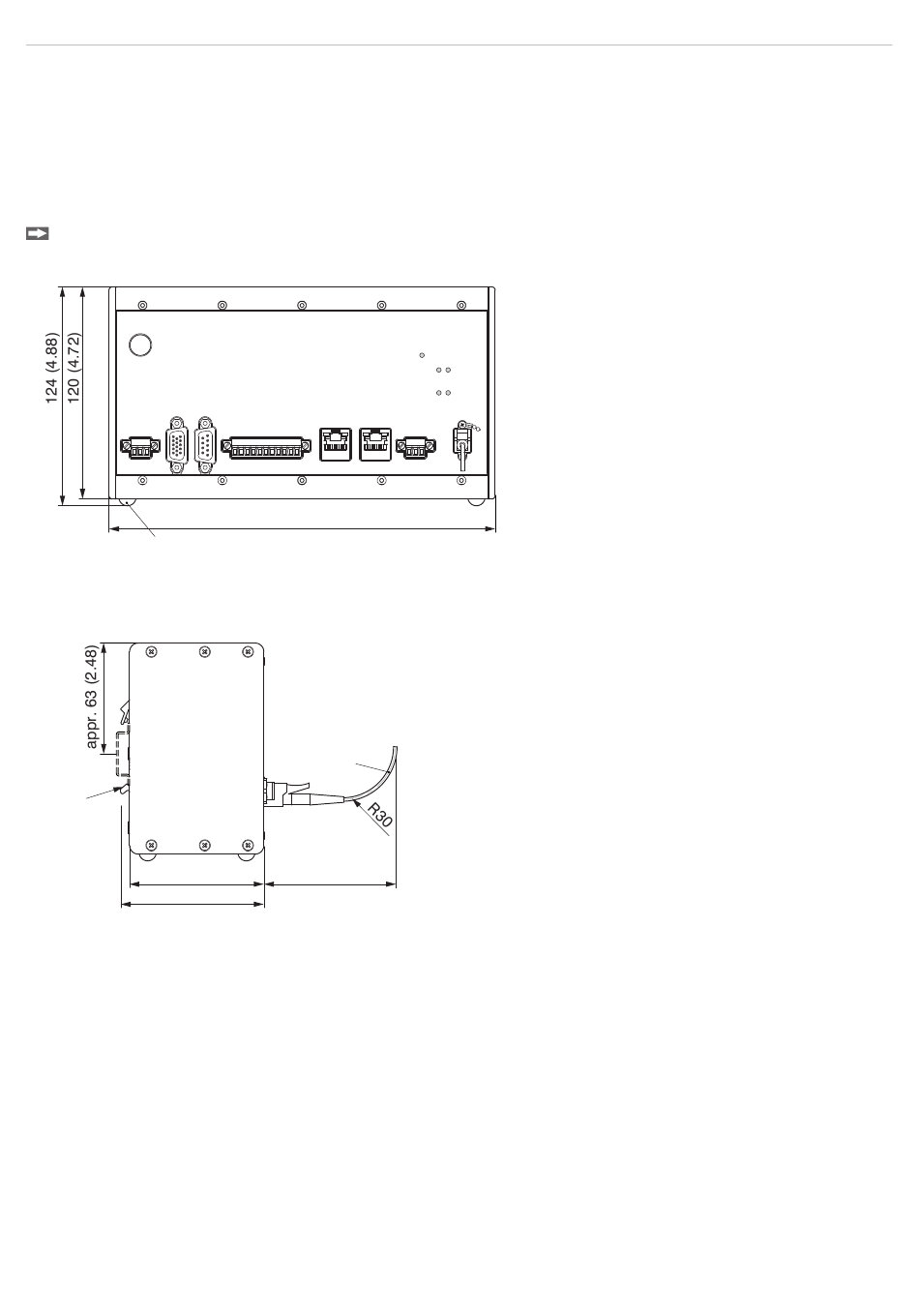

Fig. 5 Dimensional drawing, front view of IMC5x00 controller, dimensions in mm (inches)
DIN rail
fastener
76.2 (3.00)
81.2 (3.20)
Fig. 6 Dimensional drawing, side view of IMC5x00 controller, dimensions in mm (inches)
IMS5x00
218 (8.58)
Sensor
cable
Other cables:
less space
appr. 75 (2.95)
