PDR8000
OPERATION WITH
The PDR8000 Tx Output Power is programmed for each individual channel in the Deployment
"Channel Setup'. The PDR8000 can transmit max 20W (43 dBm) output power at it's Tx Port.
When the Booster pack is connected to the PDR8000 as shown in Fig 3 & Fig 4, the PDR8000
automatically detects the presence of the Booster pack and adjusts it's Output Tx Power on the
selected channel to 1.75W (32.5 dBm). The RF output at the Booster pack is 50W (47 dBm).
The screen shots below; of the PDR8000 Futurecom Repeater Configurator (FRC) Monitoring
window indicate the Tx RF Power with and without the Booster pack connected to the
PDR8000.
•

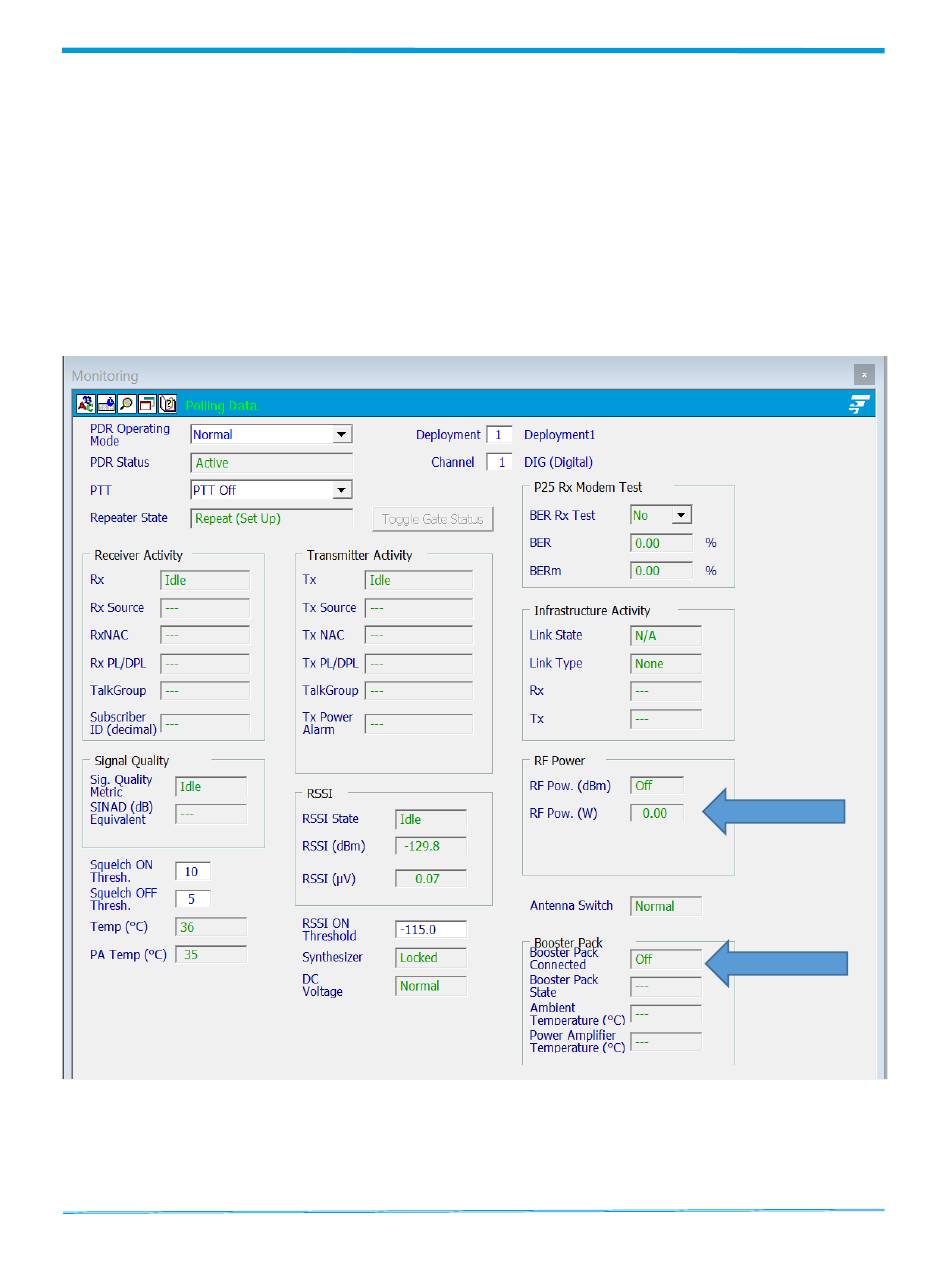

The Monitoring window indicates that PDR8000 is not transmitting, and no Booster pack
connected to the PDR8000.
•
The PDR8000 on Deployment1, Channel DIG. Programmed Tx Power 20W (43dBm).
