PDR8000® Portable Digital Repeater Programming Guide

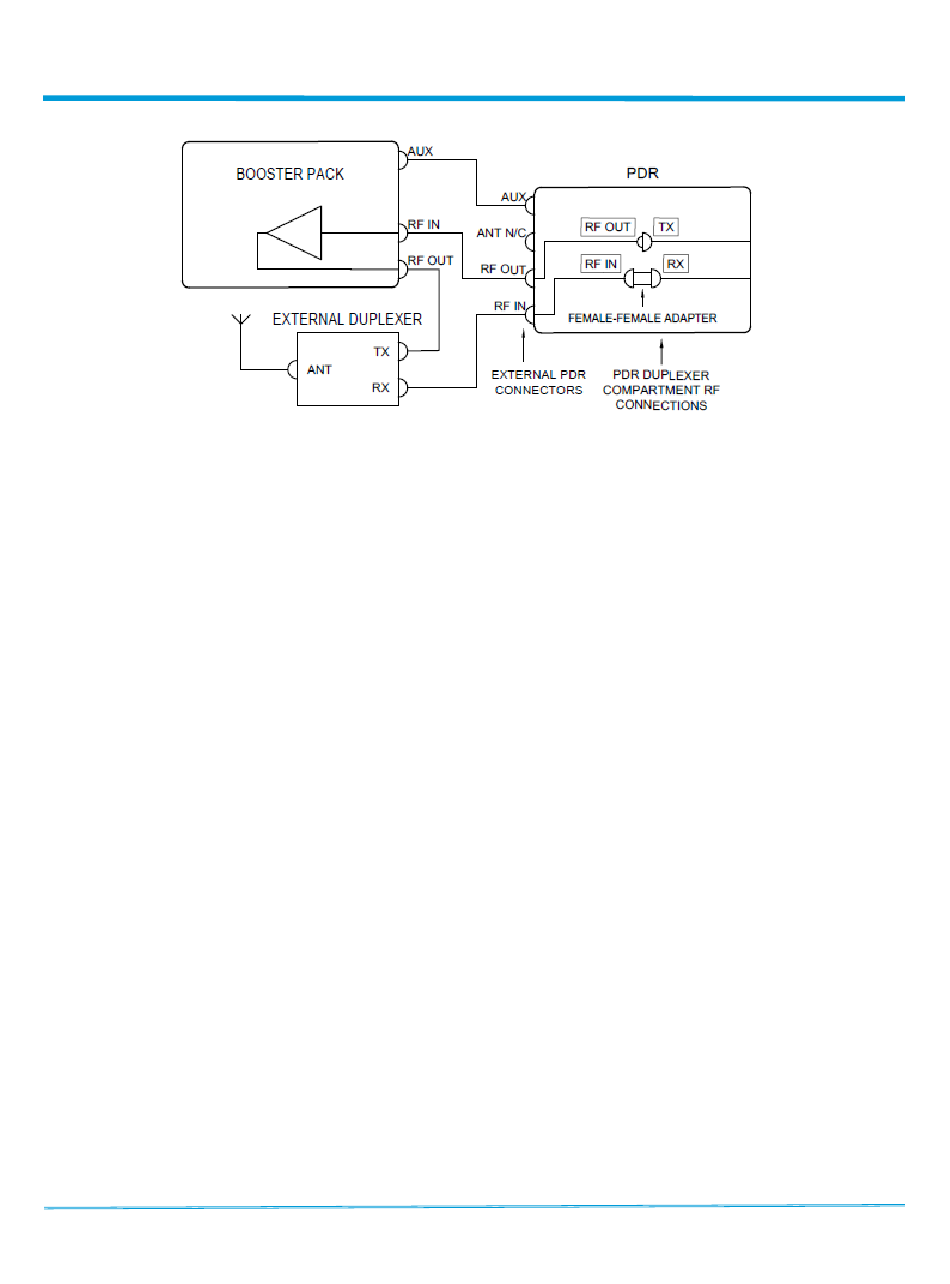

Figure 3 - External Duplexer and Booster Pack Hardware Configuration

PDR8000 operation with Booster Pack

The PDR8000 Tx Output Power is programmed for each individual channel in the Deployment "Channel
Setup'. The PDR8000 can transmit max 20W (43 dBm) output power at it's Tx Port.
When the Booster pack is connected to the PDR8000 as shown in Fig 3 & Fig 4, the PDR8000
automatically detects the presence of the Booster pack and adjusts it's Output Tx Power on the selected
channel to 1.75W (32.5 dBm). The RF output at the Booster pack is 50W (47 dBm).
The screen shots below; of the PDR8000 Futurecom Repeater Configurator (FRC) Monitoring window
indicate the Tx RF Power with and without the Booster pack connected to the PDR8000.
