PDR8000 B
AND OOSTER
Multiple RF hardware configurations of the PDR8000 and the Booster Pack are supported,
using accessible internal and external connection points to enable the desired configuration.

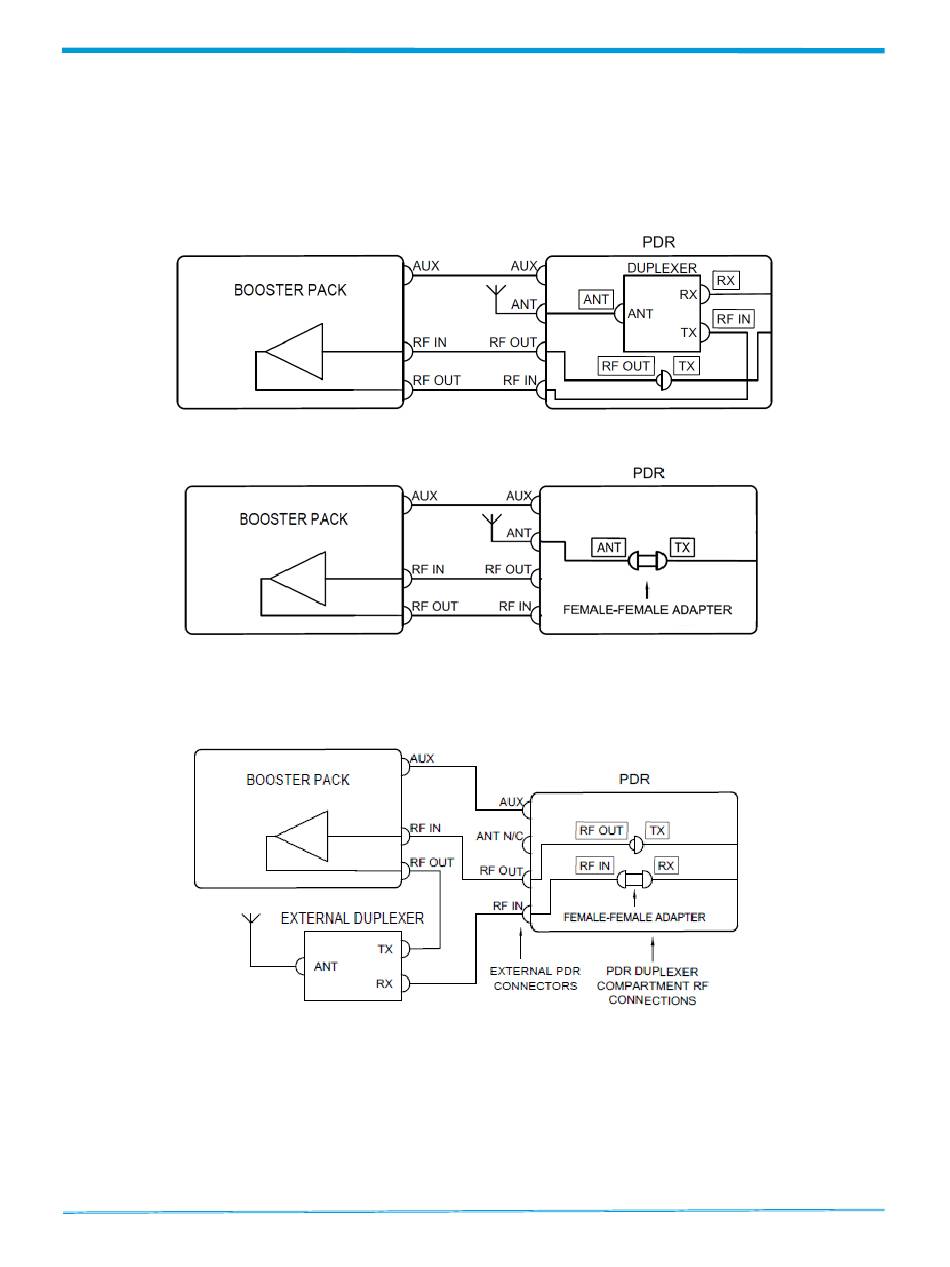

The figures below show the interconnection between the PDR8000 and the Booster pack.
These figures are also screened on the back of the removable top panel inside the PDR8000.
Figure 3 - Internal Duplexer and Booster Pack Hardware Configuration
Figure 2 -Simplex PDR8000 and Booster Pack Hardware Configuration
Figure 3 - External Duplexer and Booster Pack Hardware Configuration
