3�6�- CONNECTION DIAGRAMS
3�6�1�- 3-PHASE MAINS MEASUREMENT WITH 4-WIRE CONNECTION
V
A
L1
L2
L3
CARGA / LOAD
N

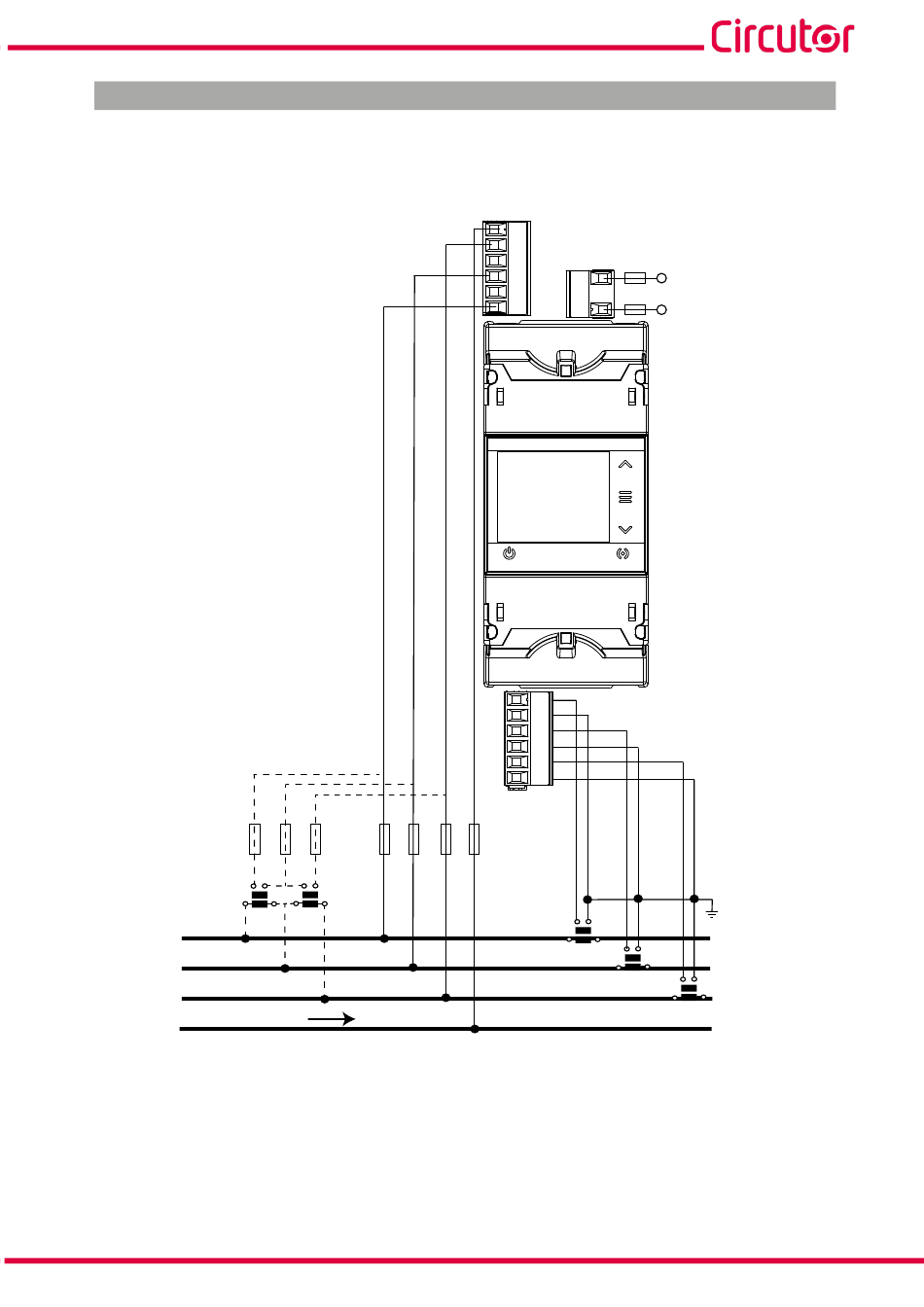

Figure 11: 3-phase mains measurement with 4-wire connection: Current transformers���/5A , ���/1A o MC1 (���/0�250A)�
Note: Do not connect the MC current transformers to earth.
