6.- CONFIGURATION
The line-CVM-D32 device is configured using 8 menus,
To access the configuration menu, hold down (>2s) key
Instruction Manual
230.
00
V
AVG
5.
00
A
AVG
50.
00
Hz
1.
00
cos
LIII
INST T1
PRIMARY VT
1.0
V
MEASURE, Measurement parameters
SECONDARY VT
1.00
V
MEASURE
SETUP
NOMINAL VOLTAGE
230.0
V
EVQ, Quality parameters
NOMINAL FREQUENCY
50
Hz
EVQ
SETUP
DATE FORMAT
DD/MM/YY
DATE, Device clock
SETUP
DATE
PERIPH. NUMBER
1
MODBUS, Communications
BAUDRATE
9600
bps
SETUP MODBUS
RATIO T1+
0.00000
kgCO2 -EUR, Ratio
RATIO T2+
0.00000
kgCO2
SETUP
VARIABLE
1
V1
OUT1, Digital output 1
OUT1
SETUP
VARIABLE
1
V1
OUT2, Digital output 2
OUT2
SETUP
MODE
IMPULSE
Configuration of the expansion
NAME modules
IN1
SLOT1
SETUP D IN1

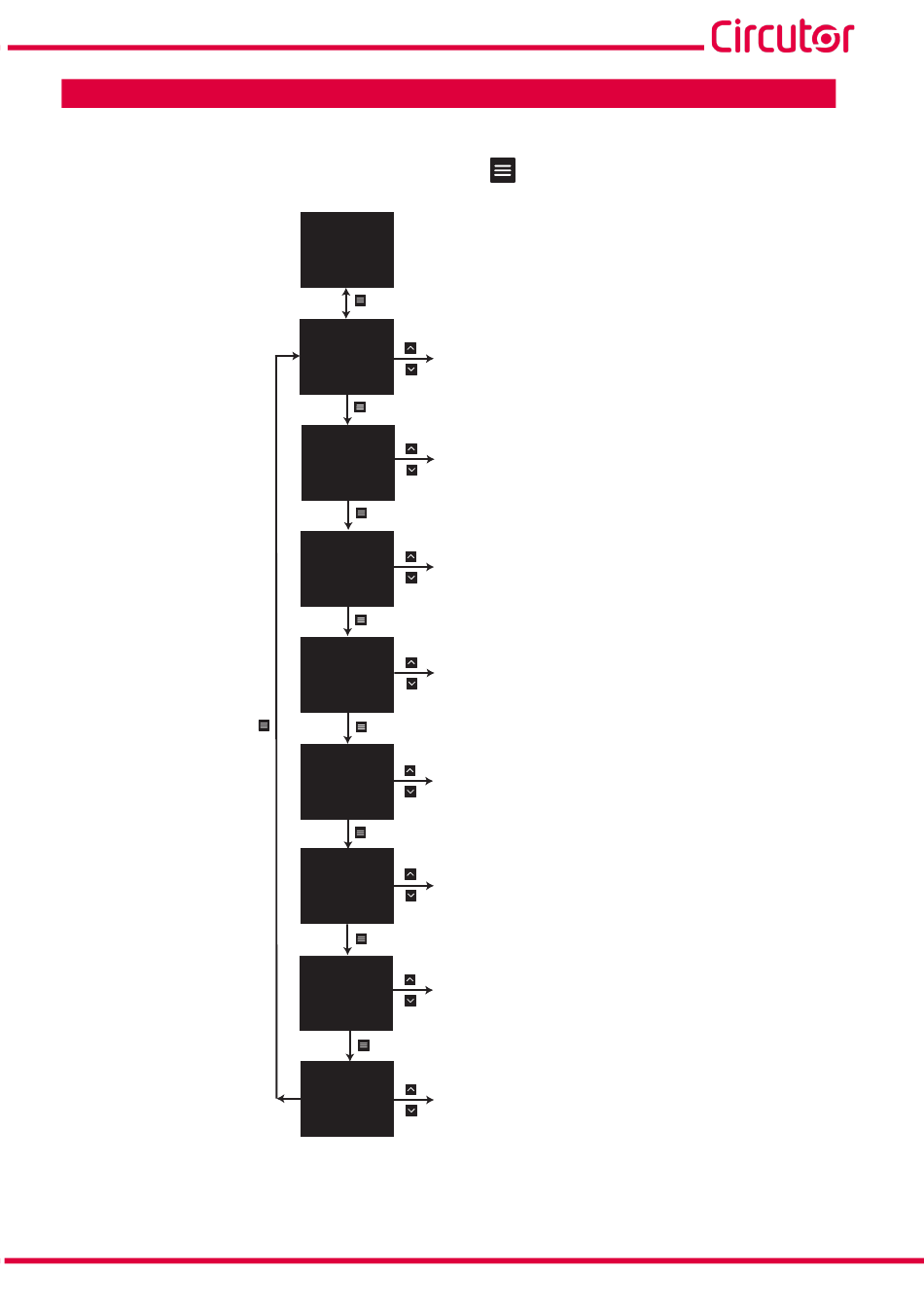

Figure 29: Configuration menu�
