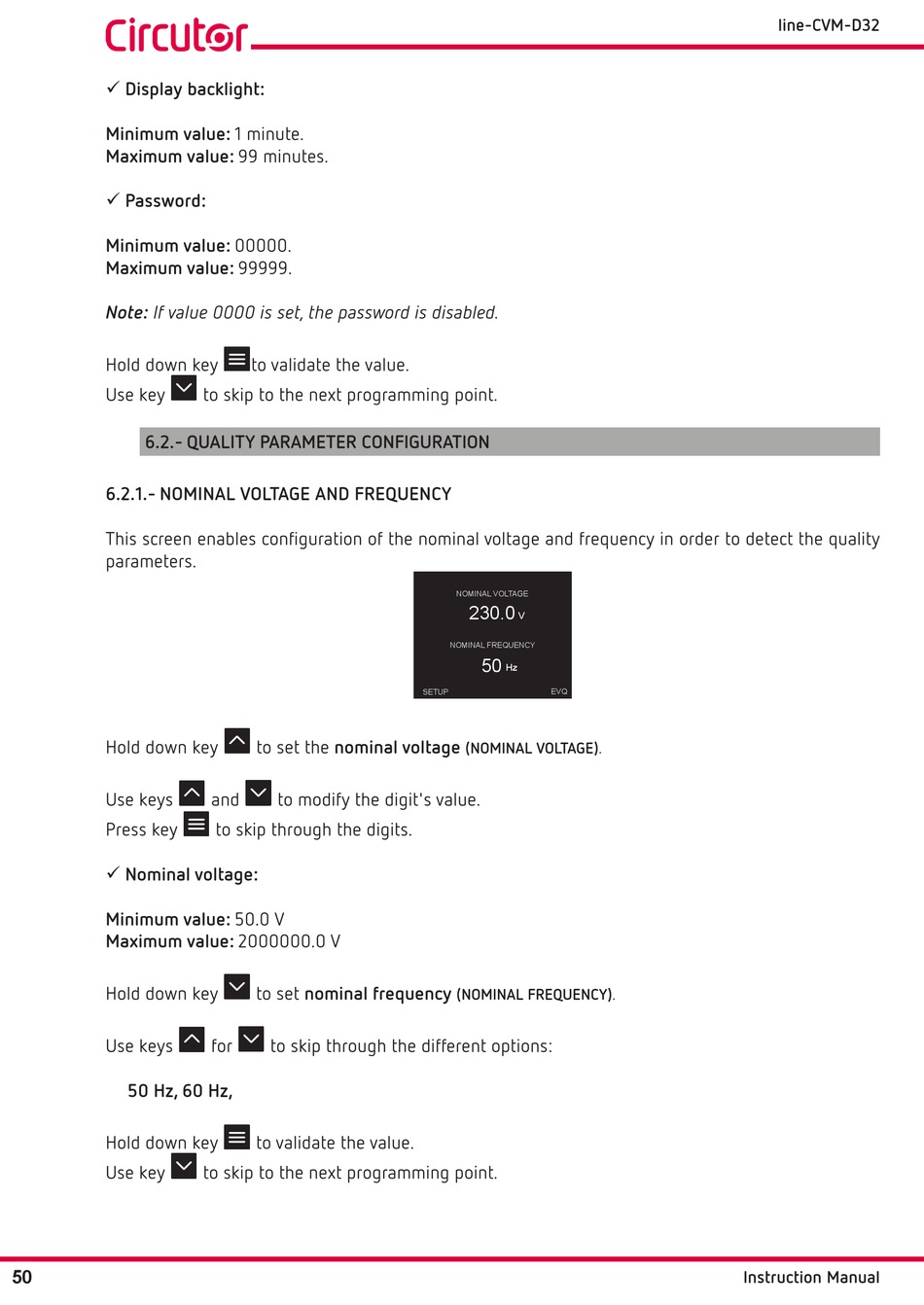

6�2�- Quality Parameter Configuration; 6�2�1�- Nominal Voltage And Frequency - Circutor Line-CVM-D32 Instruction Manual

 Display backlight:
Minimum value: 1 minute.
Maximum value: 99 minutes.
 Password:
Minimum value: 00000.
Maximum value: 99999.
Note: If value 0000 is set, the password is disabled.
Hold down key
Use key
6�2�- QUALITY PARAMETER CONFIGURATION
6�2�1�- NOMINAL VOLTAGE AND FREQUENCY
This screen enables configuration of the nominal voltage and frequency in order to detect the quality
parameters.
Hold down key
Use keys
Press key
 Nominal voltage:
Minimum value: 50.0 V
Maximum value: 2000000.0 V
Hold down key
Use keys
50 Hz, 60 Hz,
Hold down key
Use key
50
to validate the value.
to skip to the next programming point.
to set the nominal voltage
and to modify the digit's value.
to skip through the digits.
to set nominal frequency
for to skip through the different options:
to validate the value.
to skip to the next programming point.
NOMINAL VOLTAGE
230.0
V
NOMINAL FREQUENCY
50
Hz
SETUP EVQ
(NOMINAL VOLTAGE).
(NOMINAL FREQUENCY).
line-CVM-D32
Instruction Manual
