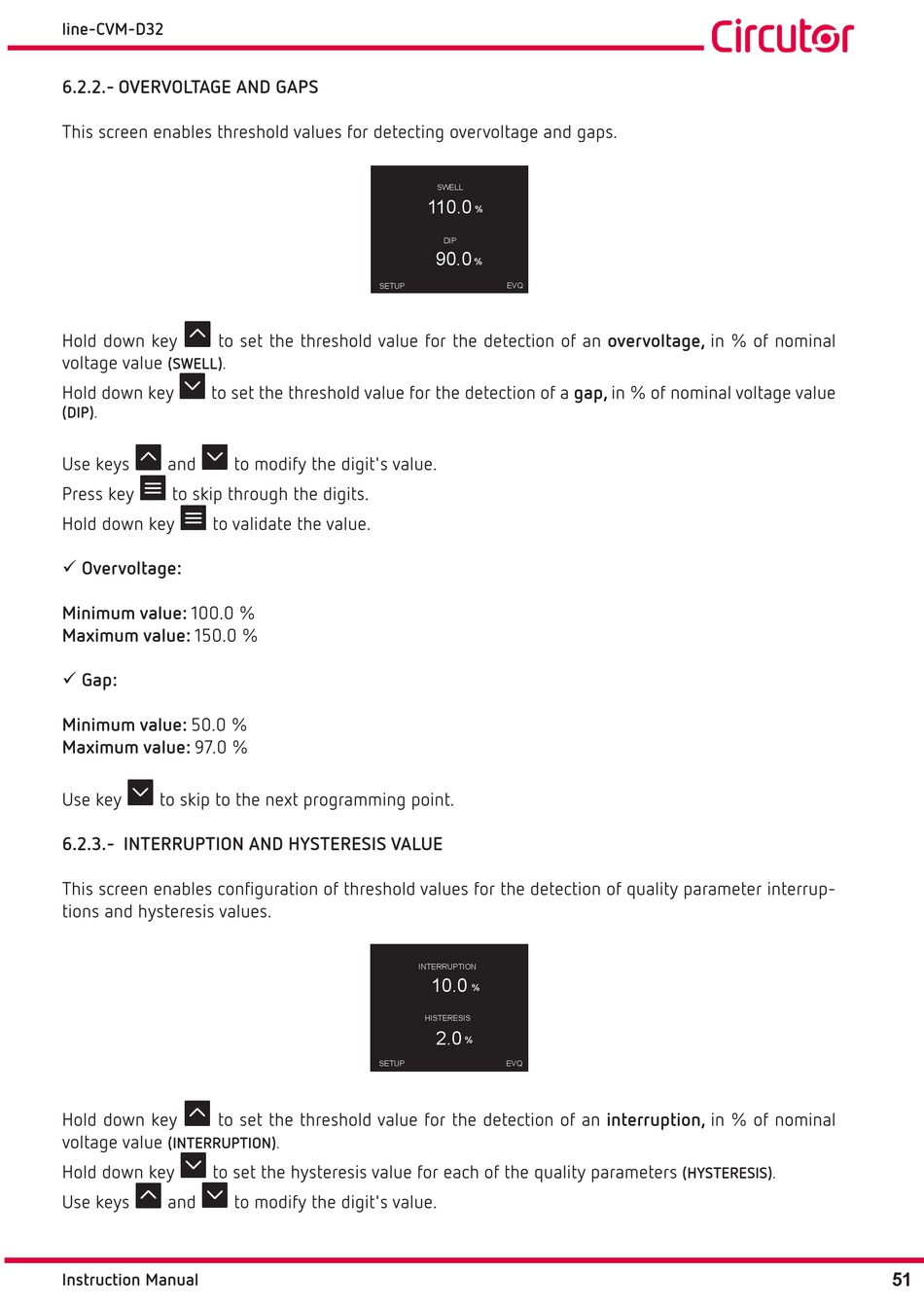

6�2�2�- OVERVOLTAGE AND GAPS
This screen enables threshold values for detecting overvoltage and gaps.
to set the threshold value for the detection of an overvoltage, in % of nominal
Hold down key
voltage value
(SWELL).
Hold down key to set the threshold value for the detection of a gap, in % of nominal voltage value
(DIP).
Use keys and to modify the digit's value.
Press key to skip through the digits.
Hold down key to validate the value.
 Overvoltage:
Minimum value: 100.0 %
Maximum value: 150.0 %
 Gap:
Minimum value: 50.0 %
Maximum value: 97.0 %
Use key to skip to the next programming point.
6�2�3�- INTERRUPTION AND HYSTERESIS VALUE
This screen enables configuration of threshold values for the detection of quality parameter interrup-
tions and hysteresis values.
Hold down key to set the threshold value for the detection of an interruption, in % of nominal
voltage value
(INTERRUPTION).
Hold down key to set the hysteresis value for each of the quality parameters
Use keys and to modify the digit's value.
Instruction Manual
SWELL
110.0
%
DIP
90.0
%
EVQ
SETUP
INTERRUPTION
10.0
%
HISTERESIS
2.0
%
SETUP EVQ
(HYSTERESIS).
