3�5�1�- Line-M-EXT-PS POWER ADAPTER
Line-M-EXT-PS is a power adapter belonging to the Line family of devices. The module connects to
the left-hand side of the devices to be fed. It can supply up to 10 VA, allowing it to power a limited
number of devices.
The maximum set it can supply is: 1 line-EDS + 1 line-CVM + 1 line-M (
Multiple line-M-EXT-PS devices can be connected to supply sets with power above 10VA. Each line-
M-EXT-PS will power the devices connected to its right-hand side (
line-M-EXT-PS line-EDS
Note: None of the line-EDS or line-CVM devices should be connected to the auxiliary power supply.
3�5�2�- INSTALLATION
Before installing a new device, it must be disconnected from all power supplies.
The correct steps to connect the devices are:
1�- Using a flat head screwdriver, remove the expansion connector's protective covers located on the
side of the devices, (
Figure 8
Instruction Manual
line-M-EXT-PS
line-EDS

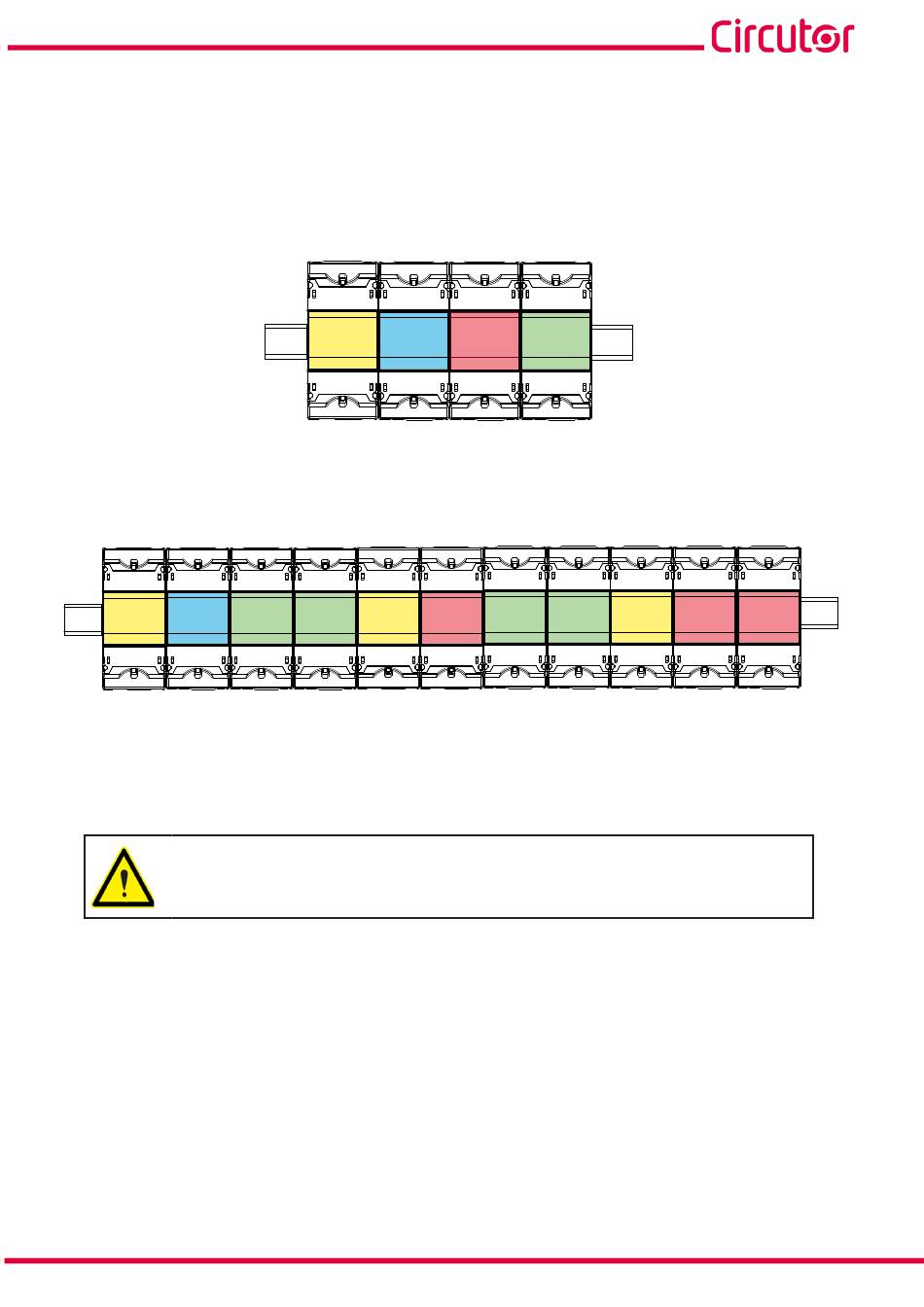

Figure 6: Maximum set a line-M-EXT-PS can supply�
line-M-EXT-PS
line-M line-M
Figure 7: Multiple line-M-EXT-PS connection�
).
Figure 6
line-CVM
line-M
Figure 7
line-CVM line-M line-M
).
).
line-M-EXT-PS
line-CVM line-CVM
