POWER ANALYZER
CVM-MINI-Ethernet
This manual is a quick guide to the use and operation of
the CVM-MINI-ITF & CMV-MINI-MC with Ethernet
connection. For more information, the whole manual
may be downloaded from CIRCUTOR's web page:
www.circutor.es
Before any maintenance, modification to the
connections, repair, etc., the equipment must be
disconnected from the supply. If any operation or
protection fault is suspected the equipment must
remain out of service ensuring against any accidental
reconnection. The equipment is designed to be changed quickly
in the event of any breakdown.

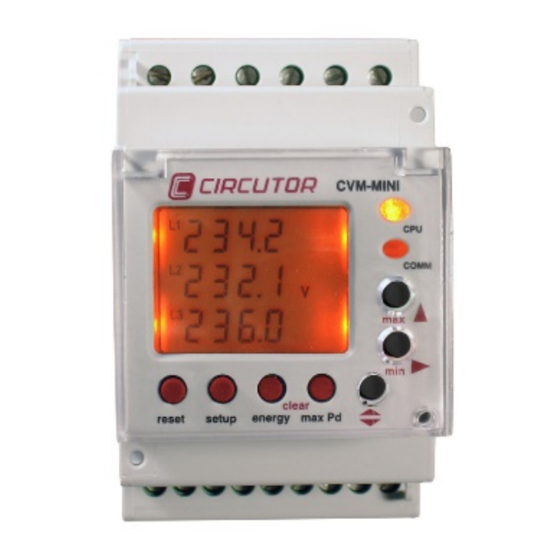

The CVM-MINI is an instrument which measures,
calculates and displays the main electrical parameters
for three-phase industrial systems (balanced or
unbalanced). Measurements are in true effective value,
via three AC voltage inputs and three AC. current
I
inputs. (via / 5 A or 1 A the ITF version and
n
MC version). The parameters measured and calculated
are shown in the variables table, paragraph 7.
1.- INSTALLATION
The equipment is mounted on DIN rail. Also the device
has to be provided of an magnetic-thermal switch to be
disconnected. The fuses has to be type gl (IEC 269) or
type M between 0,5 to 2 A.
2.- ETHERNET NETWORK SETUP

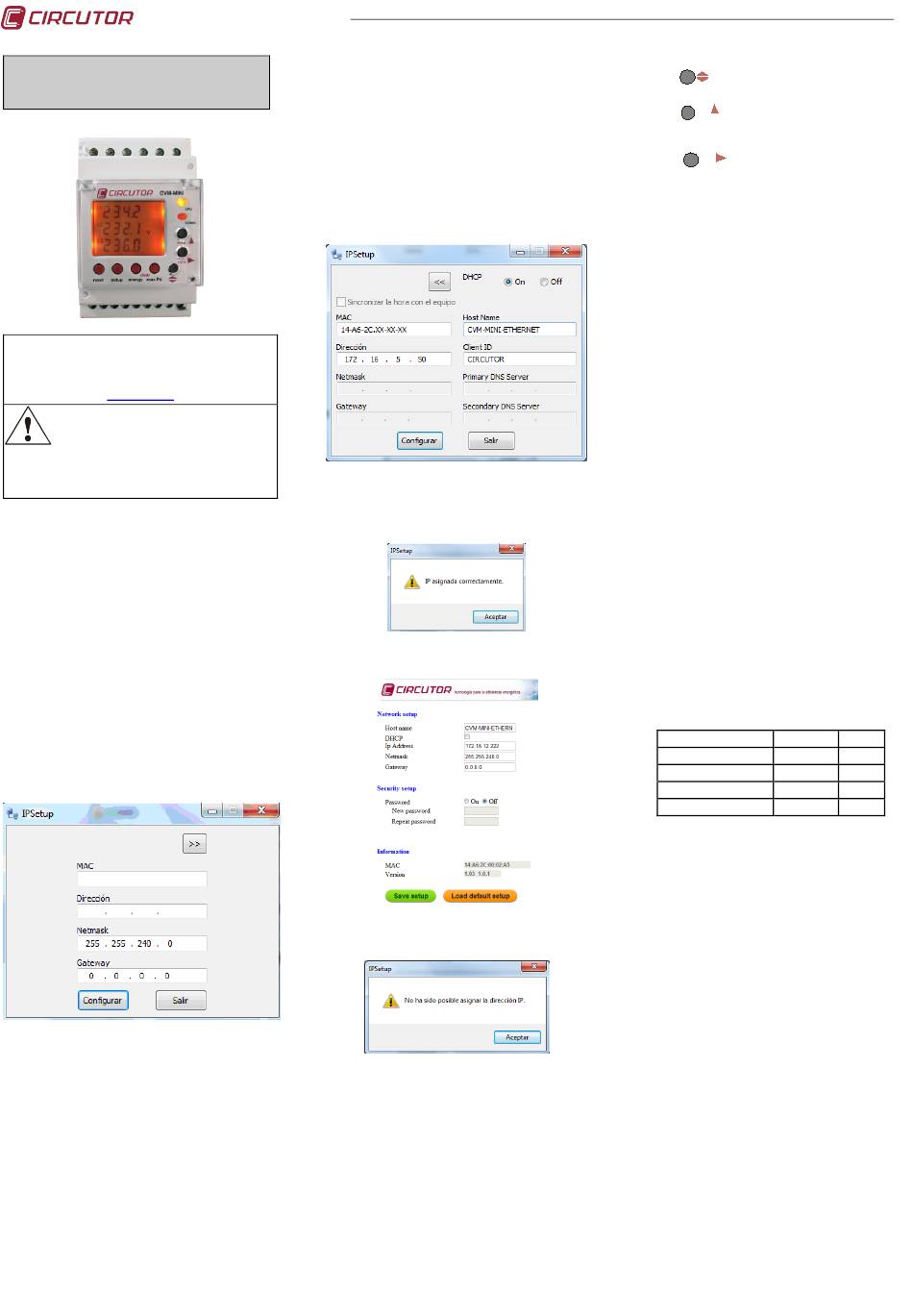

The configuration software, IPSETUP.EXE, is available
from the CIRCUTOR Web site. It must be executed
under Windows operative system. Once executed it will
appear the following screen
In the field "MAC" it must be typed the physical address
of the unit using scripts as separator, this data is
showed on to the lateral label of the equipment and the
format is 14:A6:2C:XX:XX:XX.
In to the field "Dirección", type the assigned IP
address to the equipment into the local area network
Into the field "Netmask" type the mask for the network.
In case of routing the equipment in a different network,
setup the field "Gateway" with the IP address of the
device that allows the route. For example, if the
equipment must be accessible from Internet, will be
necessary setup the IP address for the ADSL router
that allows the Internet connection. Also the router will
need convenient programming to allow Internet enroute
and enable the traffic from/to the CVM-MINI-Ethernet.
If it is not the case leave the filed "Gateway" in blank.
CVM-MINI-Ethernet
3.- DHCP IP assignment
To assign the DHCP name, choose this option using
the arrow on the upper right, and select "On". Once the
configuration fields have been enabled, enter the
"MAC" address that can be seen on the permanent side
label attached to the device, the format of which is
14:A6:2C:XX:XX:XX. In the "Dirección" field, enter an
unused, temporary IP address, which is within the
working range of your computer. In the "Host Name"
field, enter the DHCP name to be assigned to the
equipment. Optionally, the user can configure the
parameters
"VendorID" of the device is CIRCUTOR.
Once the parameters have been configured click on
"Configurar"
If the equipment is detected into the Ethernet network,
it will appear the following screen.
I
0,25A
n
By clicking "Aceptar" the internal setup WEB page of
the equipment will be displayed.
If the equipment is not detected on the local network it
will appear the following screen.
Review the settings assigned to the computer, check
the connection to the router and the Ethernet
Connector LEDs are lit and / or blink. The LED on the
left side of the connector is the link status and the LED
on the right side indicates activity receive / transmit TX
/ RX. Both can be lit in green or amber color. If
everything appears correct, consult with your admin for
the local area network.
of the "ClientID" field. The
4.- SETTING (SETUP menu)
(Press SETUP key for 5 seconds)
 The key validates the information and moves
on to the next menu.
max
 The key allows the different options in a
menu to be selected or increases a digit where a
variable is being entered.
min
 The
among the digits.
The different options are sequentially described below.
default
4.1.- Voltage transformer primary
On screen the words "
digits. These allow the voltage transformer primary to be
set (from to ).
1 100,000
4.2.- Voltage transformer secondary
On screen the words "
These allow the voltage transformer secondary to be set (from
1 to 999 ).
4.3.- Current transformer primary
The display show "
SET PriA
the current transformer primary to be set (from
In the case of using a transforming system type MC1,
introduces the
corresponding to the relation of the selected physical
wiring. In case of using type MC3, introduces the value
of the primary that appears in the label of the
transformer.
4.4.- Current transformer secondary.
The display show " SET SecA
allowed between 1 and 5 A. In the MC version, this parameter
is not available in the equipment configuration menu.
Measurement in 2 or 4 quadrants (power
4.5.-
consumption and/or generation).
On screen the words "
( 2 =Power consumption /
generation)
4.6.- Setting the Power demand meter:
a) Electrical parameter to control: ("
None
Three-phase active power
Three-phase apparent power
Three-phase current
Current per phase
Integrated parameter value according to the set period.
b) Integration period (1....60 minutes): ("
c) Clear maximum value recordings of Pd: ("
") " " or " ".
no
no YES
4.7.- Setting display or omitting screens
This option allows the page display format to be
displayed (" dEF Page YES / no
I.YES | Standard: se all electrical parameters are
displayed.
II.no | Custom: by using the "
pages to be displayed when the equipment is on
are selected.
4.8.- Setting the start screen
This option allows select the screen and selection
mode of display screens ("
I.Fixed page: selects which page from the possible
pages will appear first when applying voltage (or
on RESETTING) to the CVM-MINI -Ethernet .
II.Rotating pages: selecting rotating pages (when all
of the electrical parameters flash), automatically
rotates, every 5 seconds it moves on to the
following screen.
M98240101-03-18A
key is used to move the cursor
" appear followed by 6
SET PriU
" appear followed by 3 digits.
SET SEcU
" followed by 5 digits. These allow
to ).
1 10,000
primary of the transformer
". In the ITF versions, selection is
SET QuAd " appear
4 =consumption and
"):
SET Pd Code
00
kW III
16
kVA III
34
AIII
36
A1-A2-A3
A-ph
")
Pd Per 15
CLr Pd
"):
" or " " option the
YES no
SET iniT page "):
