Protection and monitoring station
CBS-40A, CBS-400A
INSTRUCTION MANUAL
(M393B01-03-23A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBS-40A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Circutor CBS-40A

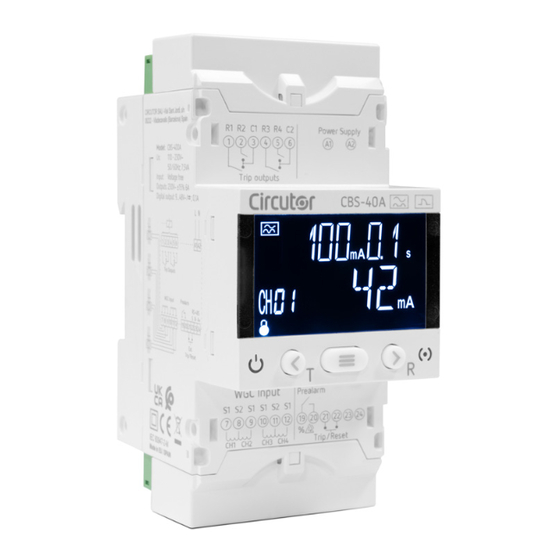

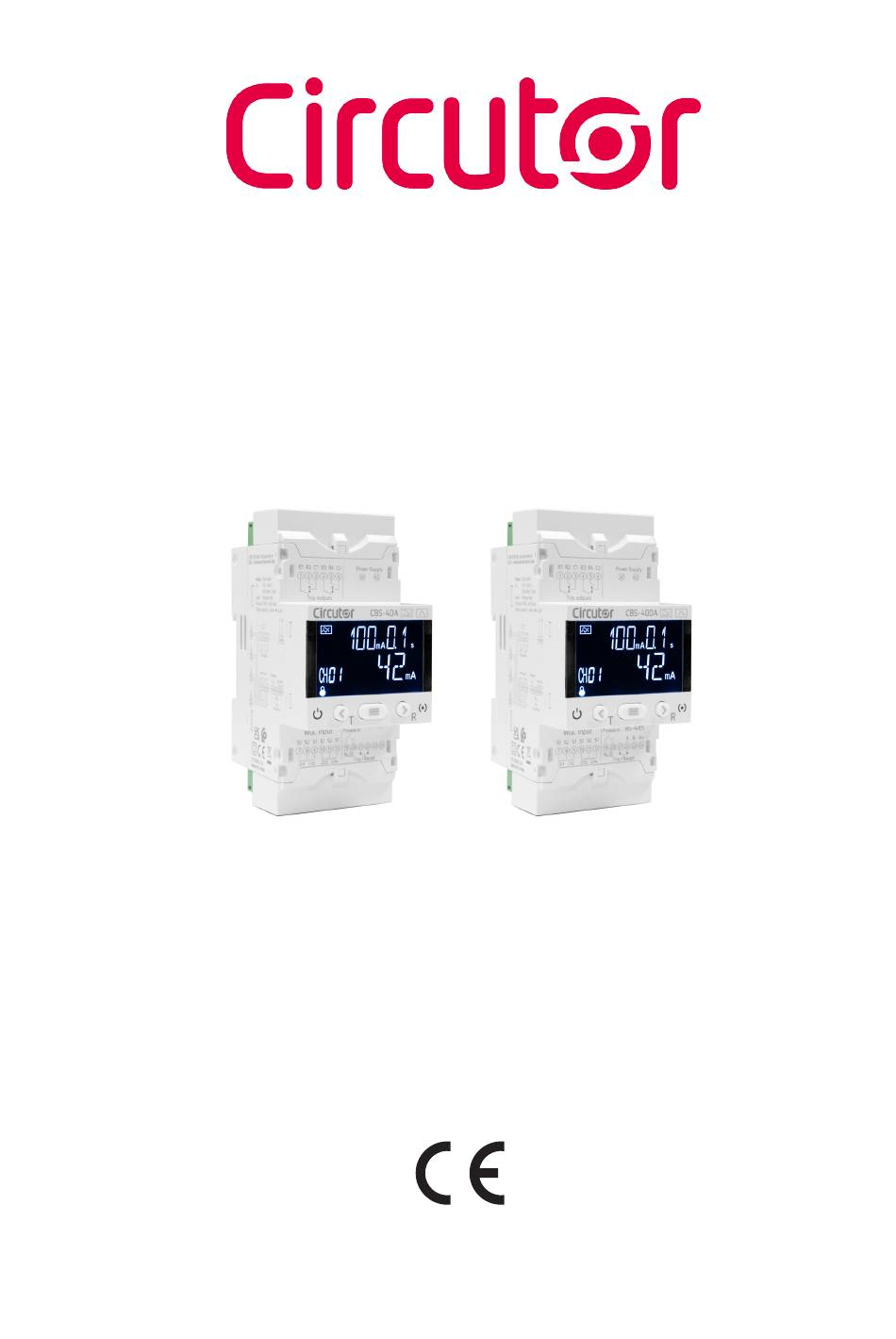

  • Page 1 Protection and monitoring station CBS-40A, CBS-400A INSTRUCTION MANUAL (M393B01-03-23A)
  • Page 2 CBS-40A, CBS-400A Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR S�A�U� reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S�A�U� on its web site, supplies its customers with the latest versions of the device specifi- cations and the most updated manuals.
  • Page 4: Table Of Contents

    3�1 - PRELIMINARY RECOMMENDATIONS�������������������������������������������������������������������������������������������������������������������������8 3�2�- INSTALLATION ���������������������������������������������������������������������������������������������������������������������������������������������������������8 3�3 - PANEL MOUNTING ACCESSORY (72 x 72 mm) ���������������������������������������������������������������������������������������������������������9 3�4 - DEVICE TERMINALS ����������������������������������������������������������������������������������������������������������������������������������������������� 10 3�4�1� CBS-40A ����������������������������������������������������������������������������������������������������������������������������������������������������������� 10 3�4�2� CBS-400A ����������������������������������������������������������������������������������������������������������������������������������������������������������11 3�5 - WGS/WGC TRANSFORMERS ����������������������������������������������������������������������������������������������������������������������������������11 3�5�1� PANEL INSTALLATION �����������������������������������������������������������������������������������������������������������������������������������������11 3�5�2� INSTALLATION ON A DIN RAIL �������������������������������������������������������������������������������������������������������������������������� 12 3�5�3�...
  • Page 5 8�3�2�- TRIPPING DUE TO TEST OR COMMUNICATIONS �������������������������������������������������������������������������������������������� 41 8�3�3�- DEVICE CONFIGURATION VARIABLES ������������������������������������������������������������������������������������������������������������ 41 9- TECHNICAL FEATURES ���������������������������������������������������������������������������������������������������������������������������������������������������43 9�1 - CBS-40A / CBS-400A ���������������������������������������������������������������������������������������������������������������������������������������������43 9�2 - WGS/WGC ��������������������������������������������������������������������������������������������������������������������������������������������������������������46 10 - MAINTENANCE AND TECHNICAL SERVICE ����������������������������������������������������������������������������������������������������������������� 50 11�- GUARANTEE ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 50 12 - EU DECLARATION OF CONFORMITY ����������������������������������������������������������������������������������������������������������������������������...
  • Page 6: Revision Log

    CBS-40A, CBS-400A REVISION LOG Table 1: Revision log� Date Revision Description 06/23 M393B01-03-23A First Version SYMBOLS Table 2: Symbols� Symbol Description In accordance with the relevant European directive. Device covered by European Directive 2012/19/EC. At the end of its useful life, do not discard of the device in a household refuse bin.
  • Page 7: 1�- Verification Upon Reception

    If any problem is noticed upon reception, immediately contact the transport com- pany and/or CIRCUTOR's after-sales service. 2 - PRODUCT DESCRIPTION The CBS-40A /CBS-400A is a type-A ultraimmunized earth leakage protection and monitoring station for 4 independent channels that is compatible with the earth leakage transformers in the WGS/WGC range.
  • Page 8: 3�- Installation Of The Device

    The CBS-40A /CBS-400A device must be installed by authorised and qualified staff. The power supply plug must be disconnected and measurement systems switched off before handling, altering the connections or replacing the device.
  • Page 9: 3�3 - Panel Mounting Accessory (72

    LED is off, the user still needs to verify that the device is disconnected from any power supply. The CBS-40A /CBS-400A has to be connected to a power circuit that is protected with a circuit-break- er or equivalent device to disconnect the device from the mains supply.
  • Page 10: 3�4 - Device Terminals

    68 mm Figure 3: Panel cut-out� 3�4 - DEVICE TERMINALS 3�4�1� CBS-40A Figure 4: Terminals of the CBS-40A: Upper - Lower� Table 4: List of CBS-40A terminals� Device terminals 8: S2, Transformer connection WGS/WGC channel 1 A1: A1, Power supply...
  • Page 11: 3�4�2� Cbs-400A

    CBS-40A, CBS-400A 3�4�2� CBS-400A Figure 5: Terminals of the CBS-400A: Upper - Lower� Table 5: List of CBS-400A terminals� Device terminals A1: A1, Power supply 9: S1, Transformer connection WGS/WGC channel 2 A2: A2, Power supply 10: S1, Transformer connection WGS/WGC channel 3...
  • Page 12: 3�5�2� Installation On A Din Rail

    CBS-40A, CBS-400A Figure 6: Clamping clip� The clamping clips must be installed on the WGS/WGC, as shown in Figure 7 Figure 7: Position of the clamping clips� 3�5�2� INSTALLATION ON A DIN RAIL For installation on a DIN rail, two support brackets are provided with the device, see Figure 8 Figure 8: WGS/WGC support brackets�...
  • Page 13: 3�5�3� Distribution Of The Conductors In The Wgs/Wgc

    3�5�3� DISTRIBUTION OF THE CONDUCTORS IN THE WGS/WGC All the active conductors that feed the loads or part of the installation where earth leakage protection or monitoring is required must pass through the WGS/WGC transformer associated with the CBS-40A /CBS-400A.
  • Page 14 CBS-40A, CBS-400A Figure 12:Correct distribution of conductors� The inadequate arrangement of the conductors, as shown in , as well as not Figure 13 following the recommendations indicated in , can cause the transformer Figure 14 to lose its measurement efficiency and residual current protection. Unexpected disconnections may occur in the installation if the WGS/WGC is associated to a differential relay that actuates the circuit breaker.
  • Page 15: 3�6 - Connection Diagram

    CBS-40A, CBS-400A 3�6 - CONNECTION DIAGRAM Alimentación / Power Supply U > U > U < U < WGC3 WGC4 Alimentación Auxiliar Power Supply U > U > U < U < WGC2 WGC1 19 20 21 22 2324 PREALARMA...
  • Page 16: 4�- Operation

    CBS-40A, CBS-400A 4.- OPERATION 4�1 - PRINCIPLE OF OPERATION The CBS-40A /CBS-400A is a type-A ultraimmunized earth leakage protection and monitoring station for 4 independent channels that is compatible with the earth leakage transformers in the WGS/WGC range. The device measures, calculates and displays the residual current of balanced or unbalanced three- phase industrial networks.
  • Page 17: 4�3 - Display

    CBS-40A, CBS-400A Estado / State Figure 16: CBS-40A/CBS-400A LED indicators� 4�3 - DISPLAY The device has a backlit LCD display that is split into two areas ( Figure 17 Data area Unit and status areas Figure 17: CBS-40A/CBS-400A display areas�...
  • Page 18: 4�4 - Keyboard Functions

    An Individual test has been carried out, see “5.3 - TEST SCREEN”. An error has been detected, see "5.5 - ERROR SCREEN" 4�4 - KEYBOARD FUNCTIONS The CBS-40A /CBS-400A has 3 keys to browse through the different screens and program the device. Function of the keys ( Table 8 Table 8: Function of the keys on display screens�...
  • Page 19: 4�5 - Relay

    CBS-40A, CBS-400A 4�5 - RELAY The CBS-40A /CBS-400A has 4 trip relays, R1, R2, R3 and R4 ( Figure 18 to configure the relay trip parameters. “6.- DIRECT ADJUSTMENT” “7.2.- TRIP RELAY” Reles de disparo Reles de disparo Trip relays...
  • Page 20: 4�7�- Pre-Alarm Output

    Figure 20: CBS-40A/CBS-400A in idle� Relé de disparo Rx Trip relay Rx If the Rx trip relay is tripped, when a voltage is applied to the TRIP/RESET digital input, the CBS-40A / CBS-40A/CBS-400A disparado Tripped CBS-40A/CBS-400A CBS-400A indicates that there has been a trip, and when the voltage is no longer applied to the digital...
  • Page 21: Display

    CBS-40A, CBS-400A 5 - DISPLAY When starting the device, the home screen is displayed, showing the version of the device, Figure 23 and after 13 seconds the display screen is shown. Figure 23: Home Screen� Note: If the key is pressed, the device goes directly to the display screen.
  • Page 22: 5�2 - Trip Display Screens

    1 display screen. Screen with information on the device version. Press the key to see the version of the CBS-40A/CBS-400A. 5�2 - TRIP DISPLAY SCREENS If a trip has been generated in one of the channels, the channel display screen turns red, the Alarm LED turns red and the current of the last cycle that triggered the relay of the corresponding channel is displayed.
  • Page 23: 5�3 - Test Screen

    CBS-40A, CBS-400A If a trip was been generated using the TRIP/RESET input, it shows: Trip current (mA) Trip delay The text EXT, indicating that the trip was through the TRIP/RE- SET input� If a trip has been generated by communications, it shows:...
  • Page 24: 5�4 - Lock

    CBS-40A, CBS-400A 5�4 - LOCK To enter the lock menu, we must display the Lock screen and press the key Figure 27: Lock menu� The lock configuration screen is shown. If the device locks: - The direct settings screens are locked ( ) and the values cannot be mod- "6 - DIRECT ADJUSTMENTS"...
  • Page 25: 6�- Direct Adjustments

    CBS-40A, CBS-400A 6.- DIRECT ADJUSTMENTS From the display screens of each of the channels, it is possible to configure the trip current and the delay of the connected transformer. To do this, press key Trip current > Delay and relay curve Figure 28: Direct adjustments for Channel x�...
  • Page 26: 6�2 - Delay And Relay Curve

    CBS-40A, CBS-400A To skip to the next programming point, press once the key Hold down the key for > 3s, to validate the data and exit the programming. 6�2 - DELAY AND RELAY CURVE In this screen the delay in tripping the channel x relay or the type of trip curve is configured.
  • Page 27: 7�- Configuration

    To enter the configuration menu you must display the Setup screen and press the key. Note: If the device is locked, , the menu cannot be accessed. The device configuration on the CBS-40A /CBS-400A is organised into 4 or 5 menus, Figure 29 Pre-alarm output > 3s <...
  • Page 28: 7�1 - Pre-Alarm Output

    CBS-40A, CBS-400A 7�1 - PRE-ALARM OUTPUT shows the home screen of the pre-alarm output configuration menu. Press the key Figure 30 access the menu. Figure 30: Pre-alarm menu� shows the configuration menu of the pre-alarm output. Figure 31 Pre-alarm channel >...
  • Page 29: 7�1�1�- Pre-Alarm Channel

    CBS-40A, CBS-400A 7�1�1�- PRE-ALARM CHANNEL On this screen you select the channel on which the pre-alarm values are to be configured. Press the key to enter edit mode, the programming value flashes. Use the keys to skip through the different options.
  • Page 30: 7�1�3� - Delay Of The Pre-Alarm Output

    CBS-40A, CBS-400A 7�1�3� - DELAY OF THE PRE-ALARM OUTPUT This screen is used to configure the delay of the pre-alarm output, in seconds. Press the key to enter edit mode, the programming value flashes. Use the keys to skip through the different options.
  • Page 31: 7�1�5�- Polarity

    CBS-40A, CBS-400A 7�1�5�- POLARITY The polarity of the pre-alarm output is configured in this section. Press the key to enter edit mode, the programming value flashes. Use the keys to skip through the different options.  Configuration values Table 16:Configuration values: Polarity�...
  • Page 32: 7�2�1�- Trip Relay Channel

    CBS-40A, CBS-400A Trip relay > channel < > Polarity > > < > Trip current limit > Figure 33: Configuration menu of the trip relay� 7�2�1�- TRIP RELAY CHANNEL In this screen, the channel on which the trip relay values are to be configured is selected.
  • Page 33: 7�2�2 - Polarity

    CBS-40A, CBS-400A 7�2�2 - POLARITY The polarity of the trip relay is configured in this section. Press the key to enter edit mode, the programming value flashes. Use the keys to skip through the different options.  Configuration values Table 18:Configuration values: Polarity�...
  • Page 34: 7�3�- Communications

    CBS-40A, CBS-400A 7�3�- COMMUNICATIONS Note: Menu only available on the CBS-400A model. shows the initial screen of the RS-485 communications menu. Press the key to access Figure 34 the menu. Figure 34: Communications menu� shows the RS-485 communications configuration menu.
  • Page 35: 7�3�2�- Baud Rate

    CBS-40A, CBS-400A  Configuration values Table 20:Configuration values: Peripheral number� Peripheral number Minimum value Maximum value Hold down the key for > 3s to validate the data and exit edit mode. To skip to the next programming point, press once the key 7�3�2�- BAUD RATE...
  • Page 36: 7�4�- Installation

    CBS-40A, CBS-400A  Configuration values Table 22:Configuration values: Data bits / Parity / Stop bits� Data bits / Parity / Stop bits 8N1, 8 data bits, no parity, 1 stop bit. 8E1, 8 data bits, even parity, 1 stop bit.
  • Page 37: 7�5�- Digital Input

    CBS-40A, CBS-400A Press the key to enter editing mode, the programming value flashes. Use the keys to skip through the different options.  Configuration values Table 23:Configuration values: Save installation status� Save installation status YES, The device saves the status of the current installation.
  • Page 38 CBS-40A, CBS-400A Press key to enter edit mode, channel 1 status flashes. Use the keys to skip through the different options.  Configuration values Table 24:Configuration values: TRIP /RESET channels� TRIP / RESET channels --, The digital input does not act on channel 1 ... 4...
  • Page 39: 8�- Cbs-400A: Rs-485 Communications

    CBS-40A, CBS-400A 8.- CBS-400A: RS-485 COMMUNICATIONS The CBS-400A has an RS-485 communications port. The device is equipped with the MODBUS RTU communication protocol as standard. 8�1�- CONNECTIONS The RS-485 cable must be wired using twisted pair cable with mesh shield (minimum 3 wires), with a maximum distance of 1200 meters between the CBS-400A and the master unit.
  • Page 40: 8�3�- Modbus Commands

    CBS-40A, CBS-400A 8�3�- MODBUS COMMANDS All MODBUS map addresses are in Hexadecimal format. 8�3�1�- VARIABLES OF THE DEVICE Function 0x04 is used for these parameters Table 25: Modbus Memory Map: Device parameters (Table 1)� Address Parameter Format Units Channel 1...
  • Page 41: 8�3�2�- Tripping Due To Test Or Communications

    CBS-40A, CBS-400A Table 28:Modbus Memory Map: CBS-400A status (Table 2)� Parameter Format Address Value 0: Not detected An internal error detected in the CBS-400A device bool 07CF 1: Detected 8�3�2�- TRIPPING DUE TO TEST OR COMMUNICATIONS The Functions 0x01 and 0x05 are implemented for these parameters.
  • Page 42 CBS-40A, CBS-400A Tabla 31 (Continuation): Modbus Memory Map: Pre-alarm output configuration� Prealarm output configuration Address Configuration Default Format Valid data range Channel Channel Channel Channel parameter value Pre-alarm output de- Unit [16] 377C 3786 C368 C372 1000 ... 5000 ms...
  • Page 43: 9- Technical Features

    CBS-40A, CBS-400A 9- TECHNICAL FEATURES 9�1 - CBS-40A / CBS-400A AC Power supply Rated voltage 110 ... 230 V Frequency 50... 60 Hz Consumption 7.5 VA Installation category CAT III 300V Monitoring features Protection Type Type A ultaimmunised Sensitivity (IΔn) 0.03 - 0.1 - 0.3 - 0.5 - 1 - 3 - 5 - 10 - 30 A...
  • Page 44 IK08 Pollution degree Indoor Mechanical features Terminals: A1, A2, 1 ... 12, 19 ... 24 2.5 mm ≤ 0.4 Nm, M2.5 Flat Cable from WGS/WGC to CBS-40A / CBS-400A Maximum length Dimensions Figure 41 (mm) CBS-40A 224 g Weight CBS-400A...
  • Page 45 CBS-40A, CBS-400A 52.5 Figure 41: Dimensions of CBS-40A/CBS-400A� Instruction Manual...
  • Page 46: 9�2 - Wgs/Wgc

    CBS-40A, CBS-400A 9�2 - WGS/WGC Measurement circuit Type Passant Network frequency 45... 60 Hz Assigned transformation ratio (Kn) 30 / 0.06 A Differential Current measurement circuit Scale range Scale found Display resolution 30 mA 75 mA ± 1 mA 300 mA 750 mA ±...
  • Page 47 CBS-40A, CBS-400A (Continued) Mechanical features WGC 80 4 x 120 mm WGC 110 4 x 240 mm WGC 140 8 x 185 mm WGC 180 8 x 240 mm WGC 220x105 220 x 115 4 x 100 x 10 mm...
  • Page 48 CBS-40A, CBS-400A Figure 44: WGC 25 and WGC 35 dimensions (in mm)� Ø Ø Figure 45: WGC 55, WGC 80, WGC 110, WGC 140 and WGC 180 dimensions (in mm)� Table 35: WGC 55, WGC 80, WGC 110, WGC 140 and WGC 180 dimensions�...
  • Page 49 CBS-40A, CBS-400A Figure 46: WGC 220x105, WGC 350x150 and WGC 500x200 dimensions (in mm�)� Table 36: WGC 220x105, WGC 350x150 and WGC 500x200 dimensions� Dimensions (in mm) and Weight Model Weight WGC 220x105 54,2 3.740 kg WGC 350x150 50,2 7.800 kg WGC 500x200 11.300 kg...
  • Page 50: 10 - Maintenance And Technical Service

    CBS-40A, CBS-400A 10 - MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR S�A�U� Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 51: 12 - Eu Declaration Of Conformity

    CBS-40A, CBS-400A 12 - EU DECLARATION OF CONFORMITY Instruction Manual...
  • Page 52 CBS-40A, CBS-400A Instruction Manual...
  • Page 53 CBS-40A, CBS-400A Instruction Manual...
  • Page 54: Annex A - Direct Settings

    CBS-40A, CBS-400A ANNEX A - DIRECT SETTINGS mA mA mA Trip current < > .A 30mA > A A .A .A 0. N Delay and relay curve < >   (A1) Possible values if the trip current limit has been set to 30A� ("7.2.3 - TRIP CURRENT LIMIT")
  • Page 55: Annex B - Setup Menu

    CBS-40A, CBS-400A ANNEX B - SETUP MENU CH03 CH02 < > Pre-alarm channel CH01 > CHAL CH04 < >  % Pre-alarm current < > > % < > Delay of the > < > pre-alarm output < > >...
  • Page 56 < > CBS-40A, CBS-400A < > Trip current limit < > > Peripheral number < > > Model CBS-400A < > 19. 9. Baud rate < > 38.4 4. > > 115. 57. < > < > Data bits / Parity / <...
  • Page 57 CBS-40A, CBS-400A Instruction Manual...
  • Page 58 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
