DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifi cations and the most updated manuals. www.circutor.com CIRCUTOR, recommends using the original cables and accessories that are supplied with the device.
Wibeee REVISION LOG Table 1: Revision log� Date Revision Description 01/18 M064B01-03-18A Initial Version Changes in the following sections: 08/18 M064B01-03-18B Changes in the following sections: 02/20 M064B01-03-20A 2.- 3.5. - 5.2.1.1. SYMBOLS Table 2: Symbols� Symbol Description Compliant with the relevant European standards. Do not remove from hazardous live conductors or place it around them.

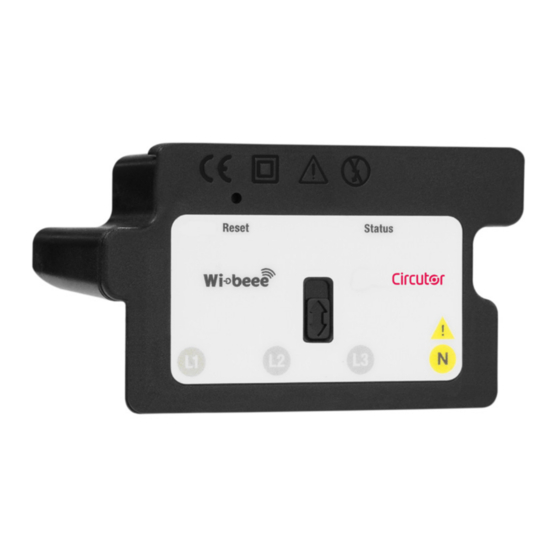

The models have: - 2 indicator LEDs - 1 Reset button - Wi-Fi communications You can access the data measured by the device via the Wibeee Circutor mobile application, the website http://wibeee�circutor�com, or the device's internal web server. Instruction Manual...
Wibeee 3�- INSTALLING THE DEVICE 3.1.- PRELIMINARY RECOMMENDATIONS In order to use the device safely, it is critical that individuals who handle it follow the safety measures set out in the standards of the country where it is being used, use the personal protective equipment necessary (rubber gloves, face protection and approved flame-resistant clothing) to prevent injuries due to electric shock or electric arc due to exposure to current-carrying conductors and pay attention to...
Wibeee 3.2.- INSTALLATION Before using the Wibeee ensure that the conditions are appropriate for working, and that the protective equipment is adequate� Use of the Wibeee on uninsulated conductors is limited to 265 V~ to the power frequency. For measuring of uninsulated conductors, use the appropriate and necessary personal protective equipment.
Wibeee 3� Check that it is secured. 4� Check that the red LED is on and blinking. 5� After a few seconds, the blue LED will start blinking. 3.3.- DEVICE TERMINALS 3�3�1�- Wibeee-M-L Table 3:List of terminals of the Wibeee-M-L� Terminals of the Wibeee-M-L device 1: N, Neutral 2: L1, Voltage input...
Wibeee 3�3�3�- Wibeee-T-L Table 5:List of terminals of the Wibeee-T-L� Terminals of the Wibeee-T-L device 1: N, Neutral 3: L2, Voltage input L2 2: L1, Voltage input L1 4: L3, Voltage input L3 Figure 5:Wibeee-T-L Terminals� 3�3�4�- Wibeee-T-R Table 6:List of terminals of the Wibeee-T-R� Terminals of the Wibeee-T-R device 1: L1, Voltage input L1 3: L3, Voltage input L3...
3�5�1�- APPLICATION MODE In application mode, the data measured by the Wibeee is uploaded to the cloud and accessed using the Wibeee CIRCUTOR application. When using this mode, the Wibeee and the user who has configured it are linked, so the user can control the device, view the data that has been sent and the charts and manage groups of devices.
Wibeee 3�5�2�- DIRECT SHARE MODE In direct share mode the Wibeee's data is directly accessed from the device's integrated web server, so you can view the measurements being captured at that moment in real time and manually configure the device. This allows you to change parameters, such as the server and port to which the Wibeee will send the data. If you configure a Wibeee while using this mode, there is no link between the user and the device, so the only way to access the device when it is connected to the network is by knowing its IP address and accessing it using a search tool.
Wibeee 3.6.- CALIBRATION When the device has been installed and started, it needs to be calibrated. The calibration process appears automatically in the Wibeee Circutor mobile application dur- ing installation. Follow these steps: 1�- When the device has been successfully installed, measure the current of the L1 with a cur-...
The device can work in two operating modes: Application mode In application mode, the data measured by the Wibeee is uploaded to the cloud and ac- cessed via the Wibeee CIRCUTOR application or the http://wibeee�circutor�com web platform. Direct share mode In direct share mode the Wibeee's data is directly accessed from the device's integrated web server.
Wibeee Table 8 (Cont�): Measurement parameters of the Wibeee-M-L and Wibeee-M-R� Parameter Units Inductive Reactive Energy kvarLh Capacitive Reactive Energy kvarCh Cost Emissions KgCO 4�2�2�- Wibeee-T-L, Wibeee-T-R and Wibeee-3P Table 9: Measurement parameters of the Wibeee-T-L, Wibeee-T-R and Wibeee-3P� Phases Parameter Units Total...
Wibeee Table 10: Description of the LEDs� Description Blinking light: Powered device. Indicates the connection status: Slow blinking light (1s): Generating a Wi-Fi network. Blue Fast blinking light (<1s) : Connected to a Wi-Fi network. Steady light: Data being sent over the network. 4.4.- BUTTON The device has a Reset button, , to restore the device's factory settings (hold it down...
Page 21
Wibeee If it takes longer than 2 minutes, it is recommended to return to the initial state, check the Wi-Fi coverage and re-start the process. If it is unable to connect to the Wi-Fi, the device retries 5 times. If the lack of connection per- sists, it goes into Configuration mode (so that the configuration can be changed without open- ing the panel) for 5 minutes;...
Figure 17: Data display based on the operating mode� 5.1.-MOBILE APPLICATION The Wibeee Circutor mobile application is compatible with iOS and Android, and has a version for smartphones and tablets. In it you can view and configure all of the parameters measured by the device. Figure 18: Wibeee Circutor mobile application� Instruction Manual...
Wibeee 5.2.- WEB PLATFORM shows the main screen of the http://wibeee�circutor�com web platform. Figure 19 Figure 19:Main screen of the web platform� From this screen you can access the different sections of the platform: : Home, summary of consumption, displays charts and gives access to the ...
Wibeee 5�2�1�- HOME The Home screen is divided into different areas: The area in displays a summary of consumption and CO emissions from the Figure 20 previous month, the current month and the forecast for the end of the month. It also displays the set target value.
Page 25
Wibeee Figure 21: Charts area� The area in shows the latest measurements sent by the device. Figure 22 Figure 22: Measurements area� In the area in you can access the configuration options for the devices and Figure 23 dashboard, see 5.2.1.1.- Configuration screen for the devices/dashboard “...
Page 26
Wibeee 5.2.1.1.- Configuration screen for the devices/dashboard. On the device/dashboard configuration screen you can configure the following data: DEVICE Figure 24: Configuration screen: Device. The device's basic data is entered in this section: Name: The name of the device. Select Dashboard: Dashboard selection. Mac: MAC address of the device. 2-4 Quadrants: Measurement selection for 2 quadrants (consumption) or 4 quadrants (consumption and generation).
Page 27
Wibeee The device's location data is entered in this section: Name: Name of the device's location. Time zone: Time zone. Longitude, Latitude: Location of the device. COST Figure 26: Configuration screen: Cost The costs are entered in this section: Price kWh : Price of kWh.
Wibeee In this section you enter the following: Target Limit (kWh) : The maximum consumption value that you want to reach, in kWh. And the following notifications are activated or deactivated: • Wibeee has been inactive for 1 day, Wibeee has been without sending data to the Web platform for more than a day.
Wibeee 5�2�3�- DEVICES The Devices screen, , displays a list of all of the connected devices. Figure 30 Figure 30: Devices screen� 5�2�4�- NOTIFICATIONS The Notifications screen, , shows a log of all of the notifications that have been Figure 31 generated. Figure 31: Notifications screen. Instruction Manual...
Wibeee 5�2�5�- REPORTS The Reports screen, , is divided into two areas: Figure 32 Figure 32: Reports Screen� REPORTS This section shows the scheduled reports to be regularly generated. To create a new regular report, press the icon. The dialogue box in opens.
Page 31
Wibeee In this dialogue box, you should enter: Report name: Name with which the report is going to be saved. Select Dashboard: Select the Dashboard on which you are going to prepare the report. Frequency: Select the frequency of the report: Weekly, Monthly, Billing period. Recipients: Enter the email addresses of the recipients of the report.
Wibeee 5�2�6�- HELP The Help screen, , tries to answer any questions about the installation, operation, web Figure 35 platform and application of the two Wibeee systems. Figure 35: Help Screen� 5.3.- INTERNAL WEB SERVER shows the screen where you access the device's internal web server. The device's Figure 36 default address is: http://192�168�1�150 User: user...
Wibeee Figure 37:Main screen of the internal web server� 5�3�1�- INSTANT DATA In this section you can access instant data from each of the measurement phases, Figure 38 Figure 38:Internal web server: Instant Data� Instruction Manual...
Wibeee 5�3�2�- NETWORK You can configure the network parameters in the Network section, Figure 39 Figure 39:Internal web server: Network� 5�3�3�- ADVANCED OPTIONS You can configure the IP parameters in the Advanced Options section, Figure 40 wibeee.circutor.com Figure 40:Internal web server: Advanced Options� Instruction Manual...
Wibeee 5�3�4�- GENERAL OPTIONS shows the General Options section. Figure 41 Figure 41:Internal web server: General Options� You can configure the following parameters in this section: Measures Refresh Time (s): The measurement refresh time. Data Refresh Time (min): The data refresh time. If the value is set to -1, the sending of data is deactivated.
Page 36
Wibeee Figure 42: HPPT queries: Device ID� 5�4�1�2�- Values of the device's variables To view the values of all of the device's variables, use the following request: http://ip_address/services/user/values.xml?id=device It is also possible to view specific variables, see with the available variables. Table 11 http://ip_address/services/user/values.xml?var=device.variable Figure 43:HPPT queries: Values of the device's variables� Table 11: Variables table�...
Page 37
Wibeee Table 11 (Cont�): Variables table Variable Description Units <var>primaryDNS</var> Primary DNS server. <var>secondaryDNS</var> Secondary DNS server. <var>macAddr</var> MAC identifier <var>ssid</var> Name of the network. <var>keyEnc</var> Password type. <var>keyType</var> Password format: Hex or ASCII <var>securKey</var> Password. <var>serverIp</var> Name of the server domain. <var>serverIpResolved</var>...
Wibeee 6�- WIRELESS COMMUNICATIONS 6.1.- USAGE ENVIRONMENT AND HEALTH Wireless communications emit radio frequency electromagnetic energy, like other radio devic- Because wireless communications operate within the guidelines found in radio frequency safe- ty standards and recommendations, they are safe for users to use. In certain environments or situations, the use of wireless communications may be restricted by the owner of the building or the representatives responsible for the organisation.
As it is a MODBUS TCP server, the device number internally assigned to the Wibeee is 1. By default, once configured, the Wibeee starts to send data over the internet to the CIRCUTOR server. If you want to stop this data from being sent (for example, because the local network does not have an Internet connection) you have to set a data refresh time of -1.
Page 42
Wibeee Table 16 (Cont�): Modbus memory map� Parameter Symbol Address Units Wibeee model Active Energy L2 Eact2 001C - 001D Three-phase Active Energy L3 Eact3 001E - 001F Three-phase Total Active Energy EactT 0020 - 0021 Three-phase Single-phase Inductive Reactive Energy L1 EreactL1 0022 - 0023 kVarh...
2.5% / 0.1 mm Communications Type Wi-Fi (IEEE 802.11) Protocol HTTP, Modbus/TCP, XML Frequency Range 2.405 - 2.48 GHz Encryption AES128 Monthly data consumption 300 MB FCC (USA), IC (CANADA), ETSI (EUROPA) Certified User interface 2 LEDs Button 1 button Mobile application Wibeee Circutor Instruction Manual...
Page 44
Wibeee Environmental features Operating temperature -10ºC ... +45ºC Storage temperature -40ºC ... +85ºC Relative humidity (without condensation) 10 ... 90% Maximum altitude 2000 m Protection degree IP20 Insulation Double insulation Mechanical features Wibeee-M-x Wibeee-T-x Wibeee-3P Dimensions (mm) Figure 44 Figure 45 Figure 46 Weight 37 g...
Page 45
Wibeee Standard Safety requirements for electrical equipment for measurement, control and laboratory use -- Part 2-030: Particular requirements for testing and mea- UNE-EN 61010-2-030 suring circuits Electrical equipment for measurement, control and laboratory use - EMC UNE-EN 61326-1 requirements -- Part 1: General requirements (IEC 61326-1:2005) Electromagnetic compatibility and Radio spectrum Matters (ERM);...
• CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage” of the unit. Consequently,...
Page 47
Wibeee 10�- CE CERTIFICATE Instruction Manual...
