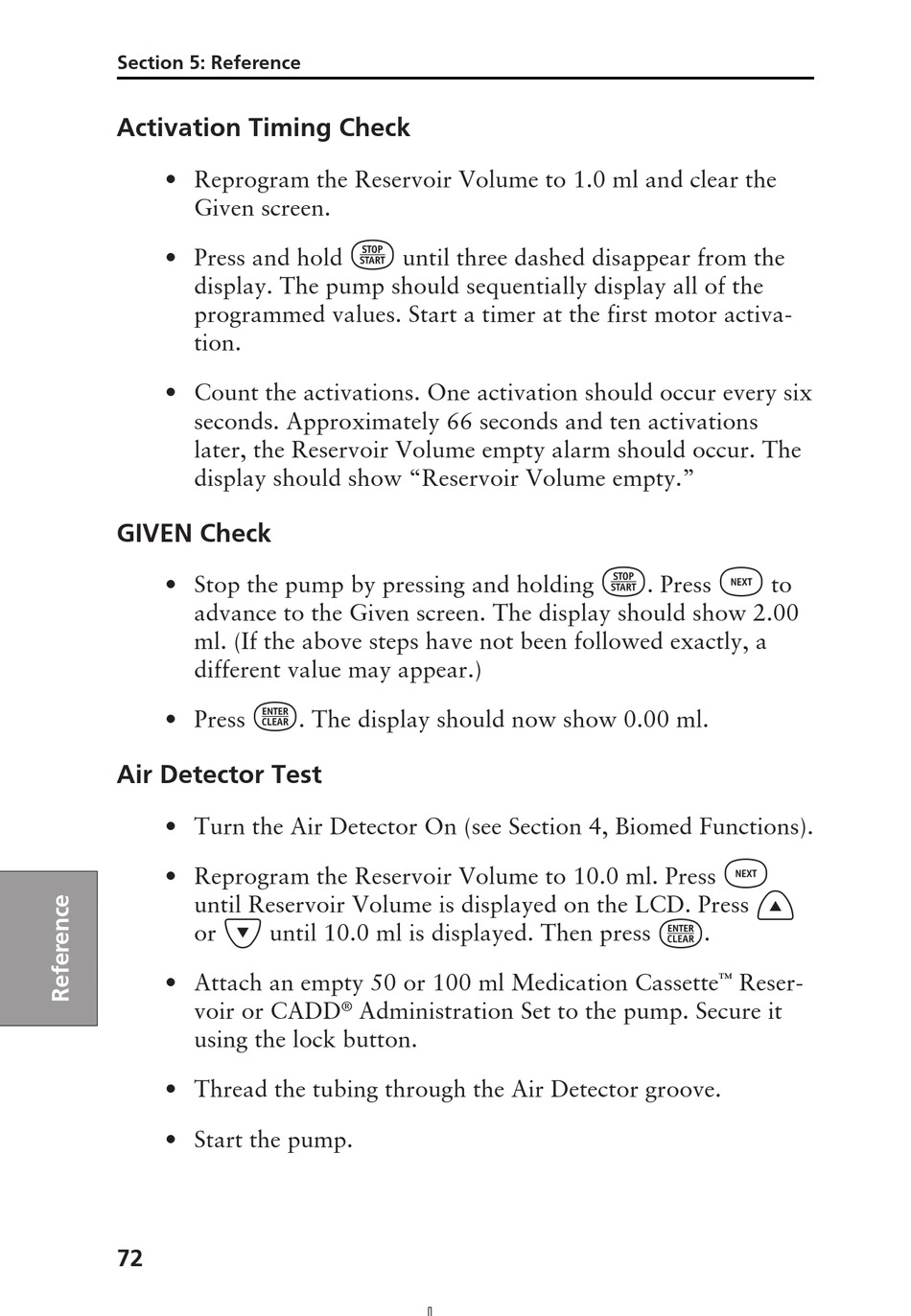

SIMS Deltec CADD-Legacy PLUS Operator's Manual page 82

Section 5: Reference
Activation Timing Check
• Reprogram the Reservoir Volume to 1.0 ml and clear the
Given screen.
• Press and hold
display. The pump should sequentially display all of the
programmed values. Start a timer at the first motor activa-
tion.
• Count the activations. One activation should occur every six
seconds. Approximately 66 seconds and ten activations
later, the Reservoir Volume empty alarm should occur. The
display should show "Reservoir Volume empty."
GIVEN Check
• Stop the pump by pressing and holding
advance to the Given screen. The display should show 2.00
ml. (If the above steps have not been followed exactly, a
different value may appear.)
¤
• Press
Air Detector Test
• Turn the Air Detector On (see Section 4, Biomed Functions).
• Reprogram the Reservoir Volume to 10.0 ml. Press
until Reservoir Volume is displayed on the LCD. Press
Î
or until 10.0 ml is displayed. Then press
• Attach an empty 50 or 100 ml Medication Cassette
voir or CADD
using the lock button.
• Thread the tubing through the Air Detector groove.
• Start the pump.
72
⁄
until three dashed disappear from the
. The display should now show 0.00 ml.
® Administration Set to the pump. Secure it
⁄ „
. Press to
„
´
¤
.
™
Reser-
