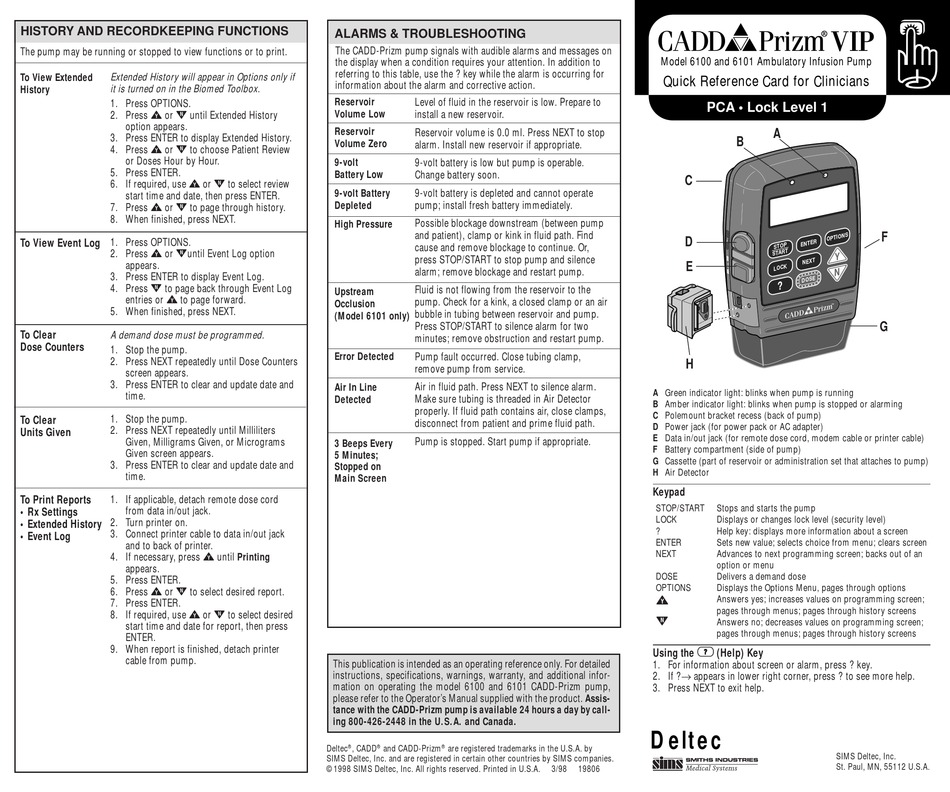

SIMS Deltec CADD Prizm 6100 Quick Reference

HISTORY AND RECORDKEEPING FUNCTIONS
The pump may be running or stopped to view functions or to print.
To View Extended Extended History will appear in Options only if
it is turned on in the Biomed Toolbox.
History
1. Press OPTIONS.
´ Î
2. Press or until Extended History
option appears.
3. Press ENTER to display Extended History.
´ Î
4. Press or to choose Patient Review
or Doses Hour by Hour.
5. Press ENTER.
´
6. If required, use
start time and date, then press ENTER.
´ Î
7. Press or to page through history.
8. When finished, press NEXT.
To View Event Log 1. Press OPTIONS.
´ Î
2. Press or until Event Log option
appears.
3. Press ENTER to display Event Log.
Î
4. Press to page back through Event Log
´
entries or to page forward.
5. When finished, press NEXT.
To Clear A demand dose must be programmed.
Dose Counters
1. Stop the pump.
2. Press NEXT repeatedly until Dose Counters
screen appears.
3. Press ENTER to clear and update date and
time.
To Clear 1. Stop the pump.
2. Press NEXT repeatedly until Milliliters
Units Given
Given, Milligrams Given, or Micrograms
Given screen appears.
3. Press ENTER to clear and update date and
time.
To Print Reports 1. If applicable, detach remote dose cord
from data in/out jack.
• Rx Settings
2. Turn printer on.
• Extended History
3. Connect printer cable to data in/out jack
• Event Log
and to back of printer.
4. If necessary, press
appears.
5. Press ENTER.
´ Î
6. Press or to select desired report.
7. Press ENTER.
´
8. If required, use
start time and date for report, then press
ENTER.
9. When report is finished, detach printer
cable from pump.
ALARMS & TROUBLESHOOTING
The CADD-Prizm pump signals with audible alarms and messages on
the display when a condition requires your attention. In addition to
referring to this table, use the ? key while the alarm is occurring for
information about the alarm and corrective action.
Reservoir
Volume Low
Reservoir
Volume Zero
9-volt
Battery Low
Î
or to select review
9-volt Battery
Depleted
High Pressure
Upstream
Occlusion
(Model 6101 only)
Error Detected
Air In Line
Detected
3 Beeps Every
5 Minutes;
Stopped on
Main Screen
´
until Printing
Î
or to select desired
This publication is intended as an operating reference only. For detailed
instructions, specifications, warnings, warranty, and additional infor-
mation on operating the model 6100 and 6101 CADD-Prizm pump,
please refer to the Operator's Manual supplied with the product. Assis-
tance with the CADD-Prizm pump is available 24 hours a day by call-
ing 800-426-2448 in the U.S.A. and Canada.
Deltec ® , CADD ®
SIMS Deltec, Inc. and are registered in certain other countries by SIMS companies.
©1998 SIMS Deltec, Inc. All rights reserved. Printed in U.S.A.
Level of fluid in the reservoir is low. Prepare to
install a new reservoir.
Reservoir volume is 0.0 ml. Press NEXT to stop
alarm. Install new reservoir if appropriate.
9-volt battery is low but pump is operable.
Change battery soon.
9-volt battery is depleted and cannot operate
pump; install fresh battery immediately.
Possible blockage downstream (between pump
and patient), clamp or kink in fluid path. Find
cause and remove blockage to continue. Or,
press STOP/START to stop pump and silence
alarm; remove blockage and restart pump.
Fluid is not flowing from the reservoir to the
pump. Check for a kink, a closed clamp or an air
bubble in tubing between reservoir and pump.
Press STOP/START to silence alarm for two
minutes; remove obstruction and restart pump.
Pump fault occurred. Close tubing clamp,
remove pump from service.
Air in fluid path. Press NEXT to silence alarm.
Make sure tubing is threaded in Air Detector
properly. If fluid path contains air, close clamps,
disconnect from patient and prime fluid path.
Pump is stopped. Start pump if appropriate.
and CADD-Prizm ® are registered trademarks in the U.S.A. by
3/98

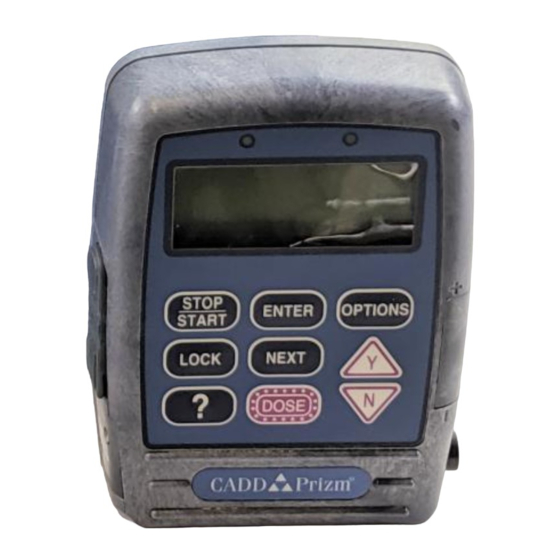

Model 6100 and 6101 Ambulatory Infusion Pump
Quick Reference Card for Clinicians
PCA • Lock Level 1
B
C
D
E
H
A Green indicator light: blinks when pump is running
B Amber indicator light: blinks when pump is stopped or alarming
C Polemount bracket recess (back of pump)
D Power jack (for power pack or AC adapter)
E Data in/out jack (for remote dose cord, modem cable or printer cable)
F Battery compartment (side of pump)
G Cassette (part of reservoir or administration set that attaches to pump)
H Air Detector
Keypad
STOP/START Stops and starts the pump
LOCK Displays or changes lock level (security level)
? Help key: displays more information about a screen
ENTER Sets new value; selects choice from menu; clears screen
NEXT Advances to next programming screen; backs out of an
option or menu
DOSE Delivers a demand dose
OPTIONS Displays the Options Menu, pages through options
´
Answers yes; increases values on programming screen;
pages through menus; pages through history screens
Î
Answers no; decreases values on programming screen;
pages through menus; pages through history screens
Using the Å Å Å Å Å (Help) Key
1. For information about screen or alarm, press ? key.
2. If ?→ appears in lower right corner, press ? to see more help.
3. Press NEXT to exit help.
Deltec
19806
A
F
N S
O P T IO
E N T E R
S T O P
S T A R T
Y
N E X T
L O C K
N
D O S E
?
G
SIMS Deltec, Inc.
St. Paul, MN, 55112 U.S.A.
