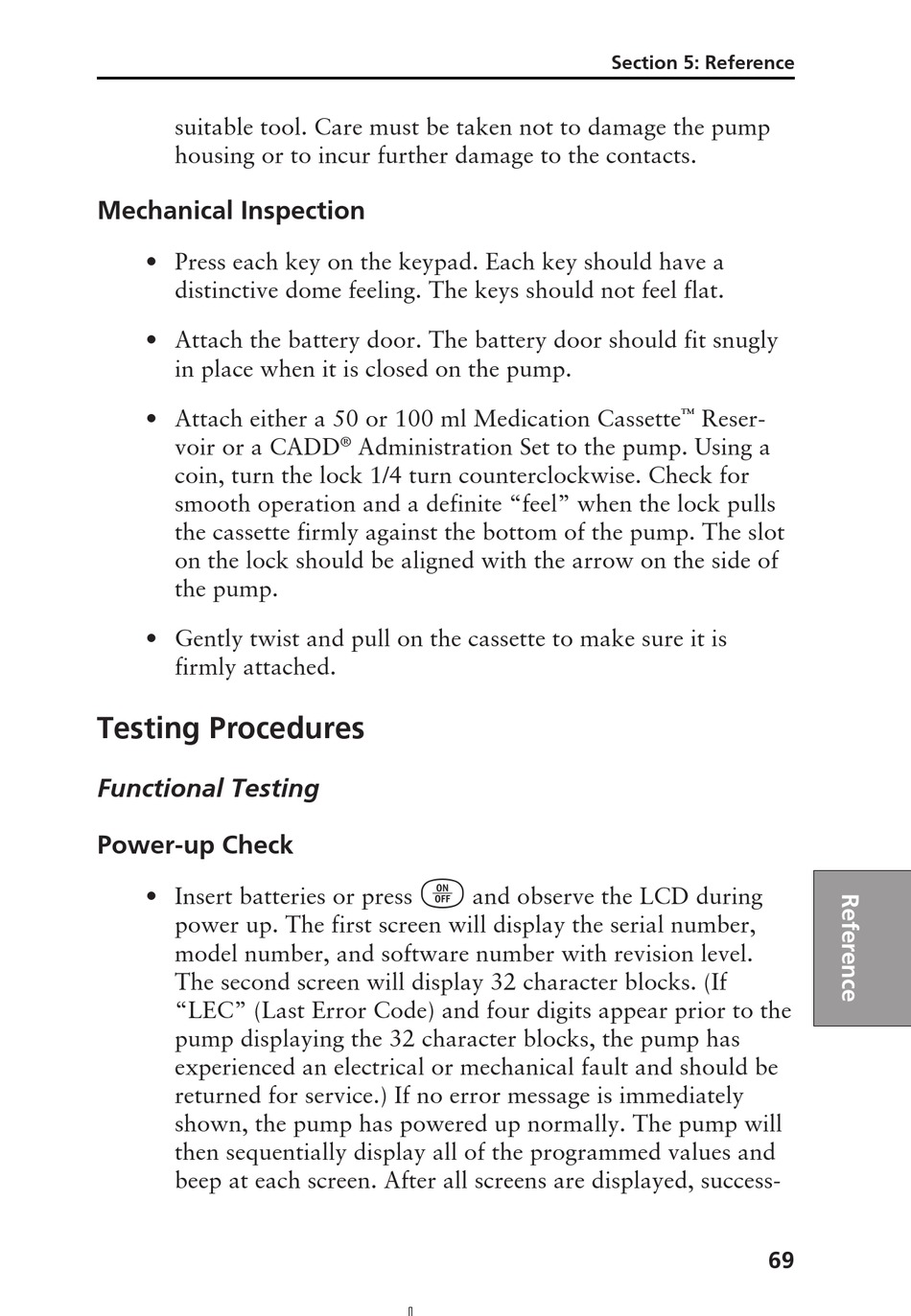

suitable tool. Care must be taken not to damage the pump
housing or to incur further damage to the contacts.
Mechanical Inspection
• Press each key on the keypad. Each key should have a
distinctive dome feeling. The keys should not feel flat.
• Attach the battery door. The battery door should fit snugly
in place when it is closed on the pump.
• Attach either a 50 or 100 ml Medication Cassette
voir or a CADD
coin, turn the lock 1/4 turn counterclockwise. Check for
smooth operation and a definite "feel" when the lock pulls
the cassette firmly against the bottom of the pump. The slot
on the lock should be aligned with the arrow on the side of
the pump.
• Gently twist and pull on the cassette to make sure it is
firmly attached.
Testing Procedures
Functional Testing
Power-up Check
• Insert batteries or press
power up. The first screen will display the serial number,
model number, and software number with revision level.
The second screen will display 32 character blocks. (If
"LEC" (Last Error Code) and four digits appear prior to the
pump displaying the 32 character blocks, the pump has
experienced an electrical or mechanical fault and should be
returned for service.) If no error message is immediately
shown, the pump has powered up normally. The pump will
then sequentially display all of the programmed values and
beep at each screen. After all screens are displayed, success-
®
Administration Set to the pump. Using a
Å
and observe the LCD during
Section 5: Reference
™
Reser-
69
