Flow Meter | FC01- CA

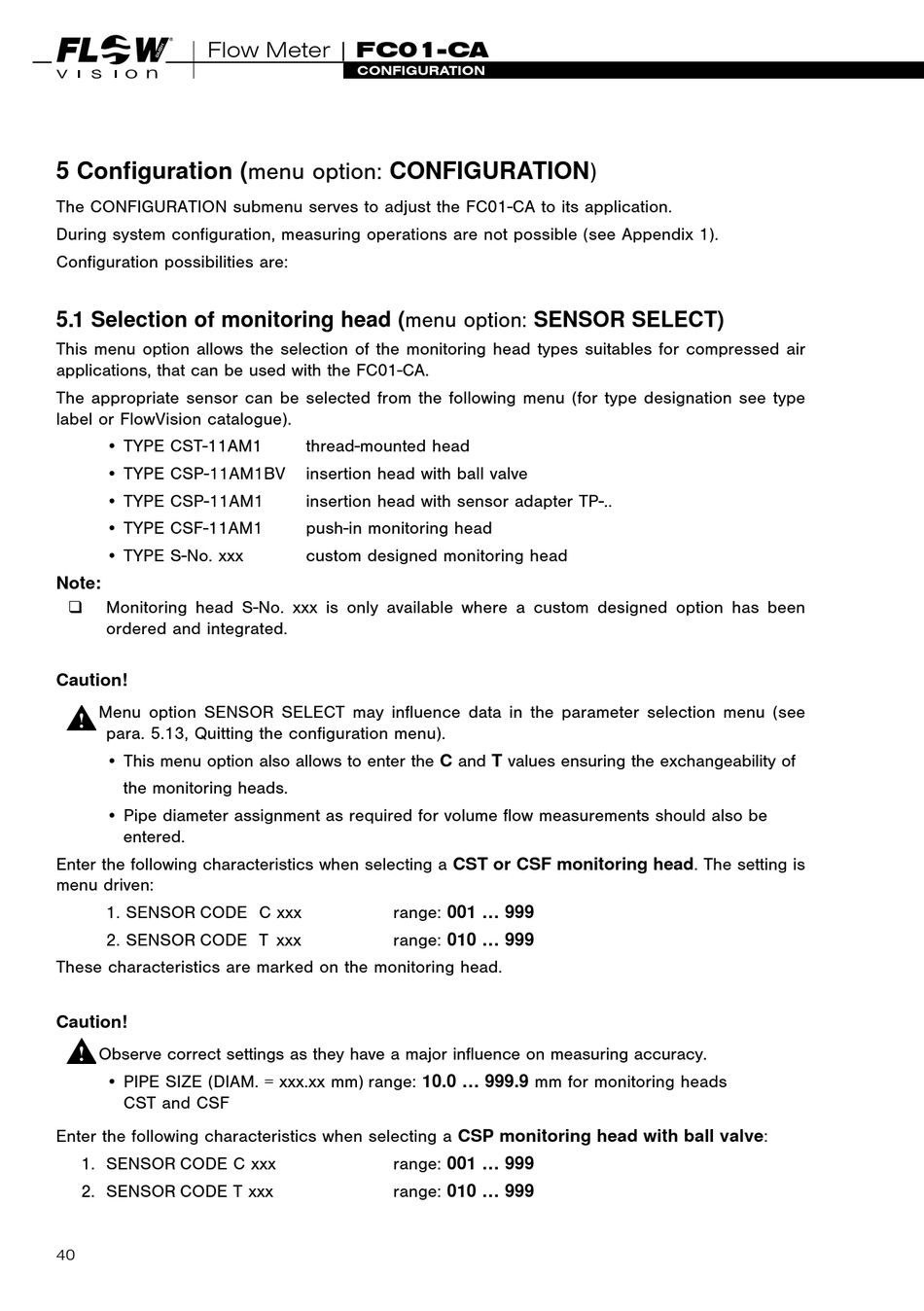

5 Configuration (menu option: CONFIGURATION)

The CONFIGURATION submenu serves to adjust the FC01-CA to its application.
During system configuration, measuring operations are not possible (see Appendix 1).
Configuration possibilities are:

5 . 1 Selection of monitoring head (menu option: SENSOR SELECT)

This menu option allows the selection of the monitoring head types suitables for compressed air
applications, that can be used with the FC01-CA.
The appropriate sensor can be selected from the following menu (for type designation see type
label or FlowVision catalogue).
• TYPE CST-11AM1
• TYPE CSP-11AM1BV
• TYPE CSP-11AM1
• TYPE CSF-11AM1
• TYPE S-No. xxx
Note:
q
Monitoring head S-No. xxx is only available where a custom designed option has been
ordered and integrated.
Caution!
Menu option SENSOR SELECT may influence data in the parameter selection menu (see
para. 5.13, Quitting the configuration menu).
• This menu option also allows to enter the C and T values ensuring the exchangeability of
the monitoring heads.
• Pipe diameter assignment as required for volume flow measurements should also be
entered.
Enter the following characteristics when selecting a CST or CSF monitoring head. The setting is
menu driven:
1. SENSOR CODE C xxx
2. SENSOR CODE T xxx
These characteristics are marked on the monitoring head.
Caution!
Observe correct settings as they have a major influence on measuring accuracy.
• PIPE SIZE (DIAM. = xxx.xx mm) range: 10 .0 ... 999 .9 mm for monitoring heads
CST and CSF
Enter the following characteristics when selecting a CSP monitoring head with ball valve:
1. SENSOR CODE C xxx
2. SENSOR CODE T xxx
40
CONFIGURATION
thread-mounted head
insertion head with ball valve
insertion head with sensor adapter TP-..
push-in monitoring head
custom designed monitoring head
range: 001 ... 999
range: 010 ... 999
range: 001 ... 999
range: 010 ... 999
