Summary of Procedures

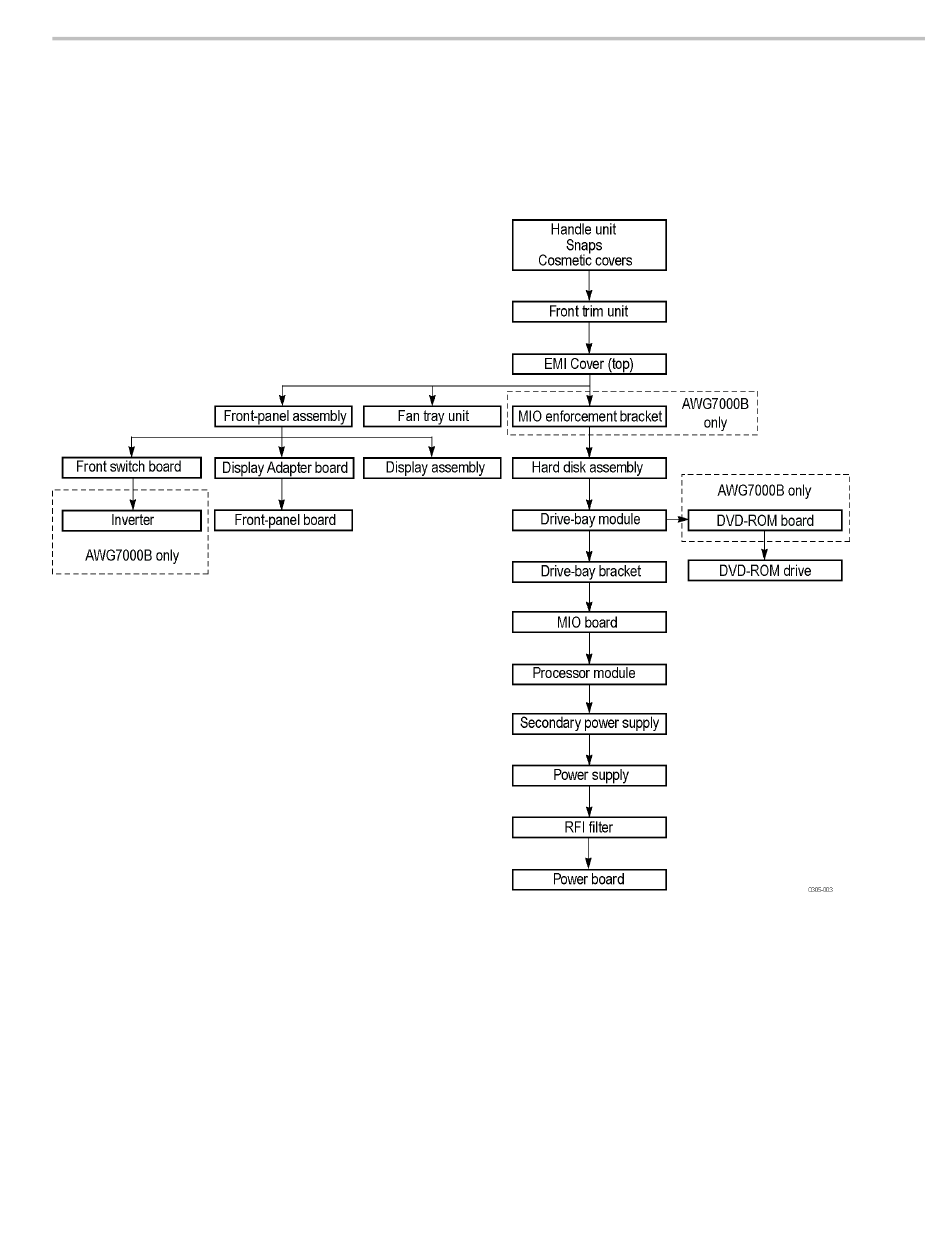

Figure 4-1: Disassembly procedures for external modules and internal modules (top)

AWG7000B and AWG7000C Series Service Manual
Disassembly for replacement is best achieved by removing and replacing the
modules in a specific order. Complete disassembly is best achieved by the
following procedures in the order given in the following figures.
Removal and Installation Procedures
4–7
