Removal and Installation Procedures

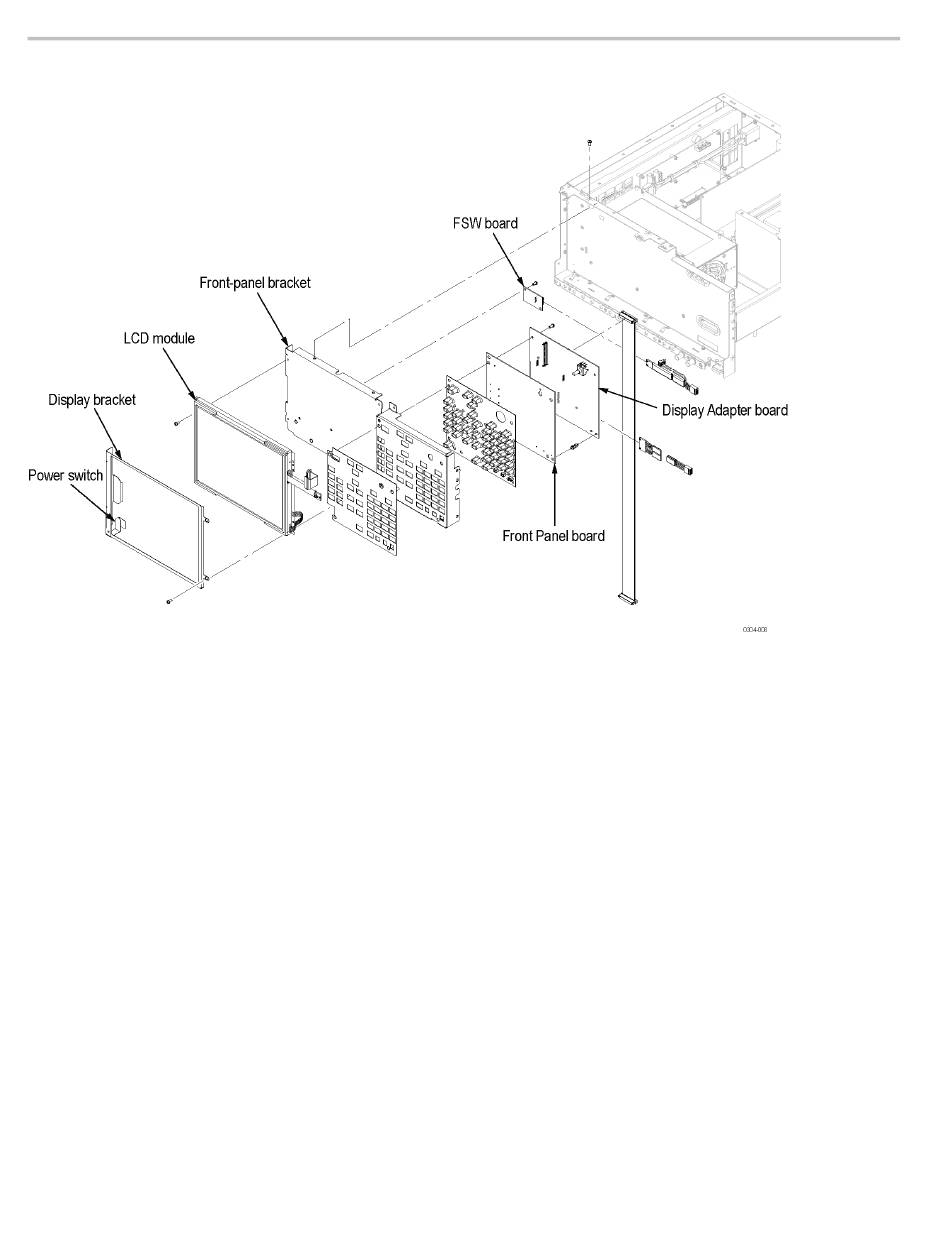

Figure 4-7: Disassembly of front-panel assembly (AWG7000C Series)

Front-Panel Assembly
(AWG7000B Series)
4–18
You need a screwdriver with a T-15 Torx tip (items 1 and 2).
Removal. To remove the front-panel assembly, follow these steps: (See
Figure 4-8 on page 4-20.)
1. Remove the cosmetic covers, front-trim unit, and EMI covers.
2. Remove the LCDA board and Front Panel board:
a. Remove the four screws securing the LCDA board and Front Panel board
to the front-panel bracket.
b. Remove the cables from J110, J160, and J200.
c. Lift the boards away from the front-panel bracket.
