Removal and Installation Procedures
AWG12G 1 CH Board You need a screwdriver with a T-15 Torx tip and pliers (items 1, 2, and 8).
(AWG7000B Series Only)
Removal. To remove the AWG12G 1 channel board, follow these steps: (See
Figure 4-19 on page 4-40.)
1. Remove the handle unit, snaps, cosmetic covers, front-trim unit, EMI covers,
CLK12G module, and relay unit (for Option 02).
2. Orient the instrument so that the top is on the work surface.
3. Use a wire cutter to remove the two cable ties.

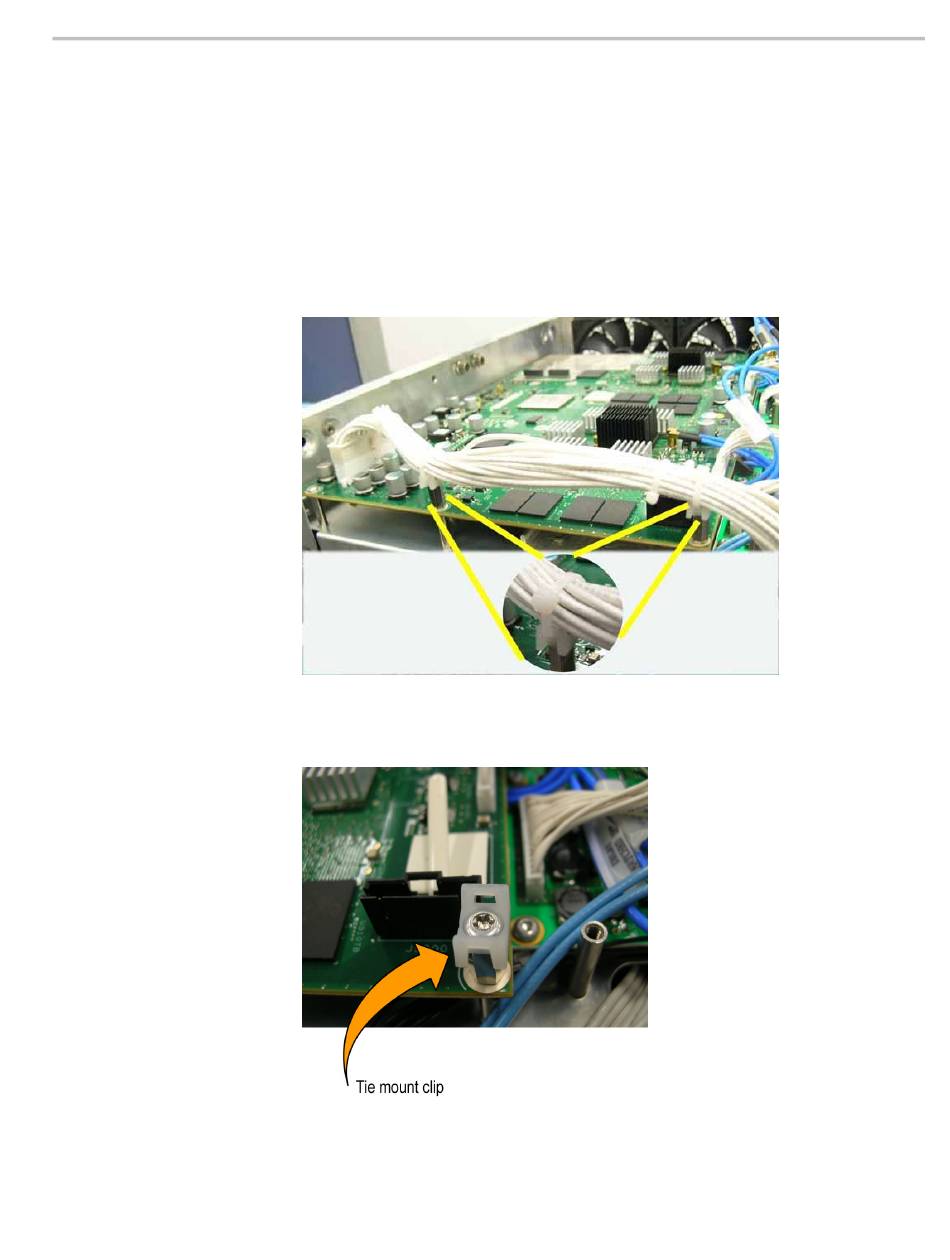

Figure 4-23: Cable ties

4. Remove the two screws, and then remove the tie mount clips.

Figure 4-24: Tie mount clip

AWG7000B and AWG7000C Series Service Manual 4–45
