Table 4-6: Diagnostics error codes

Error code Error log message
120000000 HwDiagAwgRegister AwgController address_0x21
register diag. Fail expected data=xxxx actual data=xxxx
120000001 HwDiagAwgRegister AwgController address_0x23
register diag. Fail expected data=xxxx actual data=xxxx
120000002 HwDiagAwgRegister AwgController address_0x30
register diag. Fail expected data=xxxx actual data=xxxx
120000003
HwDiagAwgRegister AwgController address_0x40
register diag. Fail expected data=xxxx actual data=xxxx
120000004 HwDiagAwgRegister AwgController address_0x41
register diag. Fail expected data=xxxx actual data=xxxx
120000005 HwDiagAwgRegister AwgController address_0x42
register diag. Fail expected data=xxxx actual data=xxxx
120000006 HwDiagAwgRegister AwgController address_0x50
register diag. Fail expected data=xxxx actual data=xxxx
120000007
HwDiagAwgRegister Ch1 MemoryController-N
Communication Fail expected data=xxxx actual
data=xxxx -N:PLD no
4–58

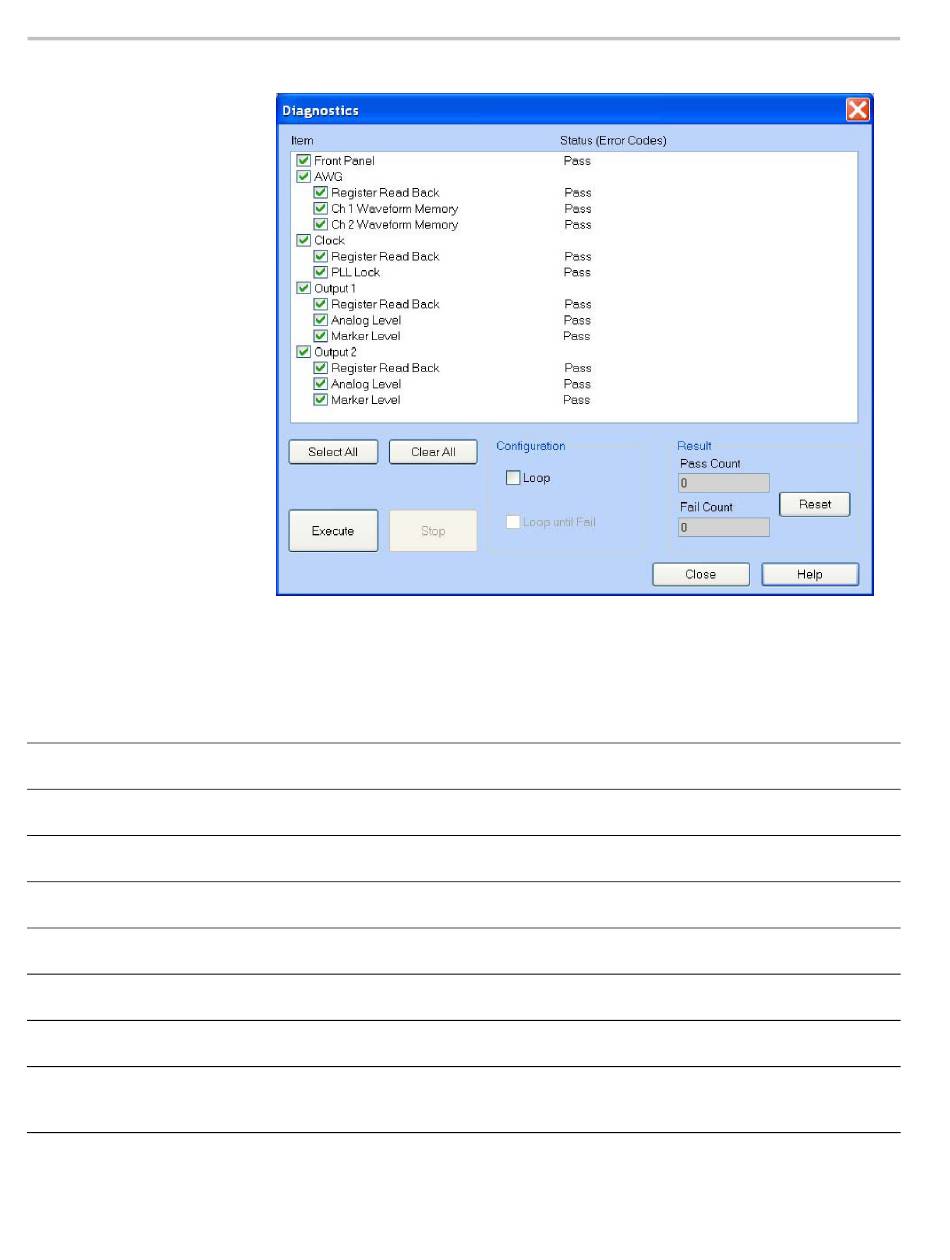

Figure 4-29: Diagnostics dialog box
Possible defect
on board Note
AWG12G AWG12G: U1000
AWG12G AWG12G: U1000
AWG12G AWG12G: U1000
AWG12G AWG12G: U1000
AWG12G AWG12G: U1000
AWG12G AWG12G: U1000
AWG12G AWG12G: U1000
AWG12G: N=0 -> U400PA N=1 -> U400QA
U1000 N=2 -> U400RA N=3 -> U400SA
N=4 -> U400TA
