Adjustment Procedures

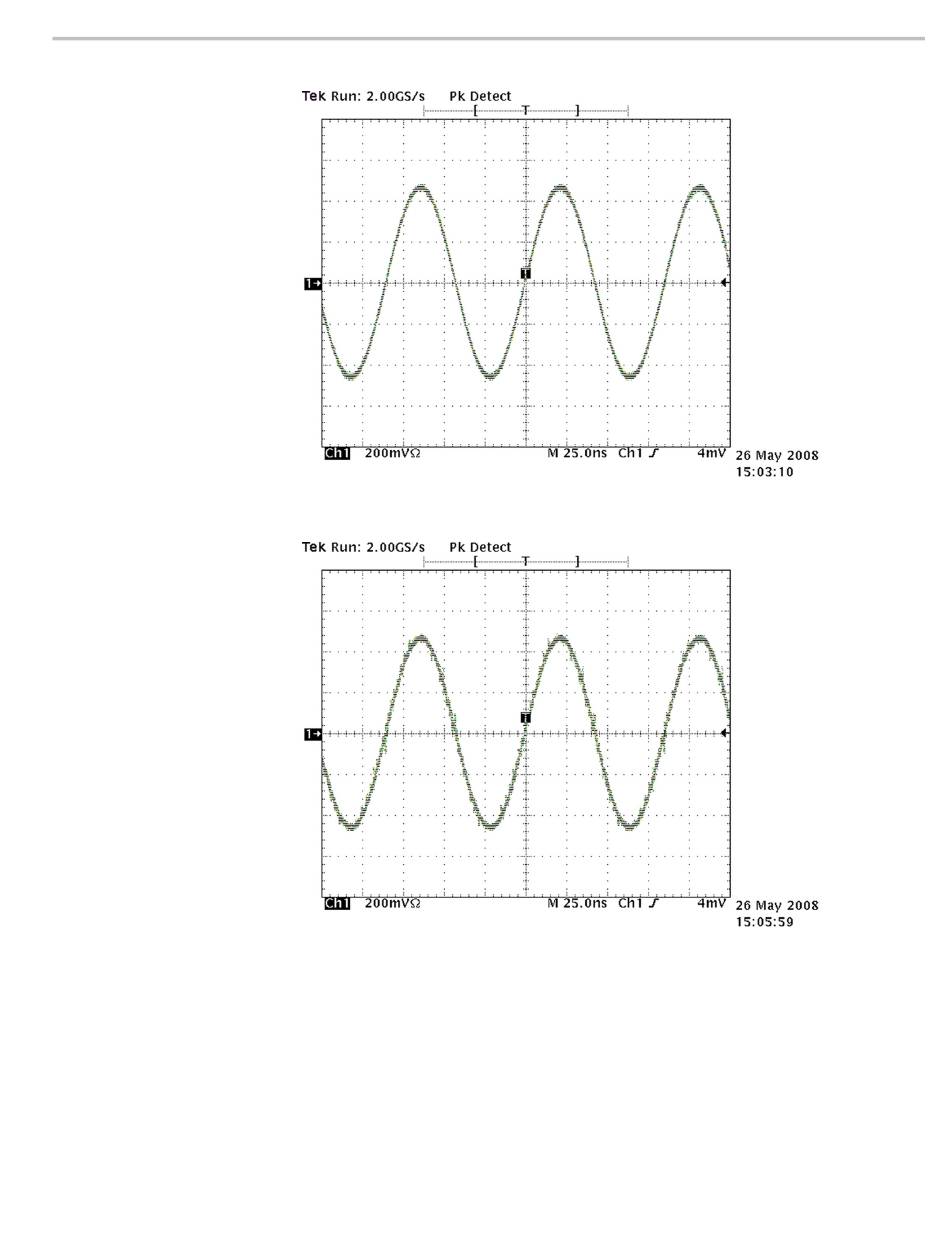

Figure 3-10: Example of good margin and proper timing

Figure 3-11: Example of bad waveform in magic timing margin check

6. Click Close in the Magic Timing Margin Check dialog box.
7. Click Exit in the AwgServiceUI window.
This completes the adjustment procedures. Disconnect the equipment from the
instrument.
