Disconnecting and Connecting the SMP Cable

AWG7000B and AWG7000C Series Service Manual
Table 4-3: Tools required for module removal and reinstall (cont.)
Item # Name
7. 3/16 inch open-end
wrench
8. Pliers
9. 5/16 inch torque
wrench (8.0 in-lbs)
10. Angle-Tip Tweezers
11. Wire cutter
When you disconnect or connect the SMP cable, use the pliers specified in the
required equipment table and keep the connector vertical. If excessive sideways
force is applied, the connector is damaged.

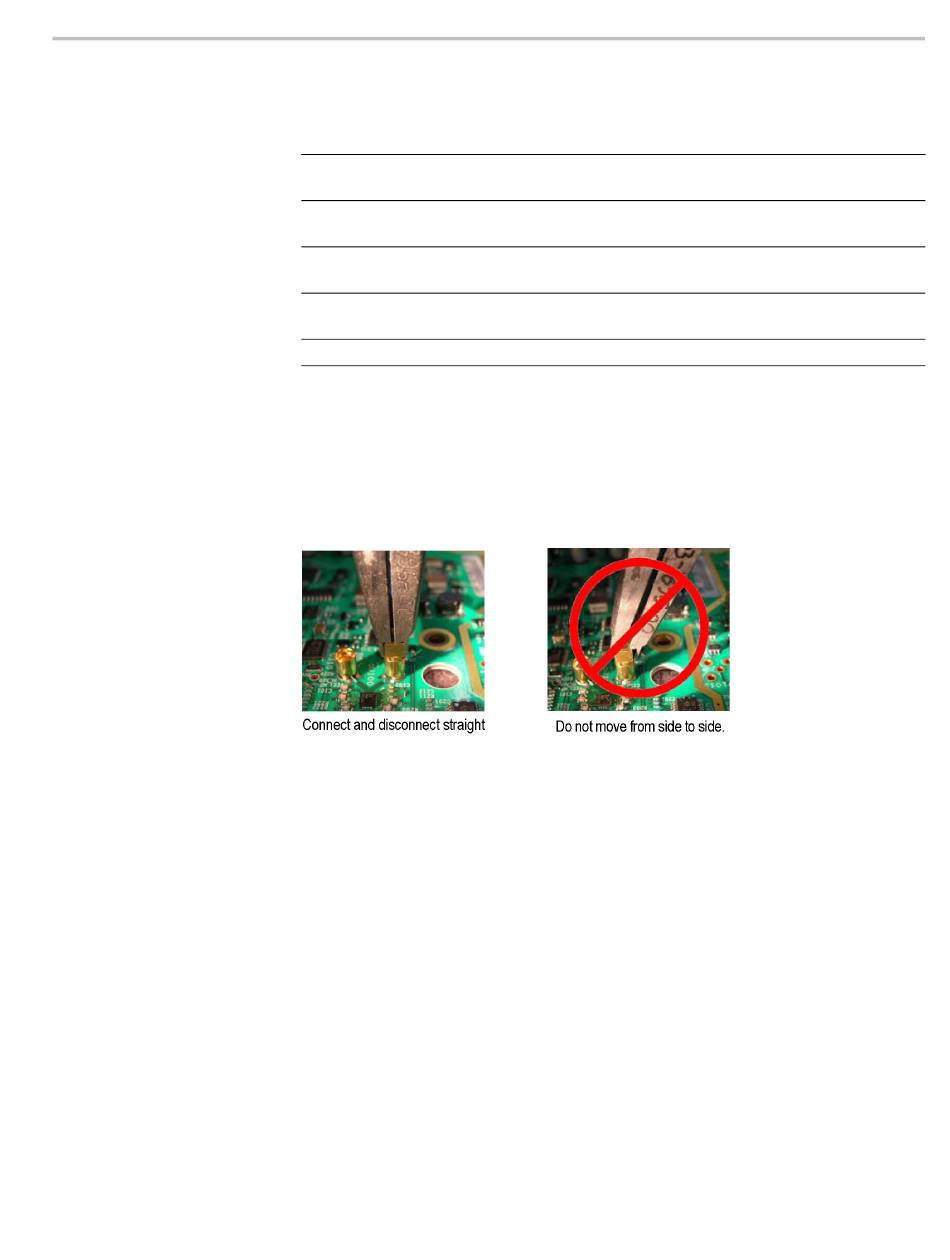

Figure 4-3: Disconnecting and connecting the SMP cable

Removal and Installation Procedures
Description
Used to remove nut posts
Pliers modified for use in SMP
cable insertion/extraction
Used to remove SMA cables
Used to remove the front-panel
knob
Used to remove cable ties
General Tool #
Standard tool
003-1895-00
Standard tool
Standard tool
4–9
