Calibration Error; Table 4-7: Calibration Error Codes - Tektronix AWG7000B Series Service Manual

Troubleshooting

Calibration Error

Table 4-7: Calibration error codes

Error code Error log message
200XP0001 Analog Level Calibration CHX positive (negative) 5db
attenuator failed. expected 0.56234, actual xxxxx
200XP0002
Analog Level Calibration CHX positive (negative) 5db
attenuator failed. expected 0.56234, actual xxxxx
200XP0003 Analog Level Calibration CHX positive (negative) 10db
attenuator failed. expected 0.31627, actual xxxxx
200XP0004 Analog Level Calibration CHX positive (negative) 20db
attenuator failed. expected 0.100000, actual xxxxx
200XP0005 Analog Level Calibration CHX positive (negative)
50mhz filter failed. expected 0.992, actual xxxxx
200XP0006
Analog Level Calibration CHX positive (negative)
200mhz filter failed. expected 0.998, actual xxxxx
200XP0007 Analog Level Calibration CHX positive (negative)
amplitude cal failed. expected 2.07, actual xxxxx
200XP0008 Analog Level Calibration CHX positive (negative) hfd
dac reference failed.
200XP0009 Analog Level Calibration CHX positive (negative) output
offset failed. expected 0.50V(0.0V), actual xxxxx
200XP0010 Analog Level Calibration CHX internal offset 8bit failed.
expected 0.0mV, actual xxxxxmV
4–64
To run the instrument calibration, do these steps:
1. Turn off all other applications.
2. From the menu bar, select System and then select Calibration...; the
Calibration dialog box appears.

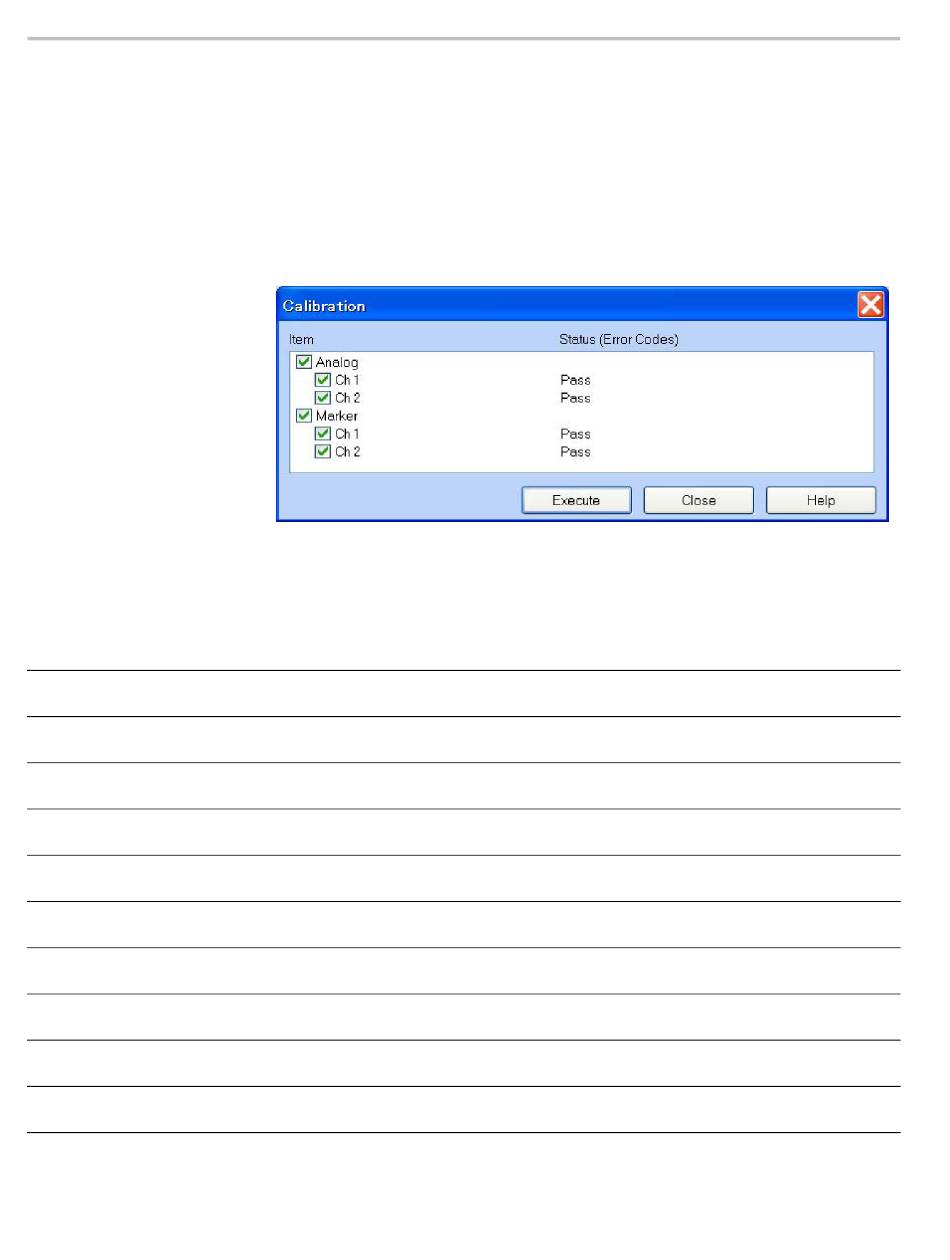

Figure 4-30: Calibration dialog box
Possible defect
on board Note
OUT10G OUT10G: K610, K710
OUT10G OUT10G: K610, K710
OUT10G OUT10G: K620, K720
OUT10G OUT10G: K630, K730
OUT10G OUT10G: K660, K760
OUT10G OUT10G: K670, K770
OUT10G OUT10G: U800
OUT10G AWG10G: U100A/B, U150A/B
OUT10G OUT10G: U900, U910, U920
OUT10G AWG10G: U100A/B, U150A/B
