IP CAMERA USER MANUAL

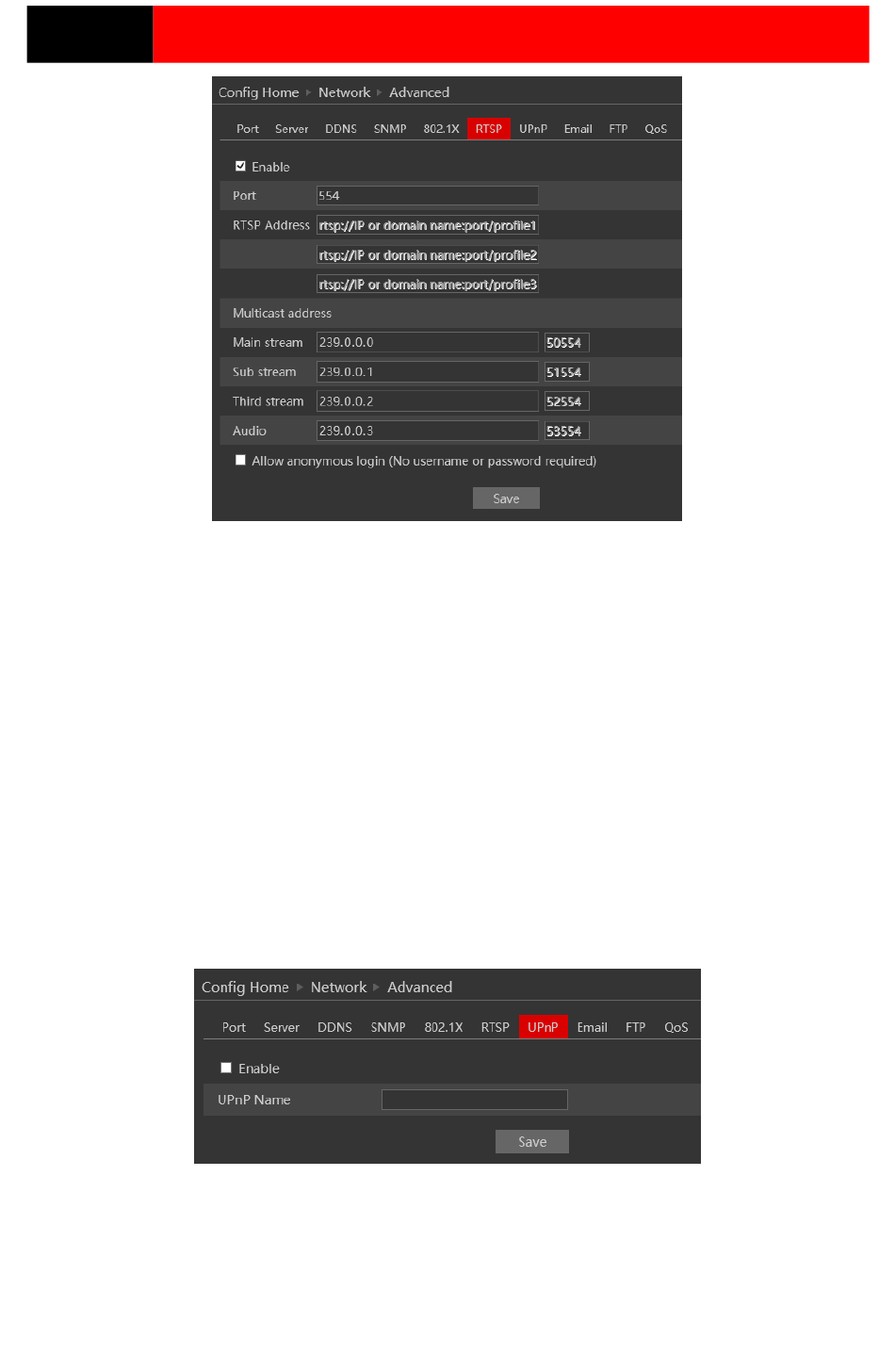

1. Enable the RTSP if required.
2. RTSP Port: Access Port of the streaming media. The default port is 554.
3. RTSP Address: each of the streams have a unique RTSP address. Input the desired address
into your RTSP player.
Notice that the camera also support multicast addresses that can be used as well for
supporting players.
4. Enabling "Allow anonymous login" will authorize RTSP connection without the need for
username/password.
5. Click "Save" to confirm and save settings.

4.6.8 UPnP

Go to "Network"→ "UPnP" interface as shown below.
Select "Enable UPnP" and then input friendly name.
Then double-click "Network" icon on the desktop of the PC to see an icon with the name and
IP address of the camera. You may quickly access the device by double-clicking this icon.
