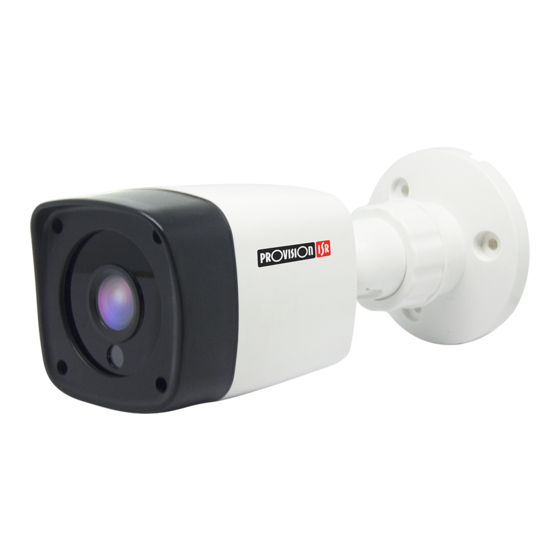

USER MANUAL
720P Basic-AHD Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I1-380AHDB36 and is the answer not in the manual?

Questions and answers

Related Manuals for Provision ISR I1-380AHDB36

Summary of Contents for Provision ISR I1-380AHDB36

  • Page 1 USER MANUAL 720P Basic-AHD Series...

  • Page 2: Table Of Contents

    Contents CAUTIONS Product Introduction Camera Introduction Product Features Product Installation General Notes Installation Tools and Information Installation Method Connections Technical Specification...
  • Page 3 1 CAUTIONS 6. In order to make the camera work smoothly and obtain asatisfactory image, the power cord and video connection can not be too long, otherwise the increase 1. To reduce the risk of electric shock, do not open the of line loss will lead to the inadequate magnitude of the machine and maintain by yourself, please consult a operating voltage of the camera or video signal...

  • Page 4: Product Introduction

    2 Product Introduction 3 Product Installation 2.1 Camera Introduction 3.1 General Notes PROVISION-ISR’s new series of cameras are adopted 1. Make sure the unit is powered off before installation. CMOS image sensor with high performance, which provides mega pixel resolution and supports HD video. 2.

  • Page 5: Installation Tools And Information

    3.2 Installation Tools and Information 3. Mounting the camera Prepare the required engineering data and instructions. a. Dome Camera Before installation please prepare the following tools and instrumentation: A straight or a Phillips-head Adjust the lens position and make it aim at the monitoring screwdriver, multi-meter, scissors, needle nose pliers, points and present a clear picture, manually fix lens tape measure, pencil and so on.

  • Page 6: Connections

    4 Specifications: 3.4 Connection Connection as shown in the figure below Basic-AHD camera (720P) DI-380AHDB36 / I1-380AHDB36 Model DI-380AHDB36 I1-380AHDB36 Image Sensor 1/3” 1.3M Prime Sensor CMOS Effective Pixels 1296(H) ×964 (V) Scanning System Internal synchronization Resolution Digital:1280×720, Analog:960H Min. Illumination COLOR: 0.1Lux@(F1.2, AGC ON), B&W: 0.01Lux@(F1.2, AGC ON)
